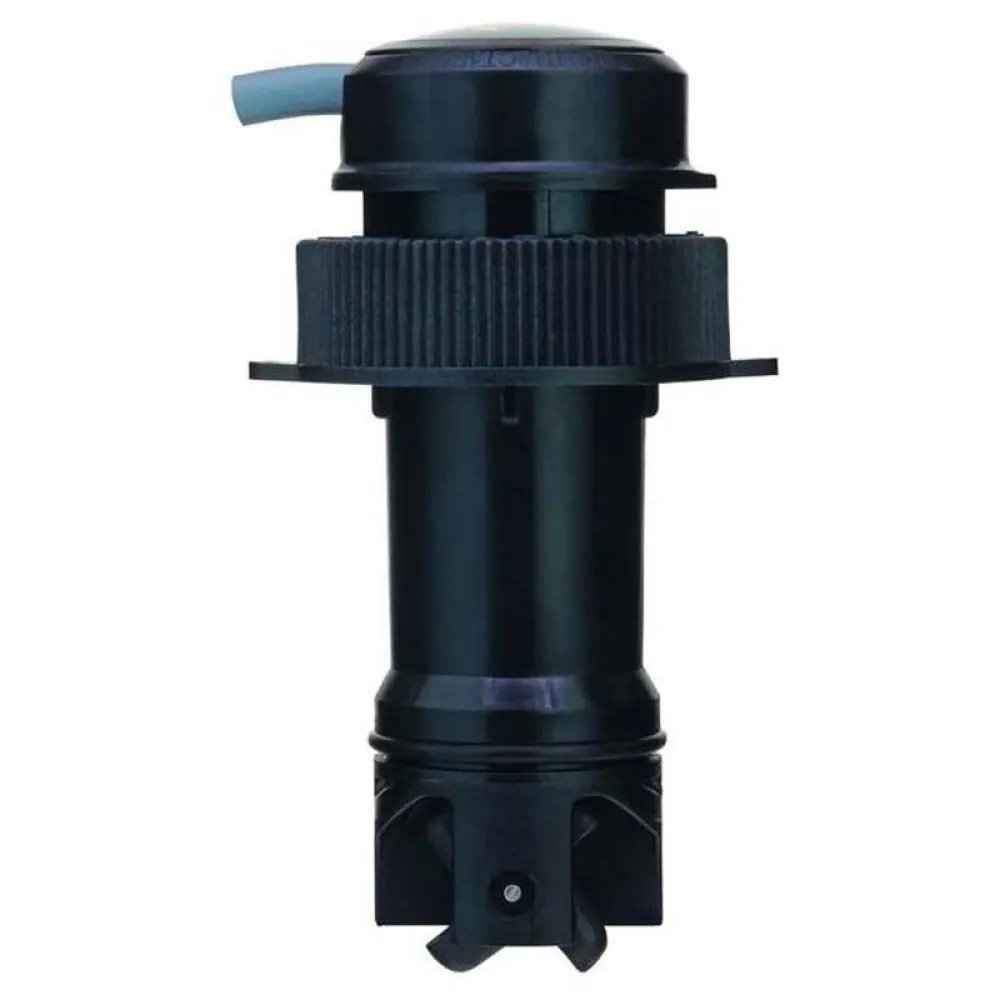

Navico DST810 tri function probe

NAVICO DST810 Smart Thru-Hull Multisensor Transducer

Elevate your marine instrumentation with the NAVICO DST810, the next-generation smart Thru-hull transducer that delivers a comprehensive suite of critical on-water data directly to your NAVICO multifunction display and instruments. This all-in-one probe is engineered for sailors and powerboaters who demand precision, reliability, and cutting-edge convenience. The DST810 goes beyond the traditional tri-function capabilities, providing exceptionally accurate depth, speed-through-water, and temperature readings in a single, compact housing. It represents a significant leap forward in marine sensor technology, ensuring you have the most responsive and accurate information at your fingertips.

Unlock Unprecedented Accuracy and Performance

The core of the DST810´s superior performance is its 5 Hz data output rate. By providing depth and speed updates five times per second, it delivers smoother, more life-like data on your display. This is especially noticeable during turns or when navigating in dynamic sea conditions, eliminating the lag associated with older sensors and giving you a true, real-time picture of what´s happening beneath your hull.

Furthermore, the DST810 features an integrated attitude sensor that measures heel/roll and pitch/trim. This groundbreaking feature allows for compensated depth readings. As your boat heels, a traditional transducer´s beam is angled, resulting in an inaccurate depth measurement. The DST810 corrects for this, providing you with the true depth directly below the keel, a crucial advantage for racers seeking the perfect trim and cruisers navigating shallow waters with confidence.

Effortless Calibration with Bluetooth Connectivity

Say goodbye to complex calibration procedures performed through your multifunction display. The NAVICO DST810 incorporates Bluetooth Low Energy (BLE) technology, allowing it to connect wirelessly to the Airmar CAST™ app on your smartphone or tablet. From the app, you can easily and intuitively calibrate the speed sensor for ultimate accuracy, configure NMEA 2000 settings, and perform firmware updates. This simple, wireless interface makes commissioning and fine-tuning your sensor faster and more convenient than ever before.

Main Features:

* All-in-One Sensing: Combines precise depth, speed-through-water, and water temperature measurement in a single unit.
* High-Speed Data Output: A 5 Hz NMEA 2000 output provides exceptionally smooth and responsive data for both speed and depth.
* Integrated Attitude Sensor: Measures heel and trim to provide compensated, true depth readings for enhanced accuracy.
* Wireless Connectivity: Features Bluetooth Low Energy (BLE) for simple, wireless connection to the Airmar CAST™ app.
* Simple Calibration: The CAST™ app enables easy and accurate speed calibration and sensor configuration directly from your mobile device.
* Seamless Integration: Connects directly to any NMEA 2000 network for plug-and-play compatibility with NAVICO, Simrad, Lowrance, and B&G systems.
* Retrofit Ready: Designed with a standard 2-inch (51 mm) Thru-hull housing, making it an easy upgrade from older DST800 models.

Technical Specifications:

* Function: Depth, Speed, Temperature, Heel/Roll, Pitch/Trim
* Installation Type: Thru-hull
* Housing Diameter: 2 inches (51 mm)
* Depth Frequency: 235 kHz
* Depth Range: Up to 100 m (330 ft)
* Speed Range: Up to 45 knots (52 MPH)
* Data Output Protocol: NMEA 2000
* Data Update Rate: 5 Hz (5 times per second)
* Hull Deadrise: Up to 22°
* Power: 9 to 16 VDC via NMEA 2000 network
* Current Draw: <200 mA
* NMEA 2000 LEN: 4
