Peplink Max S antenna

PEPLINK MAX S Antenna: Robust, High-Performance Connectivity for Any Environment

Experience unbreakable connectivity and superior signal strength with the PEPLINK MAX S Antenna, the ultimate solution for demanding mobile and outdoor applications. Designed for professionals who cannot afford to lose their connection, this all-in-one antenna system ensures reliable, high-speed data transfer for your fleet vehicles, marine vessels, and remote deployments. Say goodbye to dropped signals and frustratingly slow internet; the MAX S Antenna is engineered to capture the strongest possible cellular and Wi-Fi signals, keeping you online when it matters most.

The core benefit of the MAX S Antenna lies in its integrated, multi-functional design. Instead of drilling multiple holes and managing a web of cables for separate antennas, this single, low-profile unit houses everything you need for comprehensive connectivity. This simplifies installation dramatically, reduces potential leak points, and maintains the aesthetic integrity of your vehicle or structure. Built to withstand the harshest conditions, its rugged, IP67-rated enclosure is fully waterproof, dustproof, and UV-stable, ensuring long-term performance in extreme heat, cold, and moisture.

Key Benefits:

* Maximized Signal Reception: Engineered with high-gain elements to significantly boost cellular (5G/LTE) and Wi-Fi signal strength and quality, providing faster speeds and a more stable connection, even in remote or low-signal areas.
* All-in-One Simplicity: Combines multiple antennas into a single, robust housing, streamlining installation, reducing clutter, and minimizing the physical footprint on your vehicle, vessel, or building.
* Extreme Durability: With an IP67 rating, this antenna is fully protected against dust and water ingress. Its rugged construction is designed to endure shock, vibration, and extreme temperatures, making it ideal for mobile and marine environments.
* Future-Proof Performance: Supporting a wide range of frequencies, including those for modern 5G networks, the MAX S Antenna is a long-term investment that ensures compatibility with current and next-generation cellular technologies.

Main Features:

* Multi-element array for 5G/LTE Cellular, Wi-Fi, and GPS/GNSS.

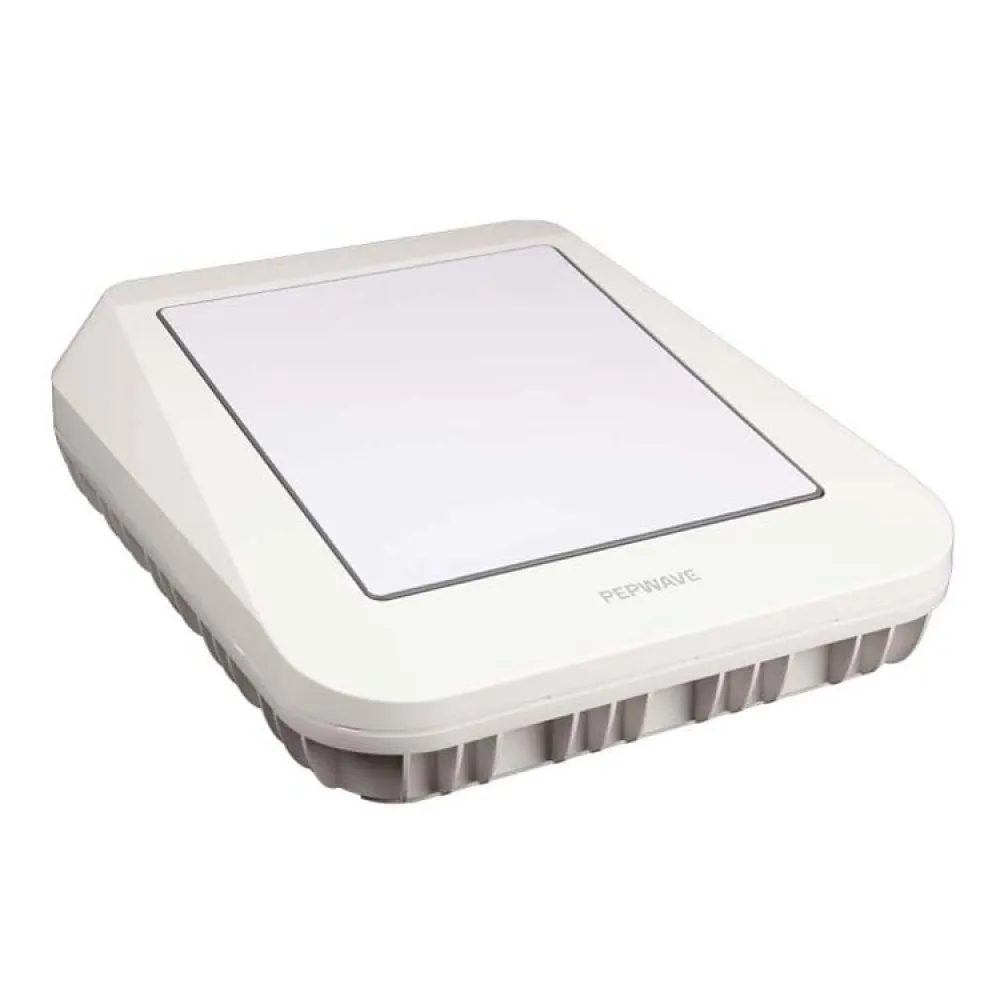

* Robust and compact low-profile housing.
* IP67-rated waterproof and dust-tight enclosure.

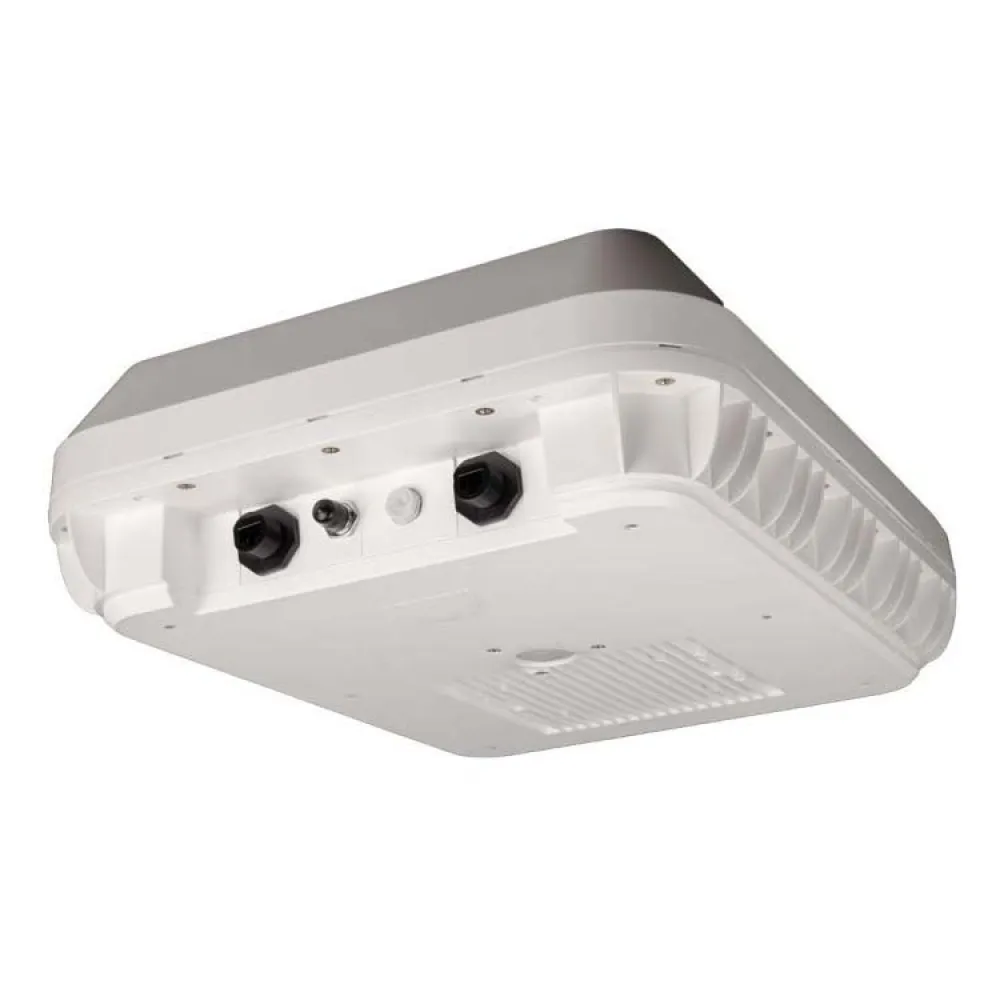

* Secure and simple through-hole mounting design.
* Wideband operation for global cellular band coverage.
* High-performance, low-loss cables for maximum signal integrity.

Attribute: Antennas

The PEPLINK MAX S unit is a sophisticated multi-antenna system. Within its singular dome, it integrates multiple high-performance antennas specifically tuned for their purpose. This includes a powerful MIMO (Multiple-Input Multiple-Output) array for cellular frequencies, ensuring multiple data streams for increased throughput and reliability. It also contains dedicated antennas for dual-band Wi-Fi to extend your local network reach and an active GPS/GNSS antenna for precise location tracking.
---
Technical Specifications

Cellular Antennas (5G/LTE):

* Number of Antennas: 4 (4x4 MIMO)
* Frequency Range: 600-6000 MHz
* Impedance: 50 Ohm

Wi-Fi Antennas:

* Number of Antennas: 2 or 3 depending on model
* Frequency Range: 2400-2500 MHz & 5000-6000 MHz
* Peak Gain: 5.0 dBi (2.4GHz), 7.0 dBi (5GHz)
* Impedance: 50 Ohm

GPS/GNSS Antenna:

* Frequency: 1561-1602 MHz
* Gain (LNA): 28 dB

Mechanical & Environmental:

* Enclosure Material: UV-Stable Plastic
* Environmental Rating: IP67
* Dimensions (Diameter x Height): 7.72 in x 2.2 in (196 mm x 56 mm)

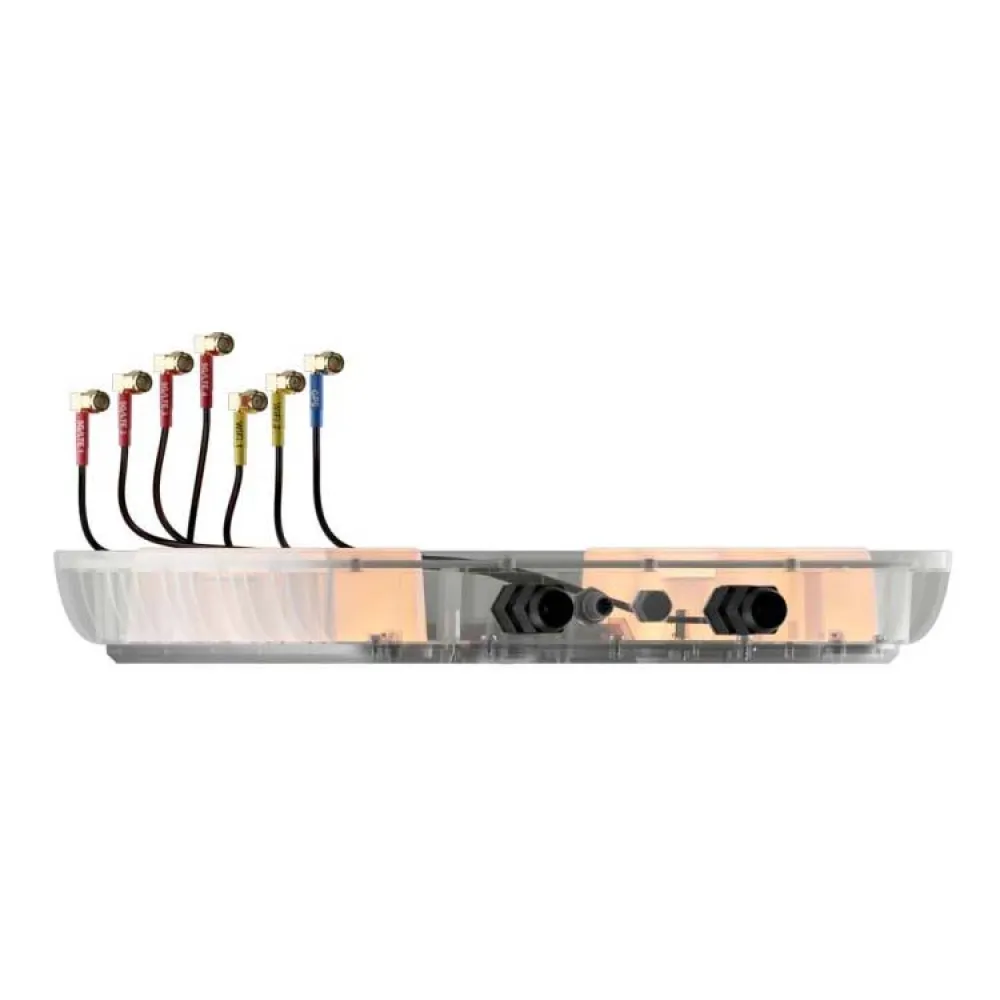

* Cable Connectors: SMA (Male) for Cellular/GPS; RP-SMA (Male) for Wi-Fi
