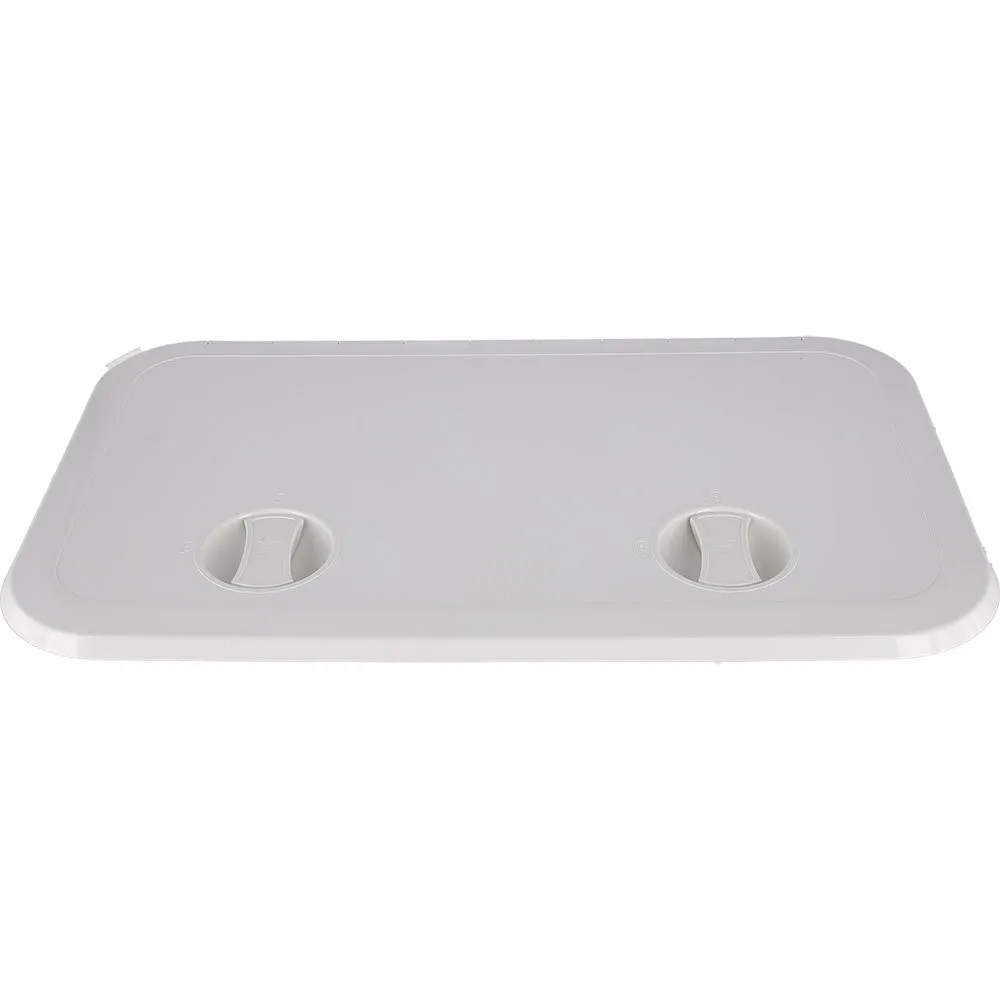

Plastimo Access Top Hatch

Developed by the Plastimo R & D, a range of hatches which combines easy installation for the boatbuilder and optimised space for the crew´s comfort.

Optional locksTake-apart hatch top, ideal when height does not allow full vertical opening:

with the specific hinge design, a 5° opening angle is enough to allow the hatch top to separate from the lower frame and provide a wide open access.

All hatches are supplied with a set of 2 hinges offering two mounting possibilities:

classic 180° opening or take-down hatch.

Hatch top easily removed while deck frame remains intact on deck.

Exclusive:

the honeycomb structure inside the hatch provides optimum rigidity.

Supports a 130 kg person with no distortion or mechanical strain.

With storage boxWith optional locking kitConstruction in high grade ASA for durability and resistance:

Impervious to UV.

Excellent mechanical resistance, enhanced by the honeycomb structure inside the hatch.

Walkable:

resists 130 kg load with no distortion at all.

Opening through 180°.

Deck or wall mount.

EPDM rubber gasket for perfect watertightness.

Supplied with a set of 2 hinges allowing different installation alternatives:

classic articulated hinge opening through 180°, or specific hinge making the hatch removable.

Description:

Hatchcolor:

WhiteA x B:

315 x 440 mmC:

231 mmD:

356 mmE:

241 mmF:

366 mmCut-out L x l - R:

247 x 372 - 42 mmHandle(s):

x 2OptionLocking kit:

65388.
