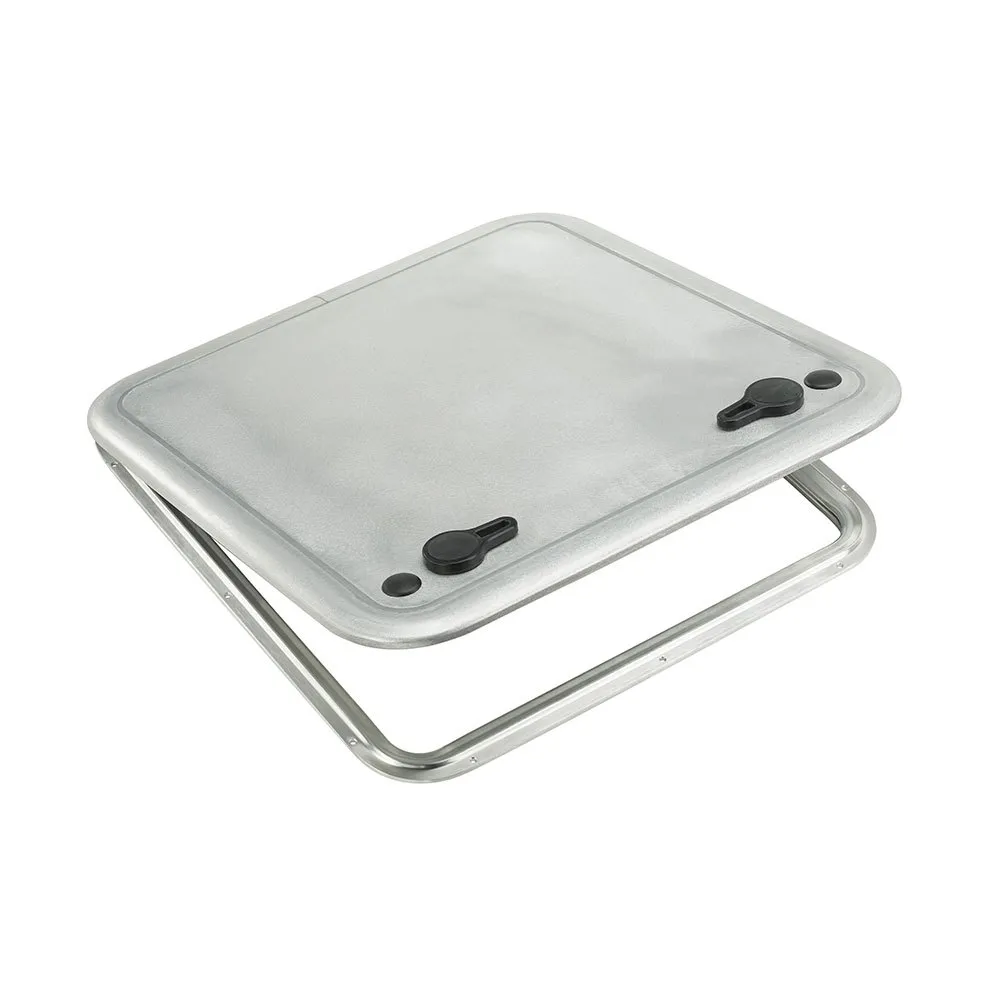

Plastimo aluminium T40 Hatch

Building on the success of its satin aluminium frame and acrylic glass hatches, Plastimo extends its range with 100 % aluminium models -with solid no see-through cover. Constantly responsive to boatbuilder´s needs, the Plastimo R&D has developed a specific design that replaces the see-through acrylic glass by a solid aluminium panel, with the same easy installation that is so popular with OEM partners. This solid aluminium hatch, fully walkable version is particularly suitable for high traffic deck and designs where sturdiness prevails over light inside. Deck hugging design. Anodised aluminium or raw aluminium finish ready-to-paint and create a homogeneous overall deck. Opening device: The ergonomic shape of the handles allows comfortable space for an excellent prehension. They feature a lock catch which prevents breaking in from outside. No need to fit any other locking system from outside.

All models are equipped with adjustable stay. Adjustable opening is as simple as releasing the stay to obtain the right position. Navigation: Coastal or blue water cruising.


Features:
- Deck-hugging profile, opens outwards with stays Lid: Extrusion Lower frame: Extrusion Assembly: With screws CE areas for location onboard: II, III & IV All categories Areas on board as per 94/25 EC standard: Zone I: hull above waterline Zone II: deck, coach roof, cockpit and transom Zone IIb: hull sections other than area I Zone III : superstructure, deck and cockpit Zone IV: cockpit and deck, rear sides of super structure.
- Aluminium invisible hinges.
- Inside lock catch system.


Specifications:

- Opening possible up to: 180°.
- External dimensions: 481 x 481 mm / 18.9 x 18.9 in.
- Internal dimensions: 419 x 419 mm / 16,5 x 16,5 in.
- Opening width: 419 x 419 mm
- Material: Aluminium
- Weight: 5.8 kg
