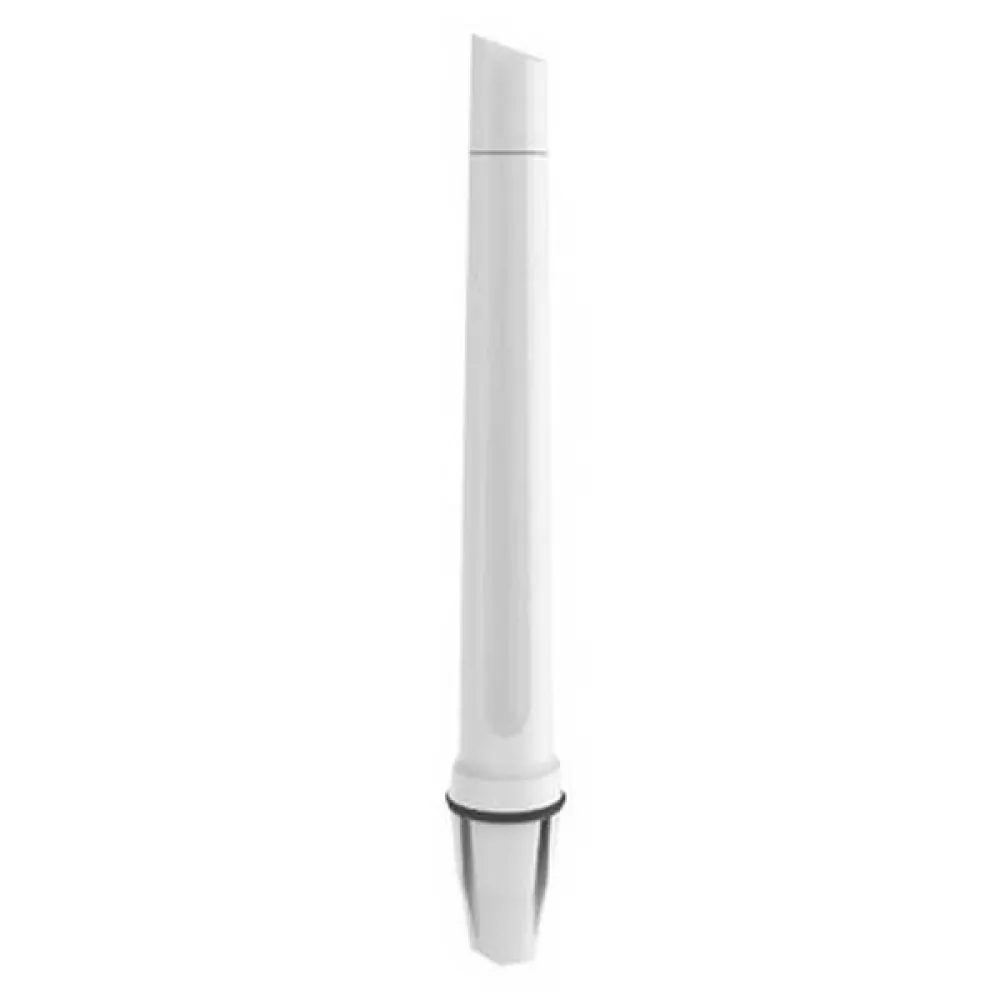

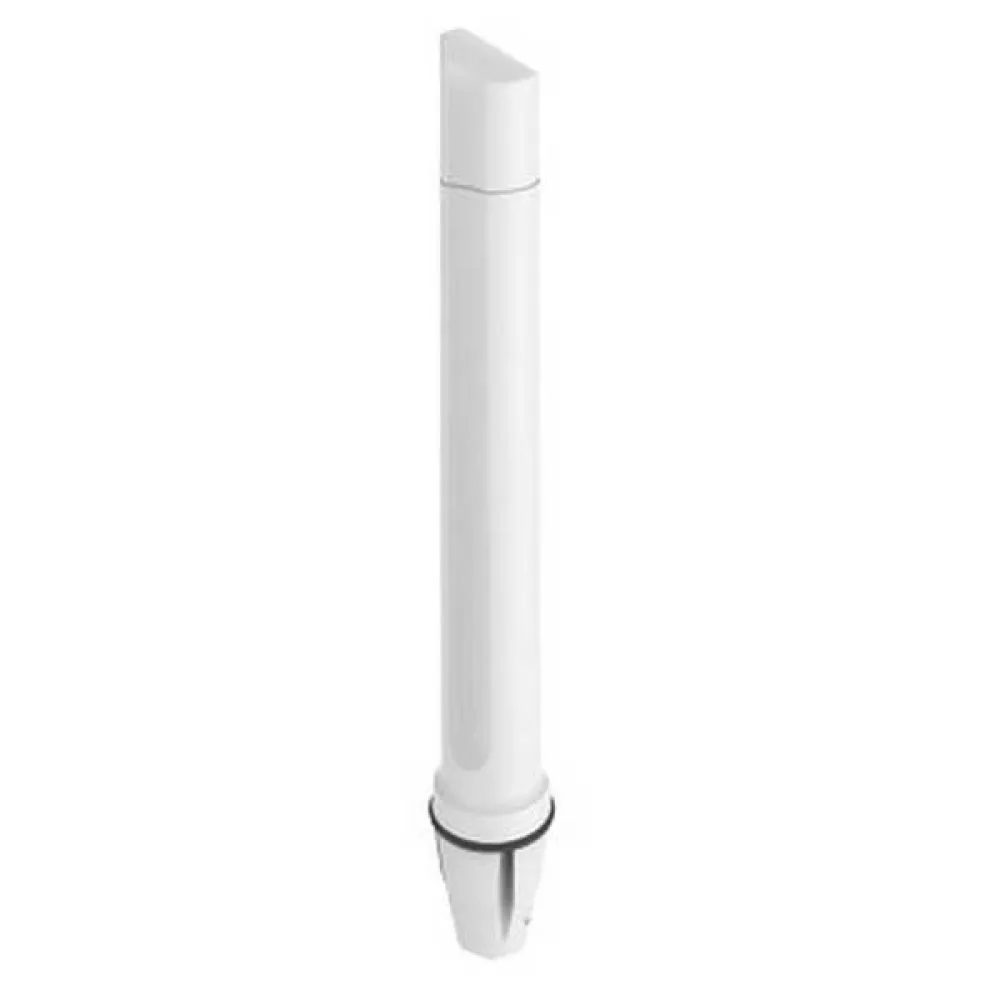

Poynting OMNI-496 V1 antenna

POYNTING OMNI-496 V1 | Ultra-Wideband 5G/LTE Marine & Coastal Antenna

Experience unparalleled connectivity on the water and in the most demanding environments with the POYNTING OMNI-496 V1. This high-performance, omni-directional antenna is engineered to provide a robust and reliable cellular connection for marine, coastal, and industrial applications. Designed to be future-proof, the OMNI-496 covers all contemporary 4G/LTE frequency bands and is fully prepared for the next generation of 5G networks, including the 3.5 GHz bands. Whether you are outfitting a luxury yacht, a commercial vessel, or a remote industrial site, this antenna ensures you maintain a stable, high-speed data link for communication, navigation, and IoT systems.

The OMNI-496 V1 stands out for its exceptional performance and rugged construction. Its omni-directional design simplifies installation by eliminating the need for precise pointing, making it ideal for moving vessels and vehicles. It delivers consistent, high gain across its entire ultra-wide frequency range, ensuring a strong signal lock and improved data throughput even in areas with weak cellular coverage. Built to withstand the harshest conditions, the antenna features a marine-grade, IP68-rated enclosure that is completely protected against dust ingress and long-term water immersion, making it the ultimate solution for any maritime deployment.

Key Benefits:

* Future-Proof Wideband Coverage: With an operational frequency range from 617 MHz to 3800 MHz, this single antenna solution covers all current LTE bands and the new 5G/CBRS bands, safeguarding your investment for future network upgrades.
* Superior RF Performance: Achieves exceptional gain and consistent performance across all bands, resulting in a more stable connection, higher data speeds, and improved link reliability for critical communications.
* Unmatched Durability: Engineered for extreme environments with an IP68 weatherproof and dustproof rating, an IK08 impact resistance rating, and a UV-stable, saltwater-resistant radome.
* Simplified Installation: The omni-directional radiation pattern provides excellent performance regardless of orientation, while the standard 1-inch (14 TPI) marine mount ensures compatibility with a wide range of mounting hardware.

Main Features:

* Ultra-wideband frequency coverage from 617-3800 MHz
* High-performance omni-directional radiation pattern
* Marine-grade, robust, and weatherproof (IP68) design
* UV and saltwater protected for harsh coastal and sea environments
* IK08 rated for high impact resistance
* Standard 1”–14 TPI marine mount compatibility
* 5G Ready; includes 3.2 GHz to 3.8 GHz CBRS bands

Technical Specifications

Attribute: Antennas

Electrical Specifications:
* Frequency Bands: 617-960 MHz | 1710-2700 MHz | 3400-3800 MHz
* Gain (Max): 3.5 dBi @ 617-960 MHz | 6.2 dBi @ 1710-2700 MHz | 5.5 dBi @ 3400-3800 MHz
* VSWR: < 2.5:1 over 95% of the band
* Feed Power Handling: 10 W
* Input Impedance: 50 Ohm (nominal)
* Polarisation: Linear Vertical

Mechanical & Environmental Specifications:
* Product Dimensions: Ø 75 mm x 203 mm
* Packaged Dimensions: 270 mm x 85 mm x 80 mm
* Weight: 0.32 kg
* Packaged Weight: 0.43 kg
* Radome Material: UV Stable ASA
* Mounting: Standard 1" (14 TPI) female thread
* Operating Temperature: -40°C to +80°C
* Environmental Conditions: Outdoor/Indoor
* Water Ingress Protection Rating: IP68
* Impact Resistance: IK08
* Salt Spray: MIL-STD 810G / ASTM B117
* Flammability Rating: UL 94-HB

Cable & Connector:
* Cable: 2m HDF-195
* Connector: N-Type (Female)
