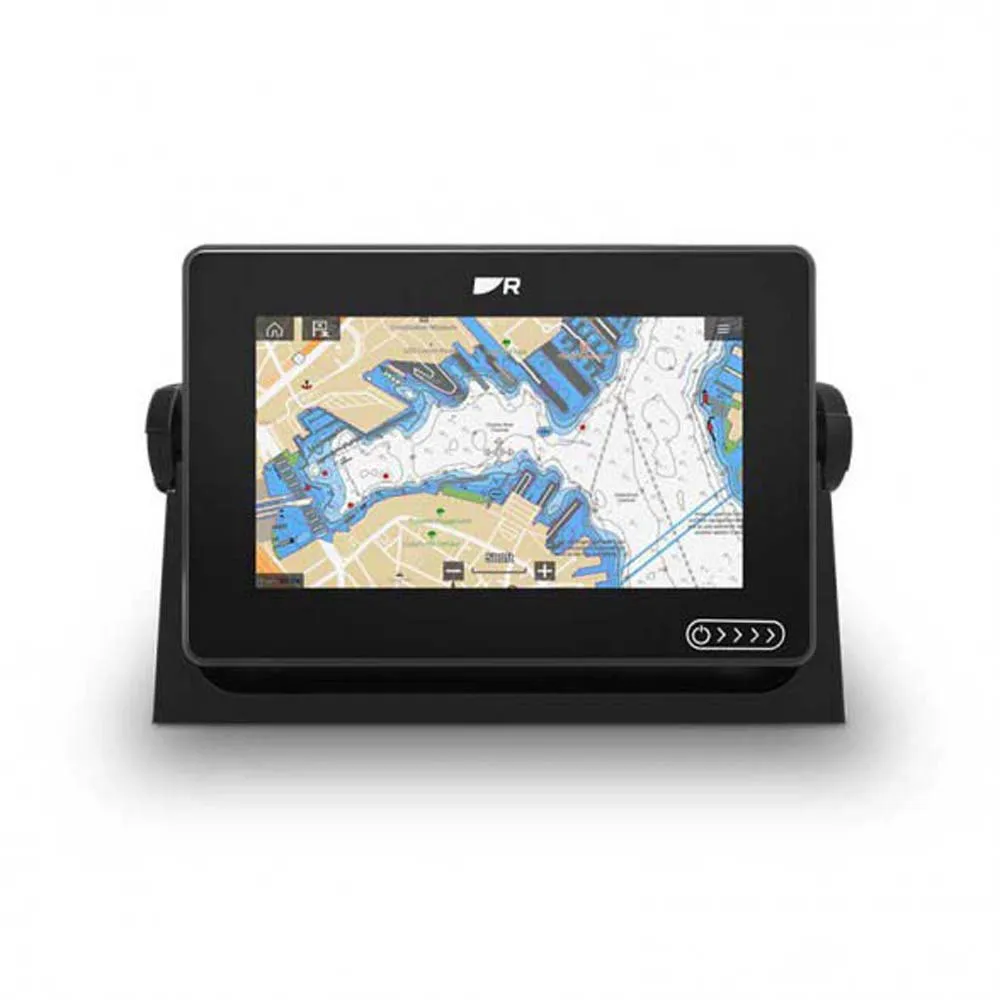

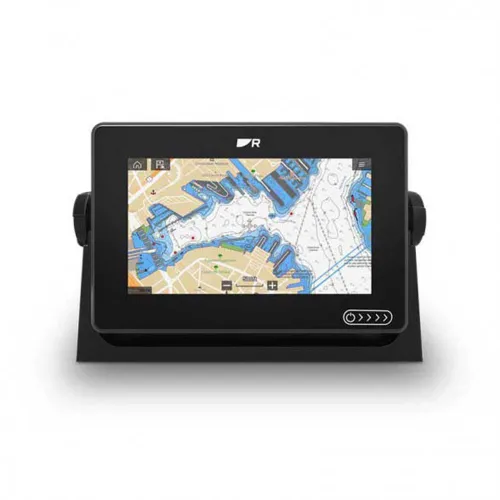

Raymarine Axiom+7 RV 7´´ plotter with transducer

The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimised for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.


Specifications:

General:
- Display Size: 7.0 inch High Density IPS
- Display Resolution: 1024 x 600 (WSVGA)
- Display Type: Multitouch with HydroTough™ rugged hydrophobic coating
- Brightness: 1,500 nits
- Viewing Angle: 85° Top, Bottom, Left, Right
- Dimensions: 210 x 142 x 77mm
- W x H x D: 7.92 x 5.24 x 3.0in (Excluding trunnion and cables)
- Weight: 3 lbs
- Mounting Options: Surface, Flush, Trunnion, (Front installation bracket available)
- Waterproof Rating: IPX6 / IPX7
- Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
- Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)

Power:
- Voltage: 12V DC (8V to 16V DC)
- Power Consumption (Full brightness): 7.34 Watts. RV Sonar version 9.84 Watts

Sensors:
- GNSS / GPS: Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required
- Sonar Type (Built-in): RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D
- Sonar Connections: 25pin RealVision™ type connector
- Sonar Depth: High CHIRP Sonar = 900 feet (274m) | DownVision™ = 600 feet (183m) | SideVision™ = 300 feet (91m) | RealVision™ 3D = 300 feet
(91m)
- External Sonar Option: Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
- Radar: Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
- AIS: Yes - NMEA2000 compatible
- Autopilot Control: Yes - Evolution Autopilot
- Thermal Night Vision: Yes FLIR AX8, M232, M300 Series, M400, M500
- Video / Camera: Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
- Weather: GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM - N. America Only
- Audio: NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio
- Digital Switching: Yes - Empirbus & C-Zone compatible
- Remote Control: Yes Optional RMK-10 (A80438)

Networking:
- Ethernet: 1 x 10/100 Mbit/s Network (RayNet)
- NMEA0183: No
- NMEA2000: NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter
- SeaTalkNG: Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)
- USB: 1 x USB microAB
- Wi-Fi: WiFi - 802.11 a/b/g/n
- BlueTooth: Bluetooth v4.0

Navigation:
- Cartography: Lighthouse Charts, Navionics, and C-MAP compatible:
- Waypoint/Routes/Tracks (Wpts/Rts/Trk): 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts: :

Memory:
- Internal Memory: 16 GB Solid State
- External Memory: 1x MicroSD Card Slot
- Languages: 24
- Conformances: NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210:

Other:
- Languages: 24
- Conformances: NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | - Industry Canada RSS210

What´s In The Box:
- Multifunction Display (supplied with Trunnion adaptor fitted)
- Trunnion bracket
- Trunnion knobs x 2
- Suncover — Trunnion mount
- Panel mount gasket for surface/flush mounting
- M5x58 Threaded studs x 4
- M5 Thumb nuts x 4
- Documentation pack
- DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in)
- Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
- E70635–03 is also supplied with a RealVision™ 3D RV-100 transducer and associated fittings
