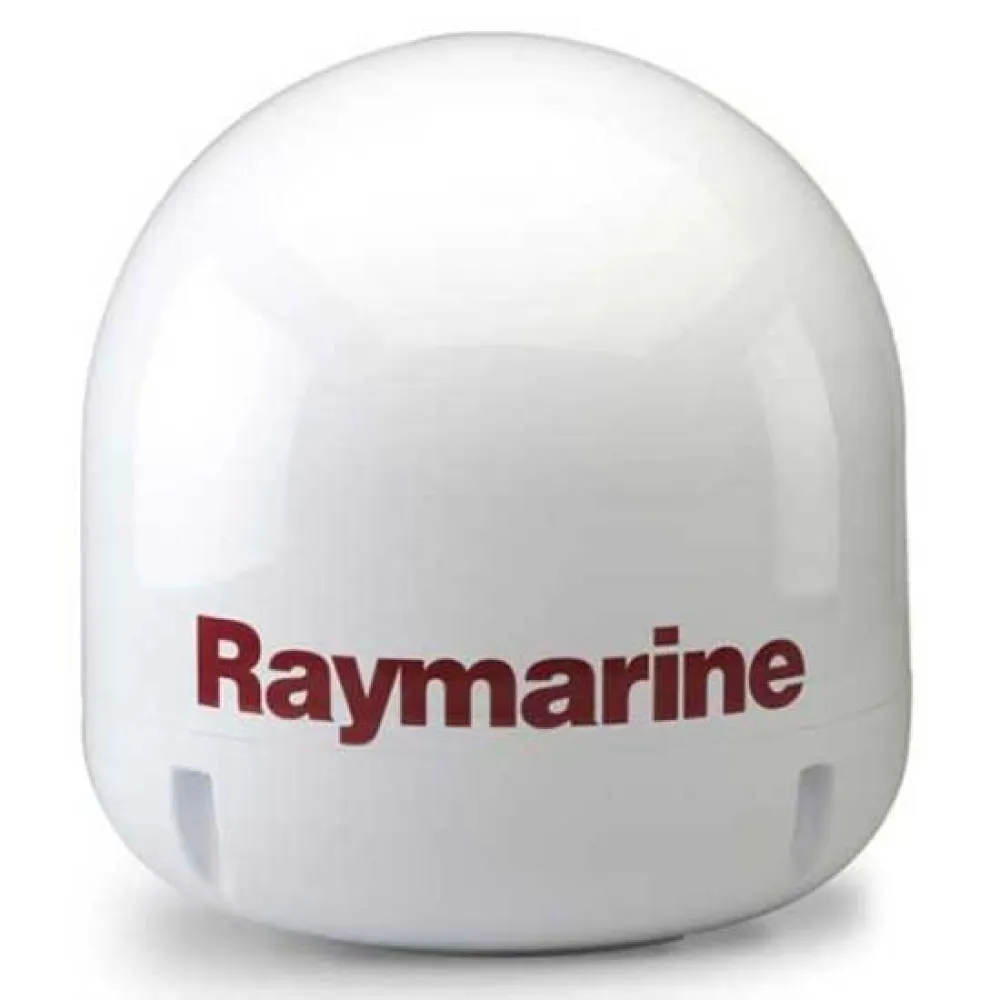

Raymarine Dummy TV 37STV antenna

The space saving Raymarine 37STV system is designed for vessels between 7.6 - 10.7 metres (25´ - 35´). At just 37 cm (14.5´´) diameter, this antenna is perfect for tight locations.

A firm hold on the signal:
- Raymarine´s exclusive Dynamic Beam Tilting (DBT) uses a high performance, constantly adjusting sub-reflector which allows the antenna to remain the strongest signal at all times while the vessel is cruising at high speed.

Faster signal acquisition:
- Raymarine´s exclusive Wide Range Search (WRS) algorithm allows the antenna to search, find and lock on to a signal with incredible speed and accuracy.

Simple & Easy installation:
- With a single cable to connect the antenna and the ACU, Raymarine´s 37STV systems are quick and easy to install. Our advanced ACU is designed to require minimum setup so you can begin to enjoy TV programs aboard your boat in no time.

Tune in your favorite HDTV channels:
- The 37STV provides HD channels from the Ku-band. The HD module is actually built-in to the Antenna Control Unit of the 37STV for seamless integration and easy installation.

Built-in GPS:
- The 37STV includes a built-in GPS for easier operation and faster signal acquisition. It allows the 37STV to have higher accuracy and easy operation wherever the vessel sails.

Compact size with powerful performance:
- 37cm reflector diameter with nationwide coverage for North & South America, Europe and the regional service around the globe.

Wireless connectivity & Aptus mobile:
- The built-in Wi-Fi enables the ACU to be wirelessly connected. PCs, laptops and smartphones can be used to connect to the ACU and monitor, control and change the settings of the system wirelessly. Intellian Aptus mobile is available for download to access the ACU via Wi-Fi and operate the antenna from their iPhone, iPad or other network devices. iPhone and iPad are registered trademarks of Apple Inc.

Key Features:

- Automatic satellite search and identification. 2-axis step motors to stabilize the pedestal.
- 37cm antenna reflector diameter Light antenna weighs less than 9kg. Enhanced Antenna Highly efficient parabolic antenna enables 50dBW of minimum EIRP. RHCP / LHCP, Vertical / Horizontal polarization
- Competitor methods search for the narrow-bandwidth of the main lobe. However the Raymarine 37STV exclusive Wide Range Search (WRS) searches for the wide range of side lobes and jumps up to the main lobe, providing faster satellite acquisition.
- High speed identification employing DVB-S2 Decoder

Specifications:

Physical:
- Radome Height: 44cm / 17.3”
- Radome Diameter: 43cm / 16.9”
- Reflector Diameter: 37cm / 14.6”
- Weight: 9kg / 19.8lbs

Environmental:
- Operating Temp. Range: -25°C to +55°C / -13°F to +131°F
- Storage Temp. Range: -40°C to +80°C / -40°F to +176°F
- Water Ingress: IPX6
- Approvals: CE / FCC

Performance:
- Reception Frequency: Ku-band (10.7~12.75GHz)
- Polarization: RHCP / LHCP, Vertical / Horizontal
- Minimum EIRP: 50dBW
- Azimuth Range: 680º
- Elevation Range: +10º to +80º
- Ship’s Motion: Roll ±25º, Pitch ±15º
- Roll & Pitch Response Rate: 60º / sec
- Turning Rate: 60º / sec
- RF Output: Dual Output
