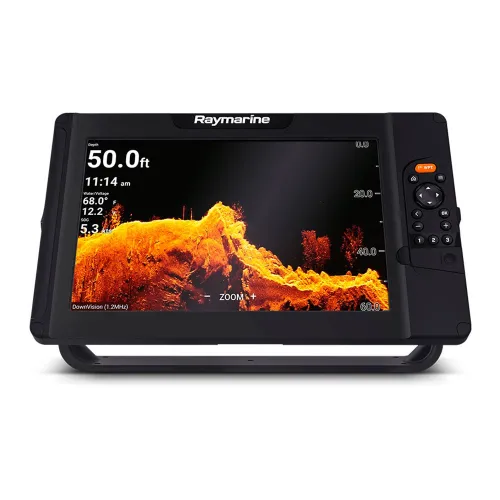

Raymarine Element 12 HV HyperVision plotter with cartography

Element 12 HV MFD only.

GPS/Fishfinder only. This model doesn´t include Transducer and Cartography, it should be order separately or use a compatible transducer or cartography that you already have in your possession. If you are interested in order the Element with Transducer and Navionics, please check the other model references in our store.

The New Element offers superior sonar technology, unrivaled quad-core processing speed and the simplicity of teh new LightHouse Sport OS.

This Combo Sonar & GPS Plotter it´s recommended for small and medium-sized, single station fishing boat owners who desire performance, but do not require a full-fledged networked multifunction navigation system.


Features:

- Rugged, high-visibility sunlight display 1500 nits.
- Built-in HyperVision™ CHIRP technology delivers super-high resolution sonar imagery (Important: HV Transducer required, not included).
- Built-in RealVision™ 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes (Important: HV Transducer required, not included).
- Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
- Raymarine RealBathy™ Technology create your own detailed batimetric cartography while you drive your boat. Real time sonar map generator capability.
- On-screen water temperature graph (High CHIRP Sonar and DownVision)(Important: Transducer required, not included).

Specifications:

- Display Size: 12.0 Optically Bonded LCD
- Display Resolution: 1280 x 800 WVGA
- Display Type: Non-Touch
- Voltage: 12V DC (8V to 16V DC)
- NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
- Supported NMEA2000 Networking: INPUT: NMEA2000 Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for Chart Stabilization); OUTPUT: GPS (for VHF Distress and DSC)
- SeaTalkng: Requires A06045 DeviceNet female (F) adapter cable - 400mm
- Wi-fi: WiFi - 802.11 b / g / n
- Bluetooth: Bluetooth 4.0 + Low Energy + Power Class 1.5
- Built-in GNSS Receiver: GPS/GLONASS

Sonar Specifications:
- Built-in Sonar Technologies (*Transducer Required):
CHIRP Sonar
DownVision
SideVision
RealVision 3D
- Maximum Sonar Depth (*Transducer Required):
CHIRP Sonar = 274m (900 feet)
DownVision™ Standard = 183m (600 feet) | DownVision™ Hyper = 30m (100 feet)
SideVision™ Standard = 91m (300 feet) | SideVision™ Hyper = 30m (100 feet)
RealVision™ 3D Standard = 91m (300 feet) | RealVision™ 3D Hyper = 30m (100 feet)

Cartography (*Not included):
The Raymarine Element is compatible with Navionics, C-MAP Essentials, C-MAP 4D MAX+

Other Specifications:
- Waypoint / Routes / Tracks: 5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts
- Internal Memory: 8GB Solid State
- External Memory: 1 x microSD slots - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32).

What´s in the box:

1) Trunnion bracket with mounting hardware.
2) Surface mount kit with mounting hardware.
3) Sun cover.
4) Power / NMEA2000 1.5m cable.
5) Documentation pack.
