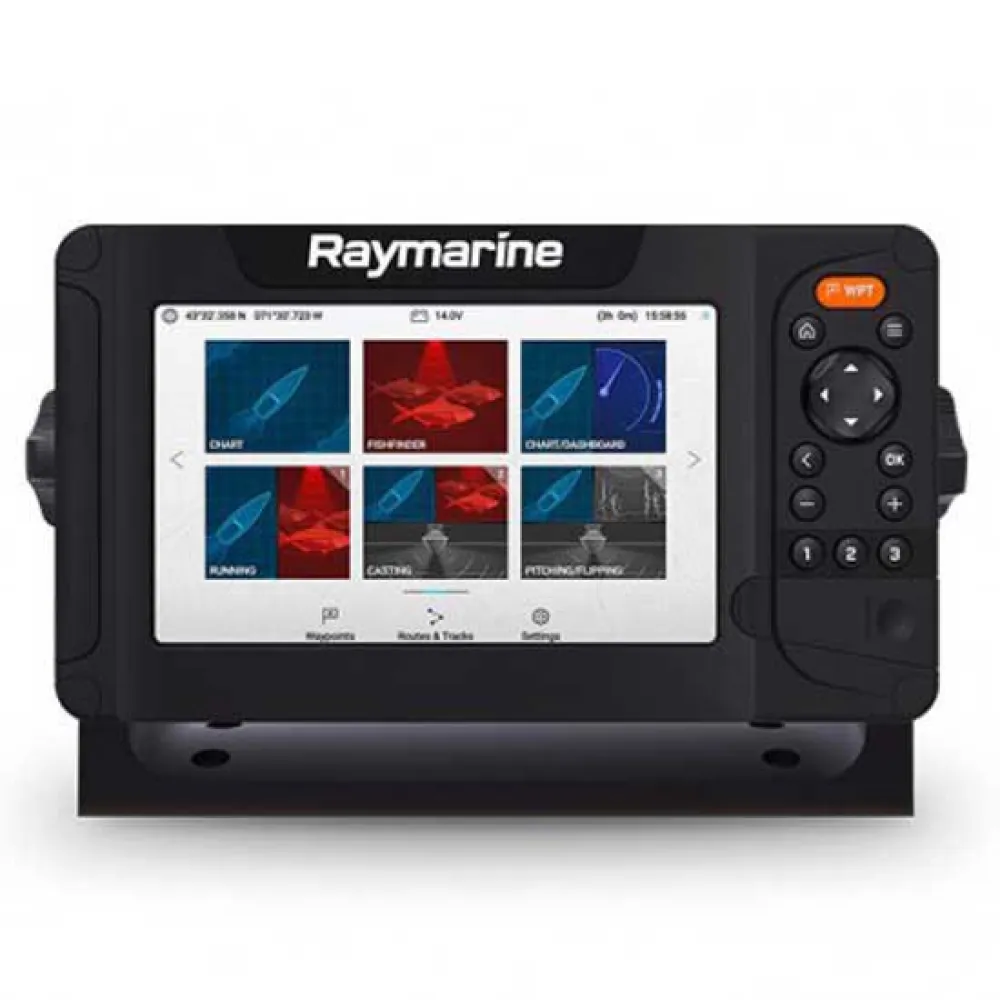

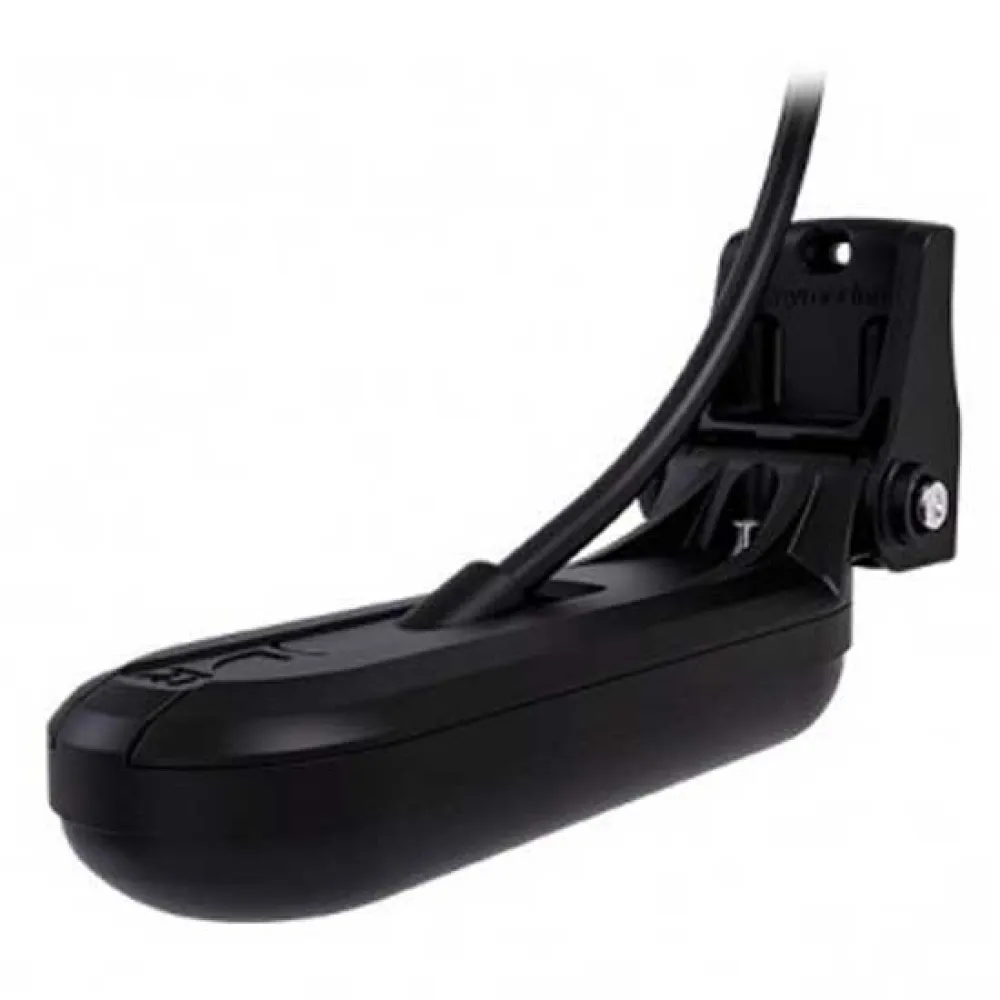

Raymarine Element 7 HV 7´´ plotter with transducer

Knowledge Is Power—And The Element™ Chirp Sonar/Gps Series From Raymarine Gives You The Upper Hand When Hunting For Fish And Their Habitat. Delivering The Sharpest View Of The Underwater World, Element’S Hypervision™ 1.2 Megahertz Sonar Technology, Turns Up The Resolution Of Downvision, Sidevision, And Realvision 3d To A New Level Of Precision Imaging And Fish Identification, Letting You See Structures, Vegetation, And Fish With Amazing Life-Like Clarity.

Sonar / Gps With Hypervision™:
- Built For Anglers That Want To Be One Step Ahead Of The Game, Element Delviers The Sharpest View Of The Underwater World With Hypervision™ 1.2 Megahertz Super High-Resolution Sonar. Hypervision Take Downvision, Sidevision And Raymarine Realvision 3d Sonar To The Next Level Of Precision Imaging And Fish Identification, Letting You See Structures, Vegetation And Fish With Lifelike Clarity.


Specifications:

General:
- Display Size: 7.0´´ Optically Bonded Lcd-
- Display Resolution: 800 X 480 Wvga-
- Brightness: 1,500 Nits
- Viewing Angle: Top 50° / Bottom 60° / Left 70° / Right 70°-

Physical:
- Overall Dimensions W X H X D: 240 X 135 62mm (9.5 X 5.3 X 2.4 Inches)
- Weight (Lbs): 3.0

Power:
- Power Consumption (Max 12v Dc): 15 Watts

Sensors:
- Gnss / Gps: Built-In Gnss Receiver: Gps/Glonass
- Sonar Type (Built-In): Built-In Chirp Sonar, Downvision (Standard And Hyper), Sidevision (Standard And Hyper), Realvision™ 3d (Standard And Hyper)
- Sonar Connection: 15 Pin Hypervision™ Type Connector

Sonar Depth:
- Chirp Sonar = 274m (900 Feet)
- Downvision™ Standard = 183m (600 Feet) | Downvision™ Hyper = 30m (100 Feet)
- Sidevision™ Standard = 91m (300 Feet) | Sidevision™ Hyper = 30m (100 Feet)
- Realvision™ 3d Standard = 91m (300 Feet) | Realvision™ 3d Hyper = 30m (100 Feet)

Networking:
- Nmea2000: 1 X Nmea2000 Port (Devicenet Microc)
- Seatalkng: Requires A06045 Devicenet Female (F) Adapter Cable - 400mm
- Wi-Fi: Wifi - 802.11 B / G / N

- Cartography: Raymarine Lighthouse Nc2, Navionics, C-Map Essentials, C-Map 4d Max+, And Compatible With All Charts Listed On Raymarine Chart Store.
- Tides & Currents: Requires Lighthouse Lnc2, Navionics Or C-Map
- Waypoint / Routes / Tracks: 5,000 Wpts / 200 Wpt Groups / 50 Rts - 250 Wpt Max / 15 Tracks - 10,000 Max Trk Pts
- Internal Memory: 8gb Solid State
- External Memory: 1 X Microsd Slots - Microsdhc Max 32gb Ntfs Or Fat32 Format / Microsdxc Max 2tb Ntfs Or Fat32 Format (Microsd Native Format Of Exfat Must Be Reformatted To Ntfs Or Fat32)
