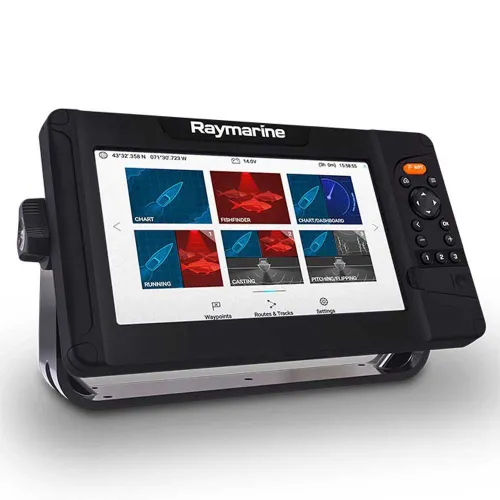

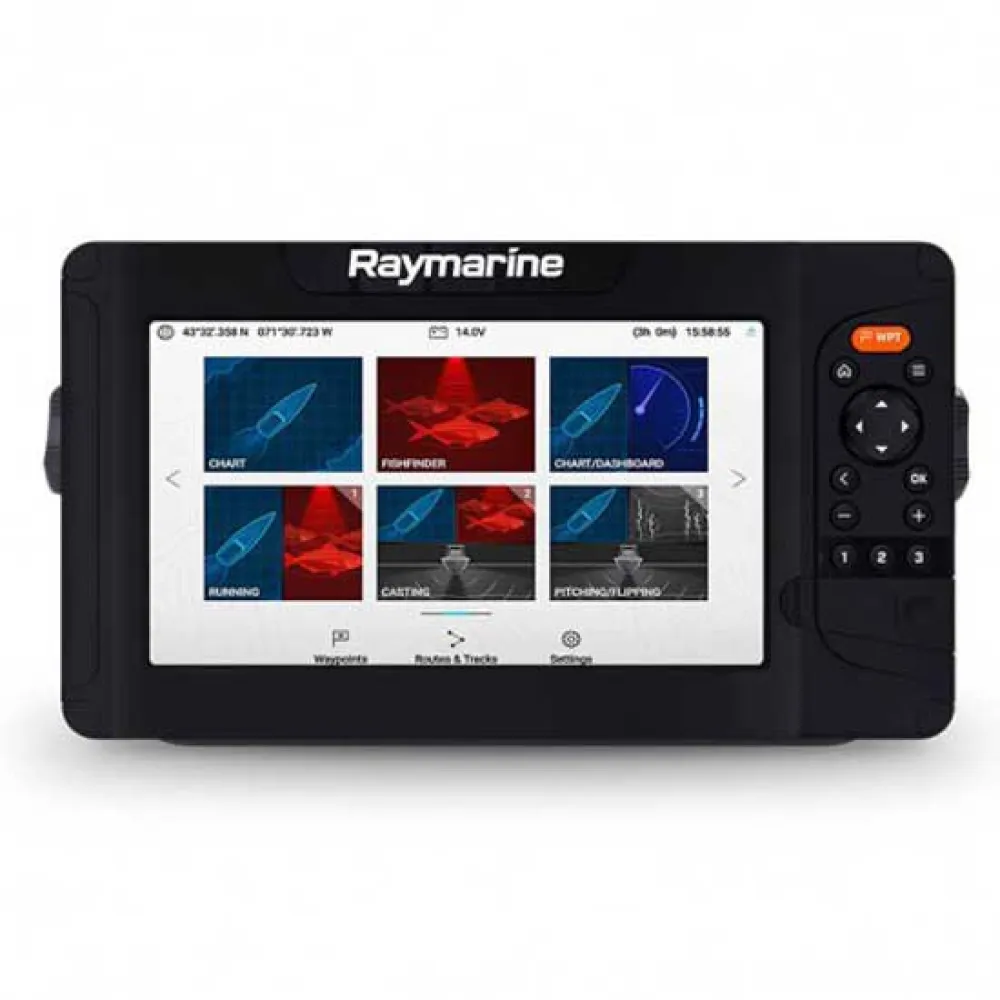

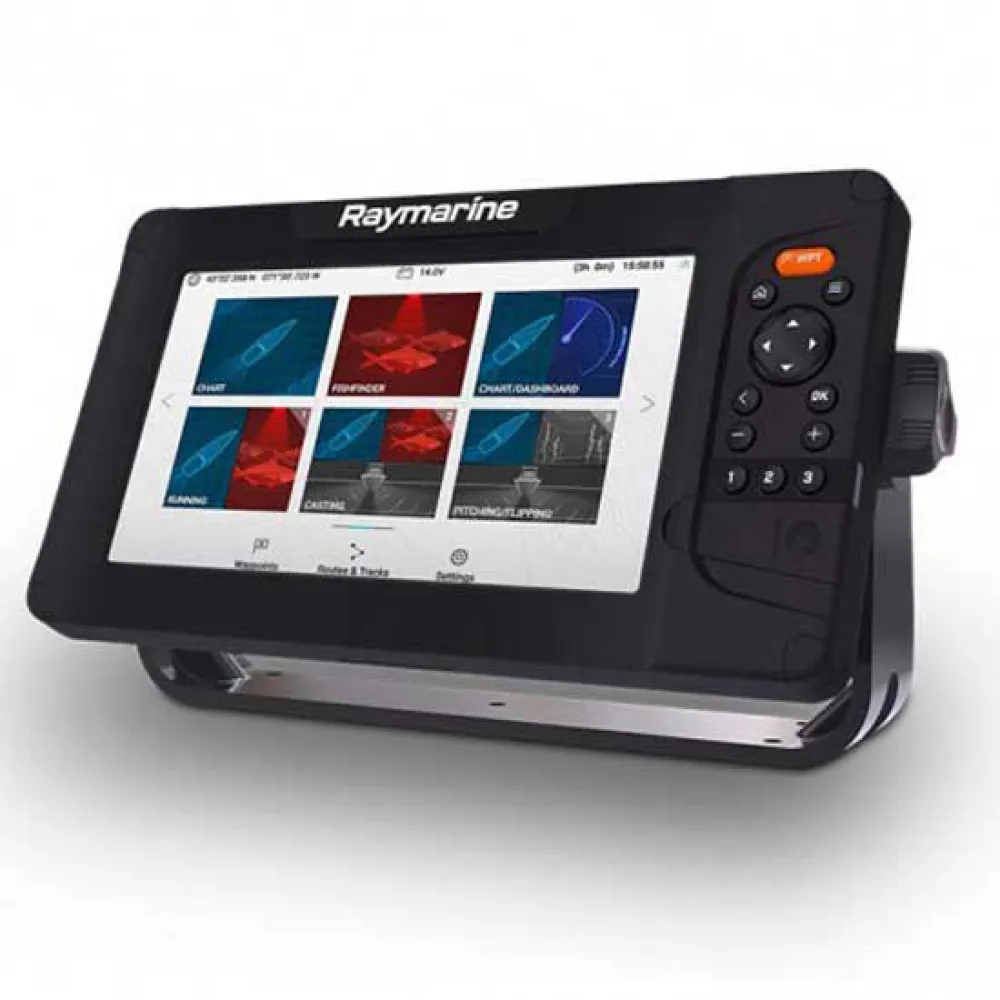

Raymarine Element 9 HV 9´´ plotter with transducer

Knowledge Is Power—And The Element™ Chirp Sonar / Gps Series From Raymarine Gives You The Upper Hand When Hunting For Fish And Their Habitat. Delivering The Sharpest View Of The Underwater World, Element’S Hypervision™ 1.2 Megahertz Sonar Technology, Turns Up The Resolution Of Downvision, Sidevision, And Realvision 3d To A New Level Of Precision Imaging And Fish Identification, Letting You See Structures, Vegetation, And Fish With Amazing Life-Like Clarity.


Features:

Bright And Rugged:
- Sunlight Viewable Displays With Integrated Gps/Gnss Receiver.

Element Features | Marine Electronics By Raymarinesuperior Hypervision:
- 1.2 Megahertz Chirp Sonar Technology Delivers Much Higher Resolution Imaging Compared To Conventional Side And Down Scanning Sonars.

Realvision™ 3d Built-In:
- Accurately Identify The Location Of Ledges, Channel Beds, And Other Contour Changes.

Element Features | Marine Electronics By Raymarinefast Quad-Core Processor:
- For Instantaneous Chart Re-Draw And Sharp 3d Imaging.

All-In-One Transducer:
- Combines Hypervision, Downvision, Sidevision, Realvision, And Conventional Chirp Sonar Channels Into One Simple Installation.

- Hypervision Uses Super High Frequencies (1.2 Megahertz) And Chirp Technology To Bring A New Level Of Precision Imaging To Downvision, Sidevision And Realvision 3d
1.2 Megahertz Hypervision Mode Is Optimized For Super High-Resolution Imagery Up To 100’ (30 Meters)
Switch To Standard 350 Khz Chirp Sonar For Longer Range, High-Resolution Imaging, And Ranges Up To 600’ (180 Meters)
Element’S Advanced Chirp Sonar Also Operates In The High-Frequency 200khz Range For Fish Targeting, High-Speed Bottom Tracking, And Depths Up To 900ft

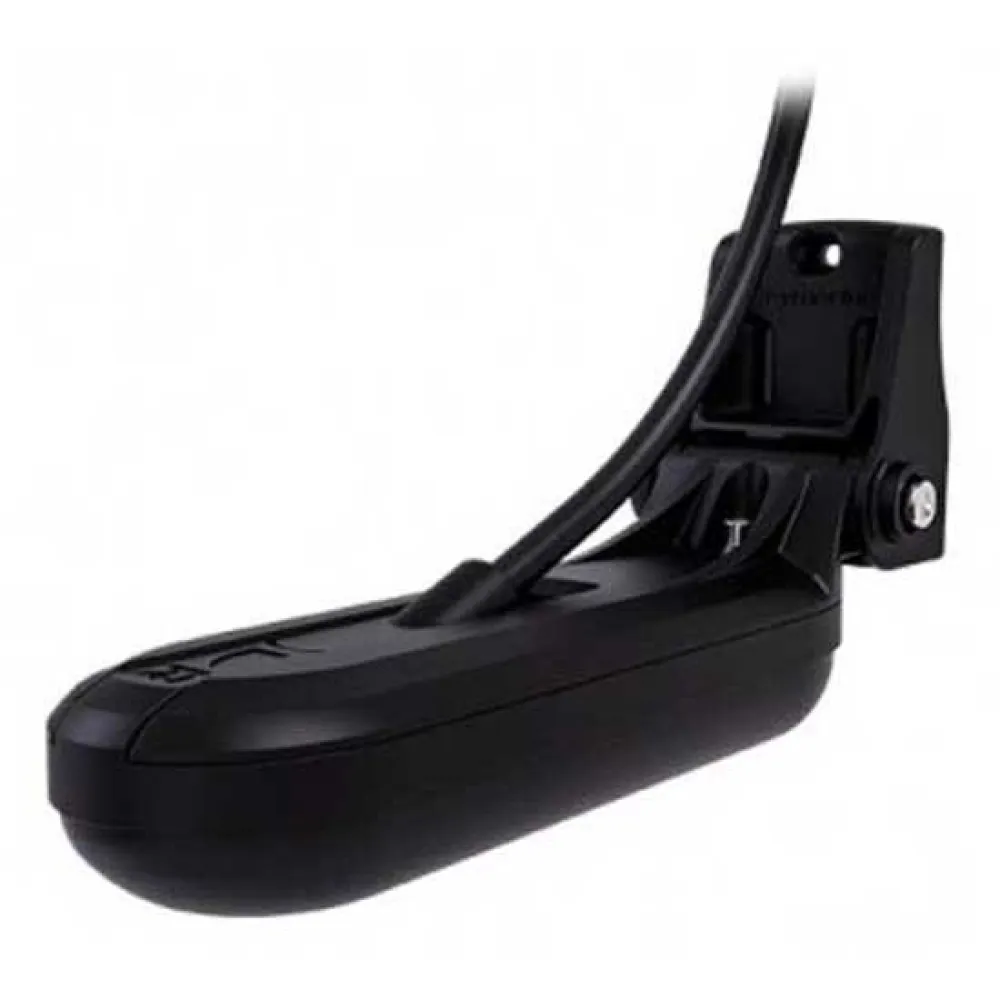

Hypervision™ Chirp Transducers:
- The All-In-One Design Of Element´s Hypervision Transducers Make Them Compact And Easy To Install. Raymarine Offers Convenient Transom Mount And Thru-Hull Options To Fit Any Boat.


Specifications:

- Display Size: 7.0´´ Optically Bonded Lc, 9.0´´ Optically Bonded Lcd, 12.0´´ Optically Bonded Lcd
- Display Resolution: 800 X 480 Wvga, 1280 X 800 Wxga
- Display Type: Non-Touch
- Brightness: 1,500 Nits
- Viewing Angle: Top 50° / Bottom 60° / Left 70° / Right 70° Top 89° / Bottom 89° / Left 89° / Right 89°

Physical:
- Overall Dimensions W X H X : 240 X 135 62mm (9.5 X 5.3 X 2.4 Inches, 287 X 161 X 62mm (11.3 X 6.3 X 2.4 Inches, 357 X 215 X 62mm (14.1 X 8.5 X 2.4 Inches)
- Product Weight (Lbs): 3.0 5.0 6.5
- Water Ingress Protection: Ipx6 And Ipx7
- Operating Temperature Range: -25°C To + 55°C (-13°F To 131°F)
- Storage Temperature Range: -30°C To +70°C (-22°F To 158°F)

Power:
- Voltage: 12v Dc (8v To 16v Dc)
- Power Consumption(Max 12v Dc): 15 Watts, 20 Watts, 25 Watts

Sensors:
- Gnss / Gps: Built-In Gnss Receiver: Gps/Glonass
- Sonar Type: (Built-In) Built-In Chirp Sonar, Downvision (Standard And Hyper), Sidevision (Standard And Hyper), Realvision™ 3d (Standard And Hyper)
- Sonar Connection 15 Pin Hypervision™ Type Connector

Sonar Depth :
- Chirp Sonar: 274m (900 Feet)
- Downvision™ Standard = 183m (600 Feet) | Downvision™ Hyper = 30m (100 Feet)
- Sidevision™ Standard = 91m (300 Feet) | Sidevision™ Hyper = 30m (100 Feet)
- Realvision™ 3d Standard = 91m (300 Feet) | Realvision™ 3d Hyper = 30m (100 Feet)

Networking:
- Nmea2000: 1 X Nmea2000 Port (Devicenet Microc)
- Supported Nmea2000 Networking Input: Nmea2000 Compatible Engines (Max 2) | Nmea2000 Compatible Tank Sensors (Max 4) | Heading Sensor (For Chart Stabilization)
- Output: Gps (For Vhf Distress And Dsc)
- Seatalkng: Requires A06045 Devicenet Female (F) Adapter Cable - 400mm
- Wi-Fi: Wifi - 802.11 B / G / N
- Bluetooth: Bluetooth 4.0 + Low Energy + Power Class 1.5

Other Specifications:
Cartography:
- Raymarine Lighthouse Nc2, Navionics, C-Map Essentials, C-Map 4d Max+, And Compatible With All Charts Listed On Raymarine Chart Store.
Tides & Currents:
- Requires Lighthouse Lnc2, Navionics Or C-Map
- Waypoint / Routes / Tracks: 5,000 Wpts / 200 Wpt Groups / 50 Rts - 250 Wpt Max / 15 Tracks - 10,000 Max Trk Pts
- Internal Memory: 8gb Solid State
- External Memor: 1 X Microsd Slots - Microsdhc Max 32gb Ntfs Or Fat32 Format / Microsdxc Max 2tb Ntfs Or Fat32 Format (Microsd Native Format Of Exfat Must Be Reformatted To Ntfs Or Fat32)
