Raymarine ST1000 Spokes

RAYMARINE ST1000 Spokes Tiller Pilot | Advanced Autopilot for Sailboats

Experience unparalleled control and freedom on the water with the RAYMARINE ST1000 Spokes Tiller Pilot. Perfectly engineered for tiller-steered sailboats with up to 3.000 kg of displacement, the ST1000 is a world-renowned autopilot that acts as a reliable extra hand on deck. Whether you are sailing single-handed or simply want to reduce fatigue at the helm on longer passages, this advanced tiller pilot delivers precise, consistent steering in a variety of sea conditions. Its powerful performance and intuitive design have made it a trusted choice for sailors around the globe.

Elevate your sailing experience with the intelligent features of this exceptional autopilot. The ST1000 is built with robust construction and sophisticated electronics, ensuring durability and reliability when you need it most. Its efficient power consumption means minimal drain on your boat´s battery systems, allowing you to sail further with complete peace of mind. Integration with your existing Raymarine navigation instruments is seamless, creating a fully connected system that enhances safety and simplifies navigation.

Advanced Functionality at Your Fingertips

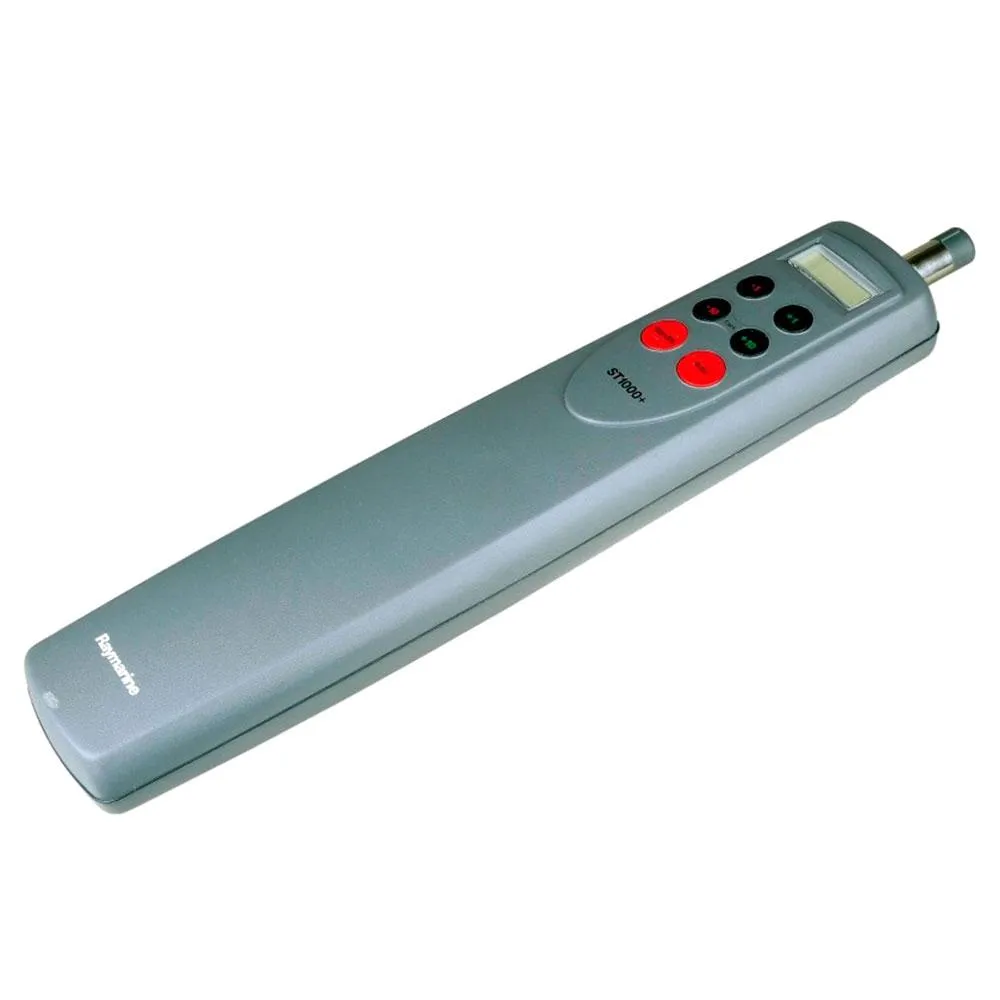

Engineered as a premier autopilot for tiller-steered boats with a displacement of up to 3.000 kg, the ST1000 offers intuitive command through its straightforward 6-button control interface. A crisp, backlit LCD provides vital data at a glance, including current heading, Bearing to Waypoint (BRG), Distance to Waypoint (DST), and Cross Track Error (XTE) when connected via SeaTalk. Harness the power of integrated navigation by enabling steering to wind via SeaTalk or precise route tracking through NMEA and SeaTalk connections. Advanced features include automatic trim adjustment (Autotrim), intelligent sea state adaptation (AutoSeaState), simple user calibration, and an extra-loud alarm for critical alerts. Versatile mounting accessories ensure a seamless fit for your vessel.

RAYMARINE ST1000 Spokes Technical Specifications
* Recommended Maximum Displacement: 3.000 kg
* Power Supply: 12 V system
* Absolute Voltage Range: 10-16 V DC
* Power Consumption: 40 mA
* Weight: 1.53 kg

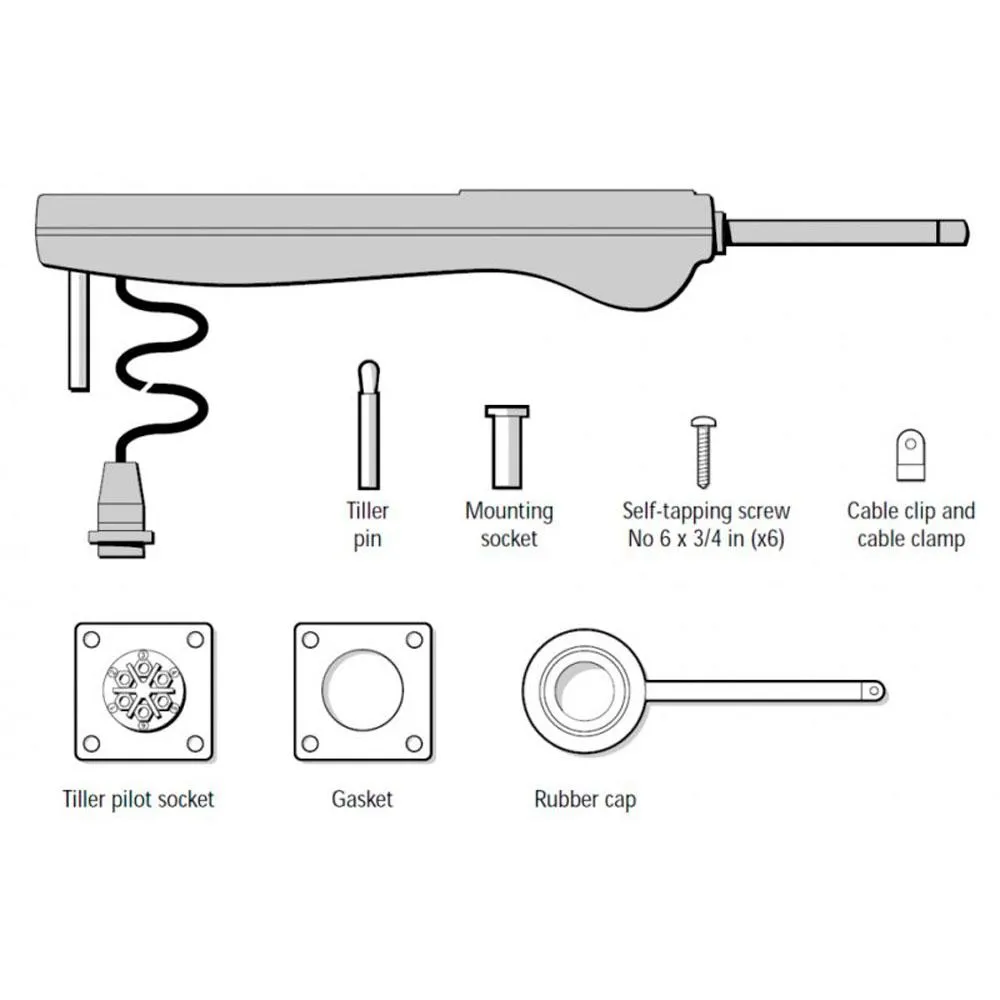

* Mounting Methods: Reversible port or starboard
* Display Size: 45 mm segment LCD
* Display Lighting: 3 levels plus off
* Connections: NMEA 0183 input, SeaTalk
* Thrust: 57 kg
* Stroke: 236 mm
