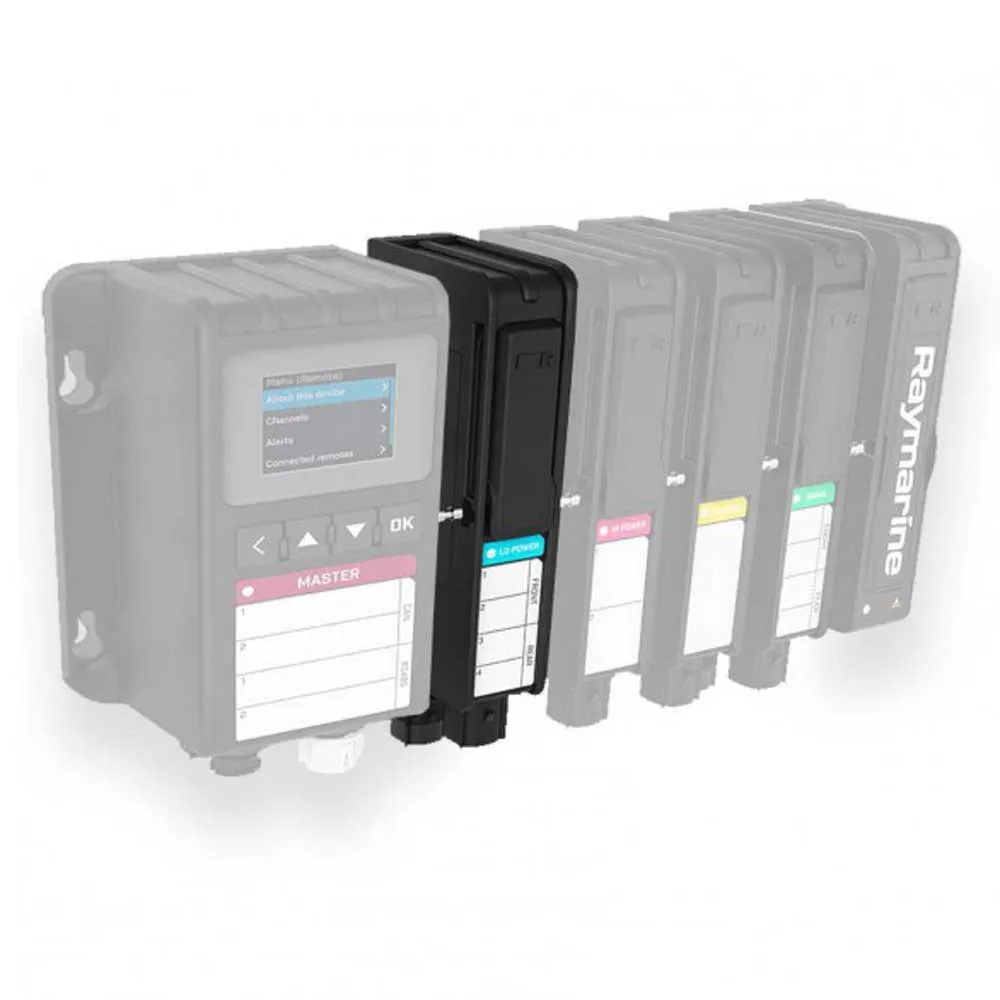

Raymarine Yachtsense Low Power Module Modular Digital Controller

The Low Power Module Is A Digital Output Module And Can Be Used To Drive Lower Powered Electrical Loads Such As Lights, Wipers Motors And Other Electronic Devices. The Low Power Module Supports Up To 4 Devices.


Features:

Channel Capabilities:
- Up To 10 A Draw Per Channel
- Load Current Measurement
- Over Current Protection
- Under Current Detection
- Soft Fuse
- Voltage Detection

Output Options:
- Controls 4 Circuits Up For 10 Amps Each
- Fully Dimmable For All Types Of Lights
- Soft Start And Stop Capable
- 3 Layers Of Redundancy On All Circuits


Specifications:

- Module Dimensions: H/W/D (Not Including Busbars): 172 Mm (6.77 In) X 28.00 Mm (1.10 In) X 76.50 Mm (3.01 In)
- Weight: 0.27 Kg (0.60 Lb)
- Nominal Supply Voltage: 12 V Dc / 24 V Dc
- Operating Voltage Range: 8 V Dc To 32 V Dc
- Maximum Output Current: 40 A (10 A Per Channel)
- Minimum Output Current: 50 Ma
- Lo Power Connections: 4 X 10 A Output Channels
- Module Communications: Internal 6–Pin Connection
