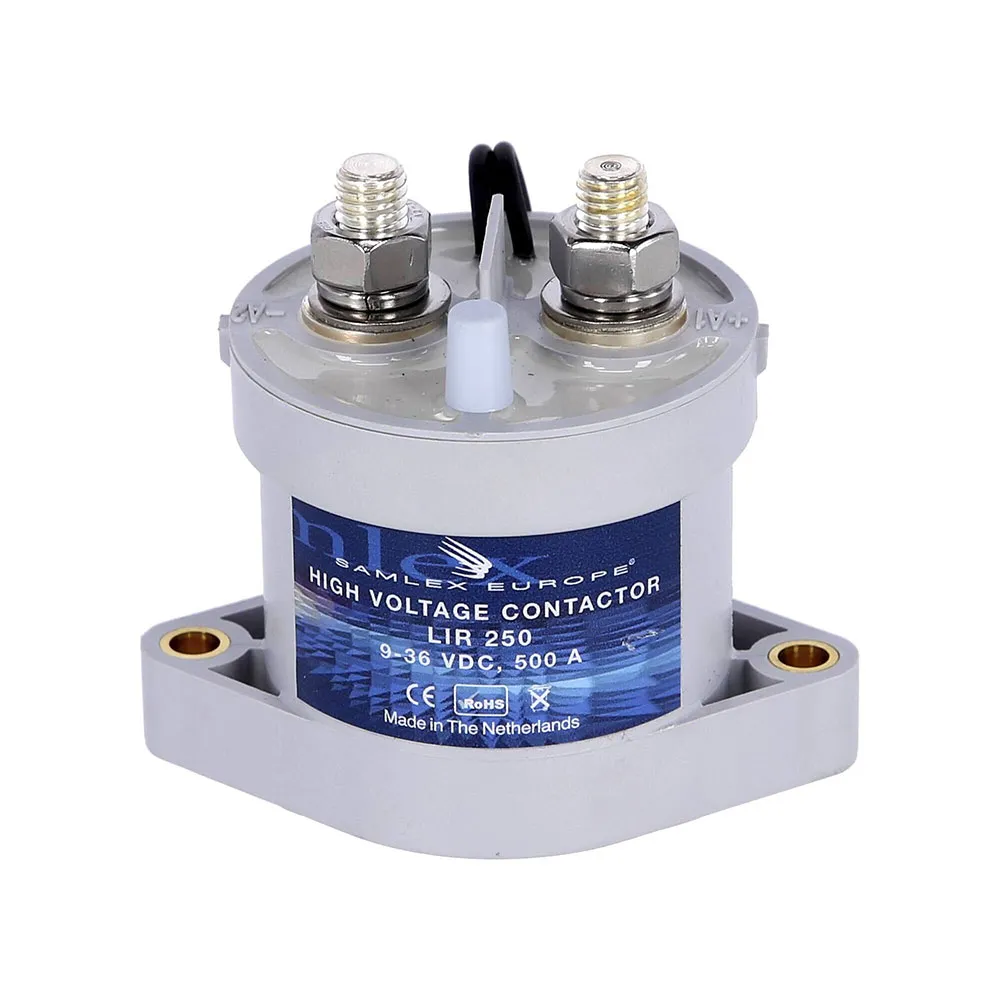

Samlex Monostable relay 500A 12V

SAMLEX Monostable Relay 500A 12V: High-Current Switching for Demanding Electrical Systems

Gain unparalleled control and safety over your high-power 12V DC circuits with the SAMLEX Monostable Relay. Engineered for extreme reliability and performance, this heavy-duty component is the definitive solution for managing substantial electrical loads in sophisticated systems. Ideal for applications within the automotive, marine, RV, and off-grid solar sectors, this 500A relay provides a robust and secure method for remotely switching power to your most demanding equipment, ensuring both protection for your investments and peace of mind.

Key Benefits:

* Exceptional Power Handling: Effortlessly manage and control extremely high-current devices. With a continuous rating of 500 Amps, this relay is perfectly suited for operating large power inverters, anchor winches, hydraulic pumps, bow thrusters, and for connecting or isolating large battery banks. It provides a safe and efficient alternative to manual high-amperage switches.
* Enhanced System Safety and Protection: Isolate high-power circuits on demand to prevent parasitic battery drain when not in use. This relay acts as a critical safety device, allowing for the remote disconnection of batteries or equipment in an emergency, helping to prevent electrical fires and protect sensitive electronics from power surges.
* Superior Durability and Longevity: Built to withstand harsh operating conditions, the SAMLEX 500A relay features a rugged, sealed construction that protects its internal components from moisture, dust, and vibration. This ensures consistent, reliable performance whether it´s installed in a vibrating engine bay, a marine vessel´s bilge, or an off-road vehicle.
* Simplified Remote Operation: Integrate seamless control into your dashboard or control panel. By using a simple, low-current switch to energize the relay´s coil, you can safely and conveniently manage a 500A circuit from a distance, eliminating the need for heavy, expensive high-amperage cabling to the switch location.

Main Features:

* High-Current Switching Capability rated for 500 Amperes continuous load.
* Designed for 12V DC electrical systems with a corresponding 12V coil for activation.
* Standard Monostable operation, meaning the relay is energized to switch the contacts and returns to its resting state when power to the coil is removed.
* Features heavy-duty M10 copper terminals for power connections to ensure minimal voltage drop and maximum power transfer.
* Equipped with smaller terminals for easy and secure connection to the low-current activation coil.
* Robust mechanical design optimized for a long operational life with a high number of switching cycles.
* Silver alloy contacts provide excellent conductivity and superior resistance to arcing and wear over time.

Technical Specifications:

* Product Type: High-Current Relays / Solenoid
* Model: SAMLEX Monostable Relay
* Nominal System Voltage: 12V DC
* Continuous Current Rating: 500A
* Coil Activation Voltage: 12V DC
* Contact Arrangement: Single Pole, Single Throw (SPST)
* Operation: Monostable
* Power Terminals: M10 Studs
* Coil Terminals: Spade or Screw Terminals
* Mounting: 2-Point Flange Mount

Choose the SAMLEX Monostable 500A 12V Relay for your next project or upgrade. It is the professional´s choice for safe, reliable, and convenient high-current electrical connections, backed by the quality and engineering excellence of the SAMLEX brand
