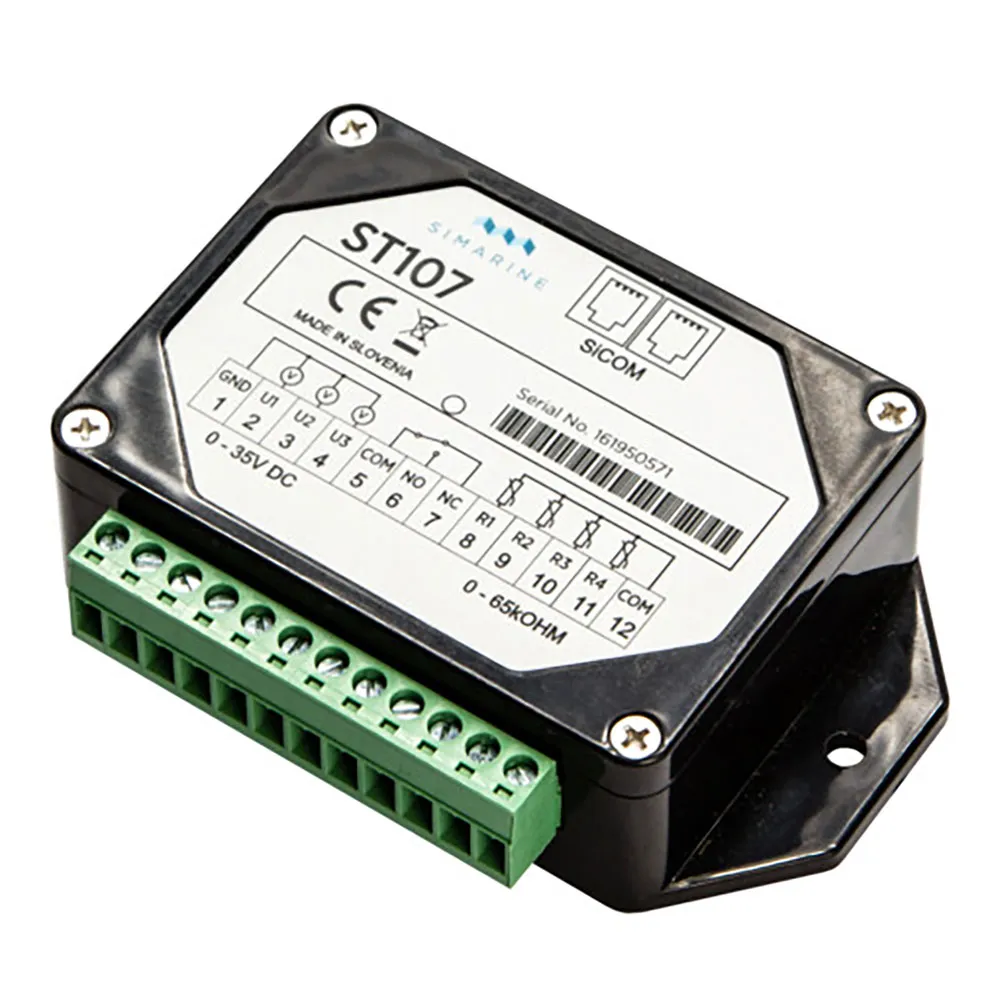

Simarine ST107 Tank Module

SIMARINE ST107 Digital Tank Module | Precise Level and Voltage Monitoring

Category: Electronics
Subcategory: Electrical connections

Transform your vessel or vehicle´s resource management with the SIMARINE ST107 Digital Tank Module, an essential component for any modern marine or RV electrical system. Move beyond the frustrating guesswork of inaccurate, standard-issue gauges and embrace the precision and reliability of advanced digital monitoring. The ST107 is expertly engineered to provide a clear, real-time overview of your vital resources, ensuring you have the accurate data needed for safe and confident journeys. By integrating this powerful module into your system, you can eliminate surprises and take full control over your tank levels and voltage sources.

The core strength of the ST107 lies in its remarkable versatility and intelligence. It serves as a central hub for a wide array of sensors, allowing you to monitor up to four separate tanks using standard resistive-type senders. Its true innovation is the advanced calibration function, which enables you to map the unique, non-linear shape of each tank. This process transforms your existing, often imprecise, float senders into highly accurate measuring instruments, providing true level readings from empty to full. Furthermore, the ST107 expands your diagnostic capabilities with three additional voltage inputs, perfect for monitoring the status of battery banks, solar panels, or other critical equipment up to 75V.

The SIMARINE ST107 Tank Module Black is an advanced electronic device designed to monitor the levels of fuel, water, and waste tanks on boats, marine vehicles, and RVs. With its sleek and compact design, the ST107 Tank Module is easy to install and features a highly accurate and reliable ultrasonic sensor that measures tank levels with precision. The device also comes with multiple electric connections and can be easily integrated into existing onboard systems. With its intuitive user interface and customizable settings, the SIMARINE ST107 Tank Module Black is the perfect solution for improving accuracy and efficiency when it comes to tank monitoring. So why wait? Upgrade your marine or RV system today with the SIMARINE ST107 Tank Module Black and enjoy trouble-free cruising!

Designed for seamless integration, the ST107 is one of the fundamental modules within the comprehensive SIMARINE PICO monitoring ecosystem. It connects effortlessly to the main PICO display unit via a single SiCOM data cable, simplifying installation and reducing wiring clutter. This modular approach allows you to build a completely customized monitoring system tailored to your specific needs. By combining various modules, you can create a centralized dashboard that displays everything from tank levels and battery health to current consumption and temperature, all with unparalleled accuracy.

Main Features:

* Monitors up to 4 tanks equipped with resistive level senders.
* Features 3 independent voltage inputs for comprehensive battery and equipment monitoring.
* Enables individual sensor calibration for each input to ensure precise readings for any tank shape.
* Compatible with all standard resistive senders (0-65 kOhm range).
* Supports monitoring of fuel, fresh water, grey water, black water, and more.
* Seamless plug-and-play integration with the SIMARINE PICO monitoring system.
* Extremely low power consumption for minimal impact on your power systems.

Technical Specifications:

* Operating Voltage: 6 – 35 V DC
* Power Consumption (at 12V): 15 mA
* Number of Resistance Inputs: 4
* Resistance Input Range: 0 – 65.000 Ohm
* Number of Voltage Inputs: 3
* Voltage Input Range: 0 – 75 V
* Connectivity: SiCOM (CAN) Port
