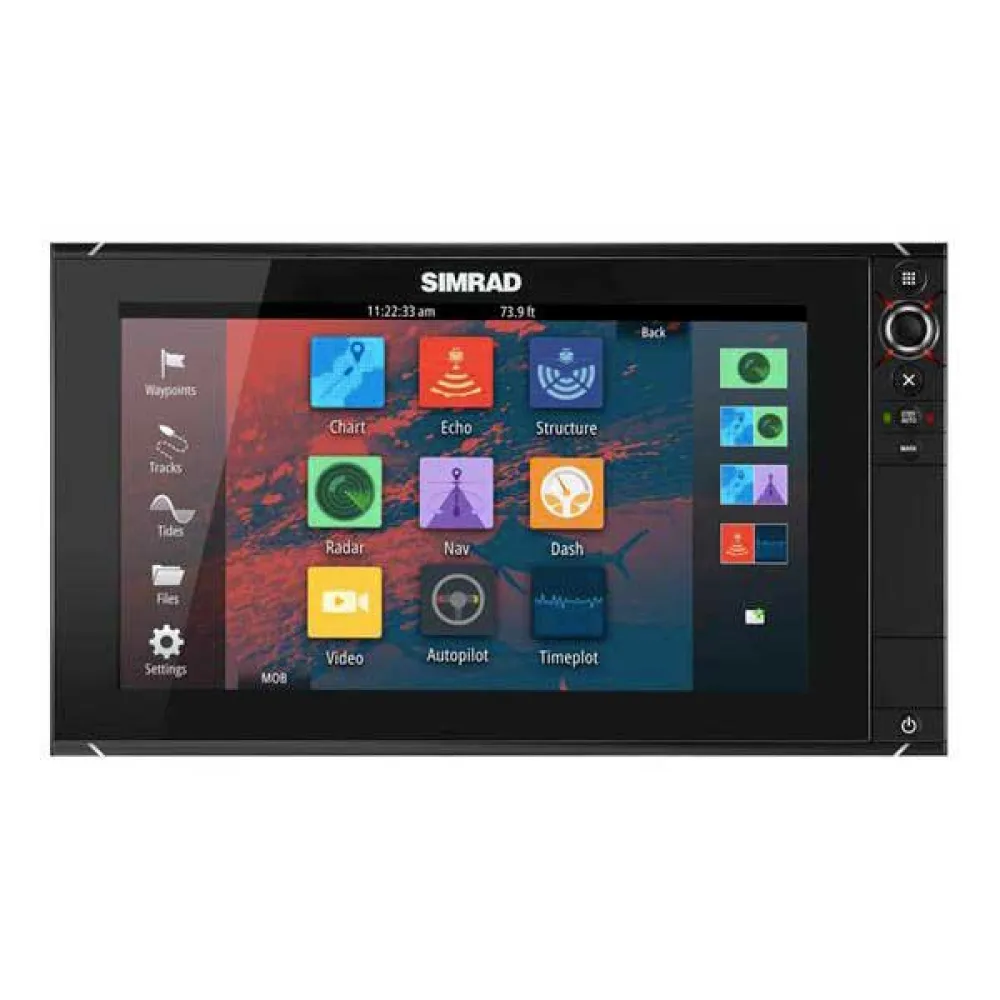

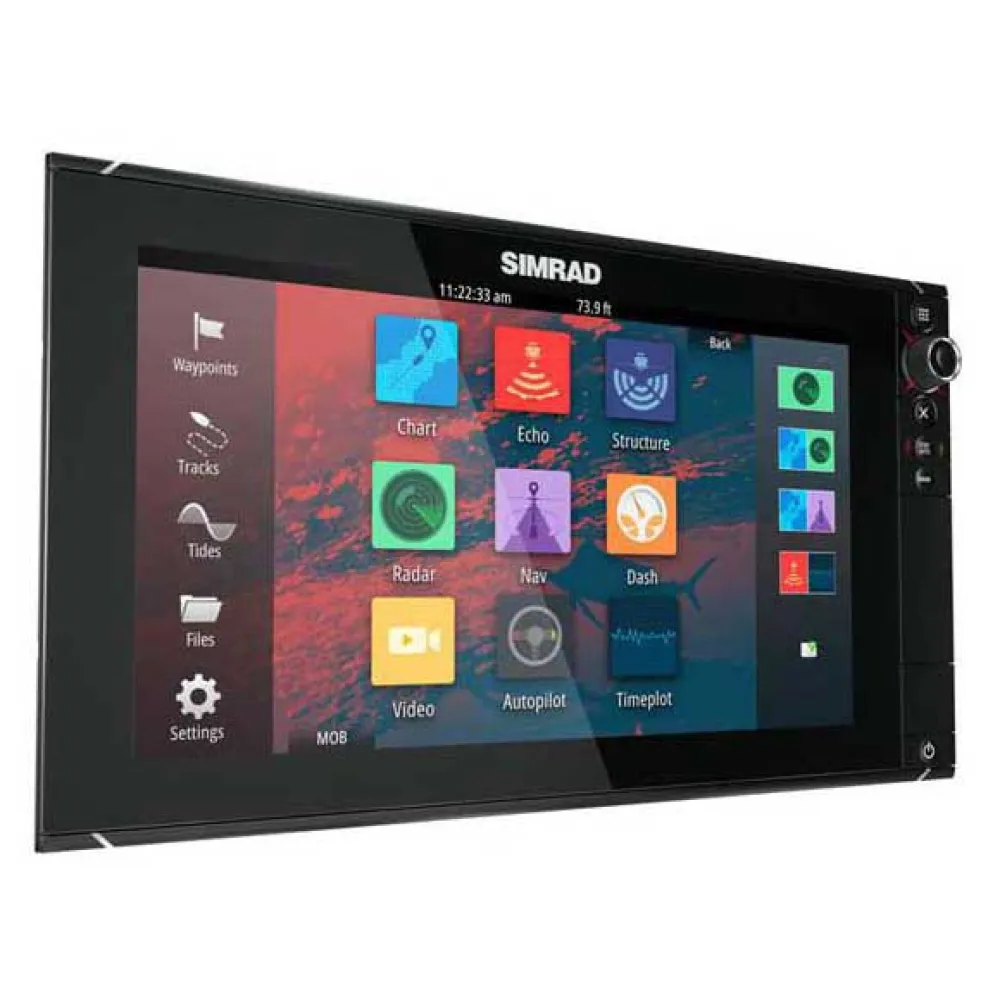

Simrad NSS16 evo2 with StructureScan

NSS16 evo2 Combo. Multi-function display. Built-in CHIRP Echosounder and StructureScan. Worldwide Basemap (No Detailed Cartography)


Key Features:

- Low Profile Glass Design
- More Screen, Less Border
- Widescreen, Multi Touch Display
- Built in High Gain 10Hz GPS/GLONASS
- Built in CHIRP/Traditional sonar
- Built in StructureScan
- 4 display sizes 7”, 9”, 12” & 16”
- High Brightness Displays
- All new HEROiC Software
- OP40 remote operable
- Chartplotter only versions available
- Networks with existing NSS, NSE, NSO series MFDs
- Networks with all Simrad Performance Modules
- 8mm Dash Profile: Family Matched with New MO Monitors
- OP40 Remote Controllable

HEROiC Software:

- All new HEROiC Software has been engineered for ease of use and to maximise the benefits of widescreen multi-touch display technology.
- HEROiC has an all new look and feel for Simrad while maintaining the familiar features for the seasoned Simrad user
- HEROiC has been designed for mixed-mode user control to provide a powerful multi touch user interface that can also be operated by a keypad when the sea conditions get challenging
- HEROiC software is more customisable, allowing users to completely configure the system to their needs.
- Personalised Wallpaper
- Fully customisable favourites that can be accessed by a long press of the ‘Home’ key: HEROiC utilizes multitouch gestures for object manipulation and menu access. These types of controls are mainstream in todays Tablet/Smartphone market and very intuitive and easy to adapt to.
- Pinch to zoom Chart, Echo, Radar
- Drag the status bar down from the top of the display to access system controls
- OP40 Remote Controllable


Software Features:

NSS evo2 inherits all the existing software feature from NSS RTM 3.0 plus more new for evo2:

- FLIR M-Series camera control
- OP40 Remote controllable
- Dual Radar
- 48RPM Radar Support
- BEP C-Zone Integration

Mercury VesselView Display Integration –Fusion Link Audio Support – including multiple audio servers –AIS SARTs –NMEA Data Logging –GRIB Weather support –Adjustable page split ratios and panel layouts –StructureMap overlay –BSM2 SW v 1.7 compatible


Specifications:

Enclosure: PC/ABS Plastic Rear Case, Glass Front:
- Operating Temperature: ´-15°C to +55°C (5° F to 131° F)
- Non-Operating Temperature: -20°C to +60°C
- Water Ingress: IPx7
- Weight: 5.3 kg
- Dimensions (WxHxD)mm: 429 x 246 x 105
- Display Brightness: 1200 nits
- Display Resolution: 1366 x 768
- Touch Screen - Projected
- Capacitance Multi Touch: Yes´
- Operating voltage: 9 - 31.2 V DC
- Power consumption (nominal): 33 W
- Low power standby mode: Yes
- Protection: reverse polarity and temporary over-voltage to 36V
- Conformity: CE, C-Tick, HDMI
- Keys: Rotary Dial with Push, Home, Exit, STBY/AUTO, Power (MARK key on 9´, 12´ &16´)
- NMEA 2000: 1 port on rear (Micro-C male)
- Built-in High Gain 10Hz GPS: Yes
- Bracket Mountable: VESA
- Traditional / CHIRP Sonar Port: YES
- Structure Sonar Port: YES
- HDMI Video Output: YES
- Chart Card Slot: Dual Micro SD
- Video Input: Yes - 2 channel Composite Video Input
- NMEA 0183: Yes - 1 Channel NMEA0183
- Ethernet Network Port: Yes 2
