Simrad QS80 Modules

QS80 Quickstick unidad remota con pantalla, cable de conexión de 6m, conector T, frontal, manual de usuario e instalación, junta para montaje empotrado, tornillos de montaje. Botones de Modo y posibilidad de tomar el control. Cambia el rumbo en modo Auto.

Enhance your heading control system with a choice of three full function remote controls. Each has a 35mm x 25mm (1”) display, are type approved, and can be desktop or panel (flush) mounted. Fully waterproof (IPx6 & IPx7), these remotes can be installed in the best location for efficient operations. All remotes are easily networked so installation is quick and simple with multiple remotes possible on one installation.

QS80:

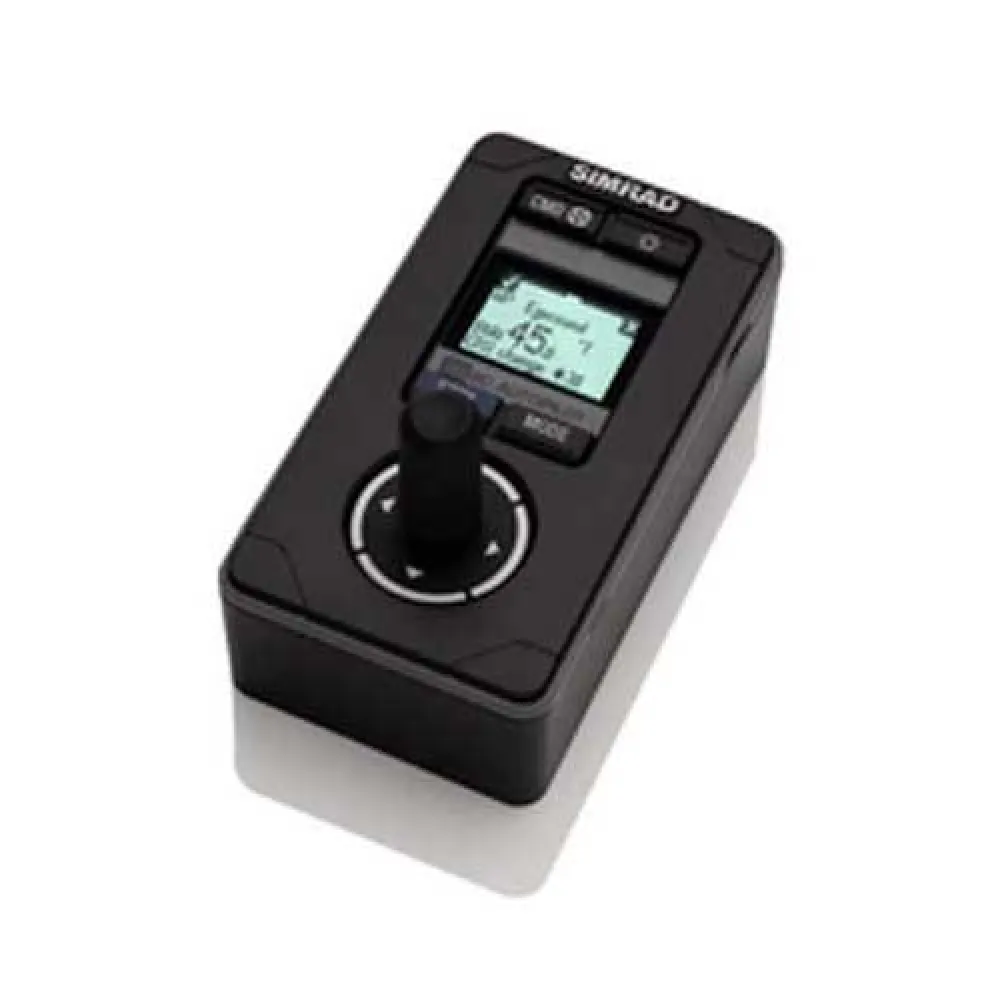

QUICKSTICKTM REMOTE UNIT - The QS80 (Quick Stick controller) operates the same way as NF80 when the joystick is kept to port or starboard. When the joystick is moved forward and released, the autopilot goes into automatic mode. When the joystick is moved backwards when automatic steering is active, the autopilot goes to standby. If the joystick is moved backwards when standby, the rudder moves to mid-position. The joystick has spring return to center position.


Specifications:

Display
- Display: Backlighting: LED red/white
- Display Type: Black and white
- Display Resolution [pixels x pixels]: 128x64

Technical/Environmental:
- Operating Temperature: 0 to +55°C
- Operating Temperature Stored: -32 to +70°C
- Water Resistance: IPx6
- Product Length [mm]: 80
- Product Width [mm]: 144

Power:
- NMEA 2000 Load Equivalency Number
