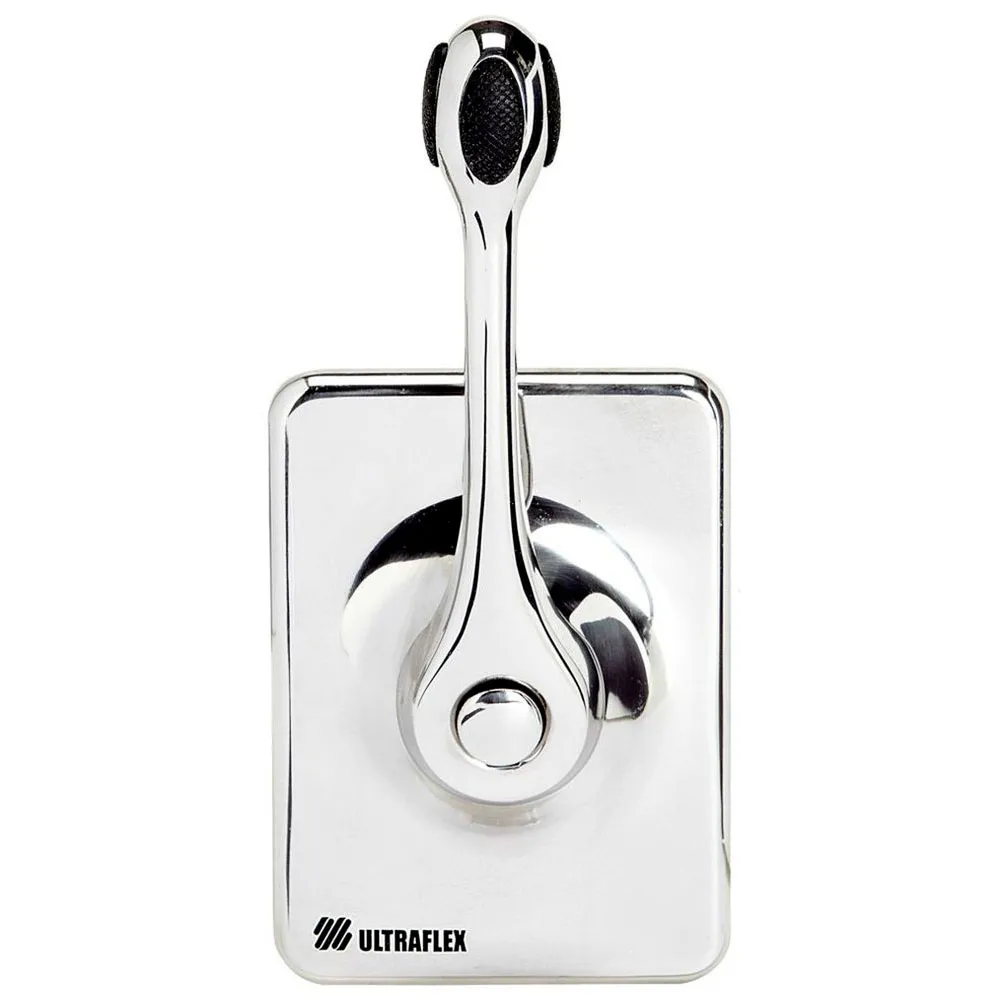

Ultraflex B400 Simple Lever Engine Control

ULTRAFLEX B400 Simple Lever Engine Control

Elevate your command on the water with the ULTRAFLEX B400 Simple Lever Engine Control, the premier choice for discerning boaters seeking precision, reliability, and sophisticated design. Engineered specifically for the demanding marine environment, the B400 provides intuitive, single-lever operation for both throttle and gear, simplifying your vessel´s handling and enhancing overall safety. Its modern, minimalist aesthetic makes it an ideal upgrade for any vessel, particularly sailboats where a clean, snag-free deck is paramount. Experience the confidence that comes with superior control and the peace of mind that comes from a product built to last.

The B400 is not just about looks; it´s a testament to intelligent engineering. The dual-action mechanism ensures a seamless transition between gas and inverter, while an integrated safety feature prevents accidental gear engagement unless the throttle is at idle. This crucial function makes docking, maneuvering in tight spaces, and general navigation significantly safer and less stressful. Built from the highest quality materials, this control lever is designed to withstand the harsh realities of saltwater, spray, and sun, promising years of dependable performance.

Levers

The ULTRAFLEX B400 features a robust, single-lever design that masterfully controls two critical functions: throttle (gas) and gear shifting (inverter). This dual-action capability streamlines helm operations, allowing the captain to manage the engine´s power and direction with one smooth, decisive motion. The lever itself is ergonomically crafted for a comfortable grip and positive feedback, ensuring you feel connected to your engine´s response. Its construction from premium materials guarantees longevity and flawless operation.

Technical Specifications
* Material: Lever and flange are constructed entirely from 316 Stainless Steel for maximum corrosion resistance and durability in marine environments.
* Prevents gear insertion if the throttle is not at a minimum (idle).
* Push-button hub for disengaging the inverter, allowing for engine warm-up in neutral.
* Compatible with the optional X41 safety switch, which enables a neutral-start-only function.
* Adjustability: Features an easily accessible clutch for fine-tuning accelerator friction and feel.
* Compliance: Conforms to EN ISO 11547 standards when used in conjunction with the optional X41 safety switch.
---

CONTROL BOX B400.

B400 bulkhead control box lever dual action:gas and inverter.

With a modern and essential design, without protrusions, which makes them particularly suitable for use on sailboats.

Lever and flange completely in 316 stainless steel for greater resistance to the marine environment.

They make driving easier and safer by automatically avoiding the insertion of the inverter if the gas is not at minimum.

They can be mounted on the right or left bulkhead, horizontally or vertically.

Easily accessible clutch to register the accelerator.

Pressing the button on the hub disengages the inverter during the engine heating operation.

Using the X41 safety switch , the engine can only be started with the inverter in the neutral position.

Conforming to EN ISO 11547 in the presence of the X41 safety switch
