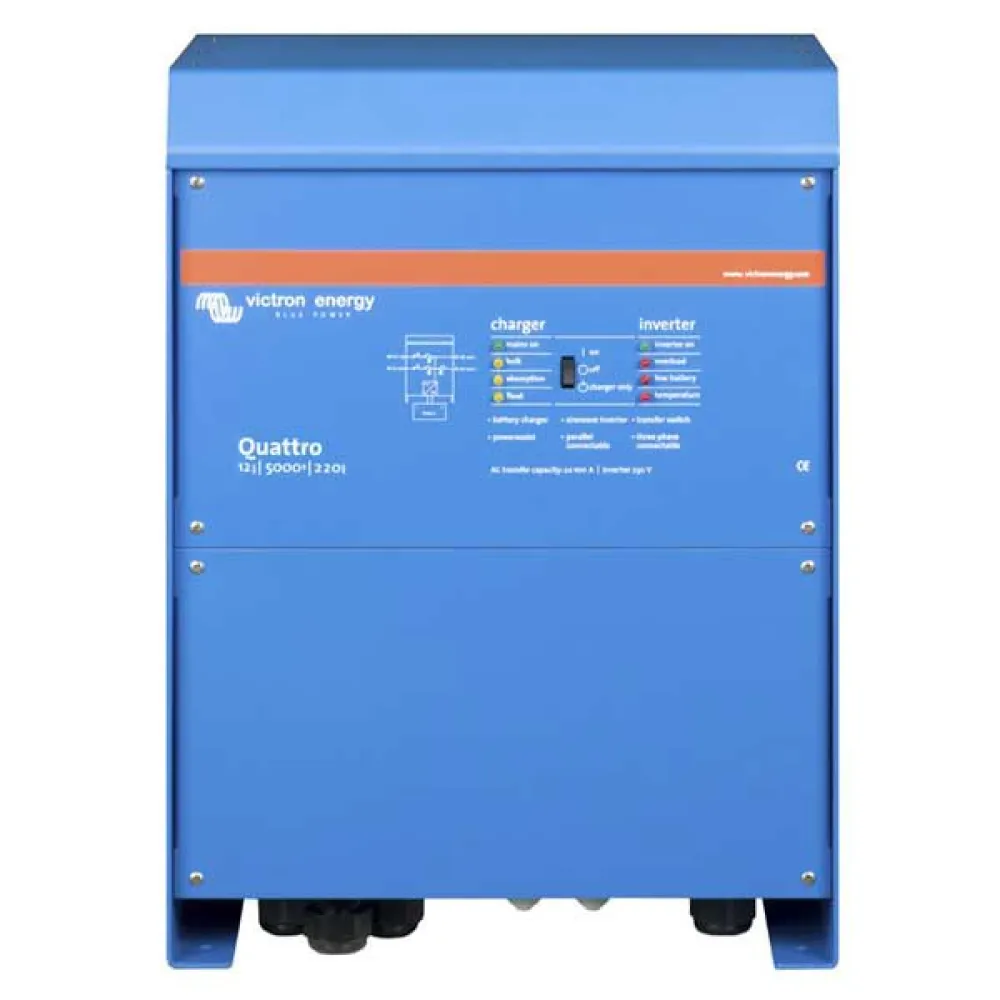

Victron Energy Quattro 12/5000/220-100100 Switch

Quattro Inverter/Charger 12/5000/220-100/100.

Two AC inputs with integrated transfer switch.

The Quattro can be connected to two independent AC power sources, e.g.

to the port socket or to a generator, or to two generators.

generator, or to two generators.

It will automatically connect to the active power supply.

Two AC outputs.

The main output has ´´no-break´´ functionality.

The Quattro takes over the supply to the connected loads in the event of a blackout.

connected loads in the event of a blackout or disconnection of the port/generator socket.

This happens so quickly.

(less than 20 milliseconds) that computers and other electronic equipment continue to operate without interruption.

without interruption.

The second output is only active when one of the Quattro´s inputs has AC power.

This output can be used to connect devices that should not be connected to AC power.

output can be connected to devices that should not discharge the battery, such as a water heater, for example.

Split-phase option.

A split-phase AC source can be obtained by connecting our autotransformer (see data sheet at.

www.victronenergy.com) to a ´´European´´ inverter programmed to supply 240 V/60 Hz.

Three-phase operating capability.

Three units can be configured for three-phase output.

But that´s not all:

up to 4 sets of three 15 kVA units can be.

connected in parallel to achieve an inverter output of 144 kW/180 kVA and over 2400 A load capacity.

PowerControl - In the event of limited generator, shore or grid output.

The Quattro is a very powerful battery charger.

It will therefore use a lot of current from the generator or the shore power socket (up to 16 A per Quattro).

(up to 16 A per 5 kVA Quattro at 230 VAC).

A current limit can be set for each of the AC inputs.

AC inputs.

The Quattro will then take the other AC loads into account and use the excess current for battery charging, thus avoiding overloading the batteries.

batteries, thus avoiding overloading the generator or the mains.

PowerAssist - Generator or shore power booster.

This function takes the principle of PowerControl to another dimension, allowing Quattro to supplement the capacity of the alternative source.

of the alternative source.

When a power peak is required for a short period of time, as is often the case, the Quattro will.

Quattro will immediately compensate for the possible lack of power from the mains or generator with power from the battery.

with power from the battery.

When the load is reduced, the excess power is used to recharge the battery.

Solar power:

AC power available even during a blackout.

The Quattro can be used in PV systems, whether grid-connected or off-grid, and in other alternative electrical systems.

Power failure detection software is available.

System configuration.

- In the case of a stand-alone application, if the configuration needs to be changed, this can be done in a matter of minutes using a.

minutes by means of a DIP switch configuration procedure.

- Parallel or three-phase applications can be configured with the VE.Bus Quick Configure and VE.Bus.

System Configurator software.

- Off-grid, grid-interactive and self-consumption applications involving grid-connected inverters and/or solar chargers can be configured with the VE.Bus Quick Configure and VE.Bus System Configurator software.

inverters and/or MPPT solar chargers can be configured with Wizards (application specific software).

specific applications).

On-site monitoring and control.

Several options are available:

Battery Monitor, Multi Control panel, Color Control GX and other devices,.

smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).

Remote monitoring and control.

Colour Control GX and other devices.

Data can be stored and displayed free of charge on the VRM website (Victron.

Remote Management).

Remote configuration.

Data can be accessed and settings of systems with Color Control GX or other GX devices can be changed if connected to Ethernet.

connected to Ethernet.
