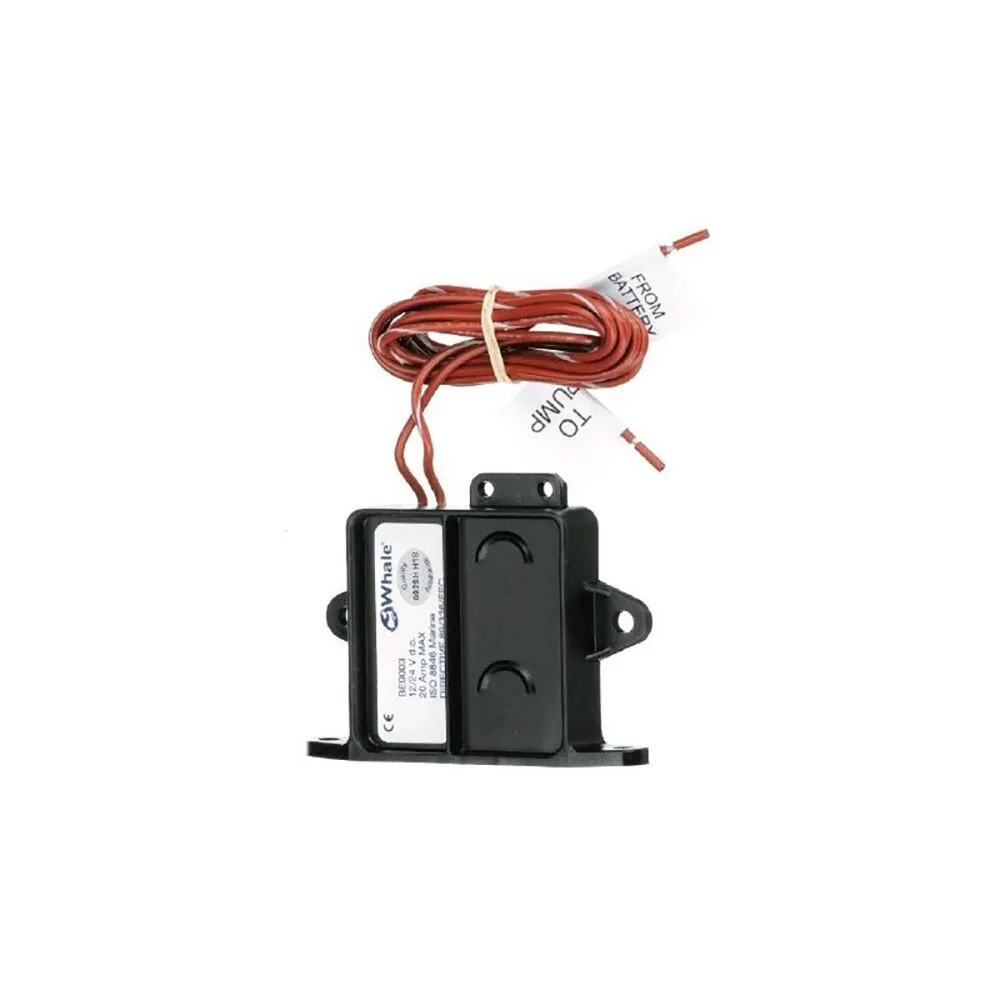

Whale Automatic electric pump switch

WHALE Automatic Electric Pump Switch | Solid-State Reliability

Experience the next generation of automated water management with the WHALE Automatic Electric Pump Switch. Engineered for unparalleled reliability and performance, this advanced switch eliminates the common failures associated with traditional mechanical float switches. Designed for discerning boat owners, RV enthusiasts, and anyone in need of a dependable water pumping solution, this device offers true "fit and forget" convenience. Its core innovation lies in its complete lack of moving parts, which are the primary source of jamming, sticking, and failure in conventional switches. By utilizing sophisticated technology, this switch provides precise and consistent pump activation, ensuring your bilge, shower sump, or grey water tank is managed efficiently and without manual intervention.

The WHALE Automatic Electric Switch is built to protect your entire pumping system. A key benefit is the integrated time delay, which prevents the pump from rapid, short cycles. This intelligent feature allows water to accumulate to an optimal level before activating the pump and ensures it runs for a sufficient duration to clear the water, significantly reducing motor wear and tear and extending the life of your pump. The electronics are completely potted and sealed in a robust, compact housing, making the switch entirely waterproof and impervious to bilge contaminants like oil, fuel, and debris. This robust construction guarantees long-term, maintenance-free operation even in the harshest marine and mobile environments.

Key Benefits:

* Unmatched Reliability: Features advanced solid-state sensing with no moving parts to stick, jam, or break, offering superior dependability over traditional float switches.
* Enhanced Pump Protection: An integrated time delay prevents rapid on-off cycling, protecting the pump motor from burnout and prolonging its service life.
* Effortless Automatic Control: Senses the presence of water automatically, activating and deactivating your pump as needed for true hands-free operation.
* Durable and Maintenance-Free: The fully sealed and waterproof electronic housing is immune to water ingress and contaminants, ensuring zero maintenance is required.
* Low Power Consumption: Engineered for efficiency, it draws minimal power when on standby, preserving your battery life for essential systems.

Main Features:

* Solid-state electric field sensor technology for water detection.
* Integrated 3-second time delay to optimize pump cycles.
* Completely sealed, fully potted electronics for ultimate waterproof protection.
* Designed to operate effectively in fresh, grey, or salt water.
* Environmentally friendly design, free from toxic mercury.
* Simple two-wire installation integrates seamlessly with any compatible electric pump.

Technical Specifications:

* Product Type: Automatic Pump Control Switch
* Voltage Compatibility: Suitable for 12V or 24V DC systems
* Maximum Current: Up to 20 Amps
* Standby Current Draw: Less than 10 mA
* Activation Water Level: Approximately 45 mm (1.75 inches)
* Deactivation Water Level: Approximately 13 mm (0.5 inches)
* Wire Gauge: 16 AWG
* Ingress Protection: IP68 Rated (Protected from long-term immersion)

Ideal for controlling bilge pumps, shower drain pumps, and grey water tank pumps in boats, yachts, RVs, and other mobile applications, the WHALE Automatic Electric Pump Switch is the definitive upgrade for a smarter, more reliable water management system
