Ancor Bilge Pump Cable 14/3 76 m

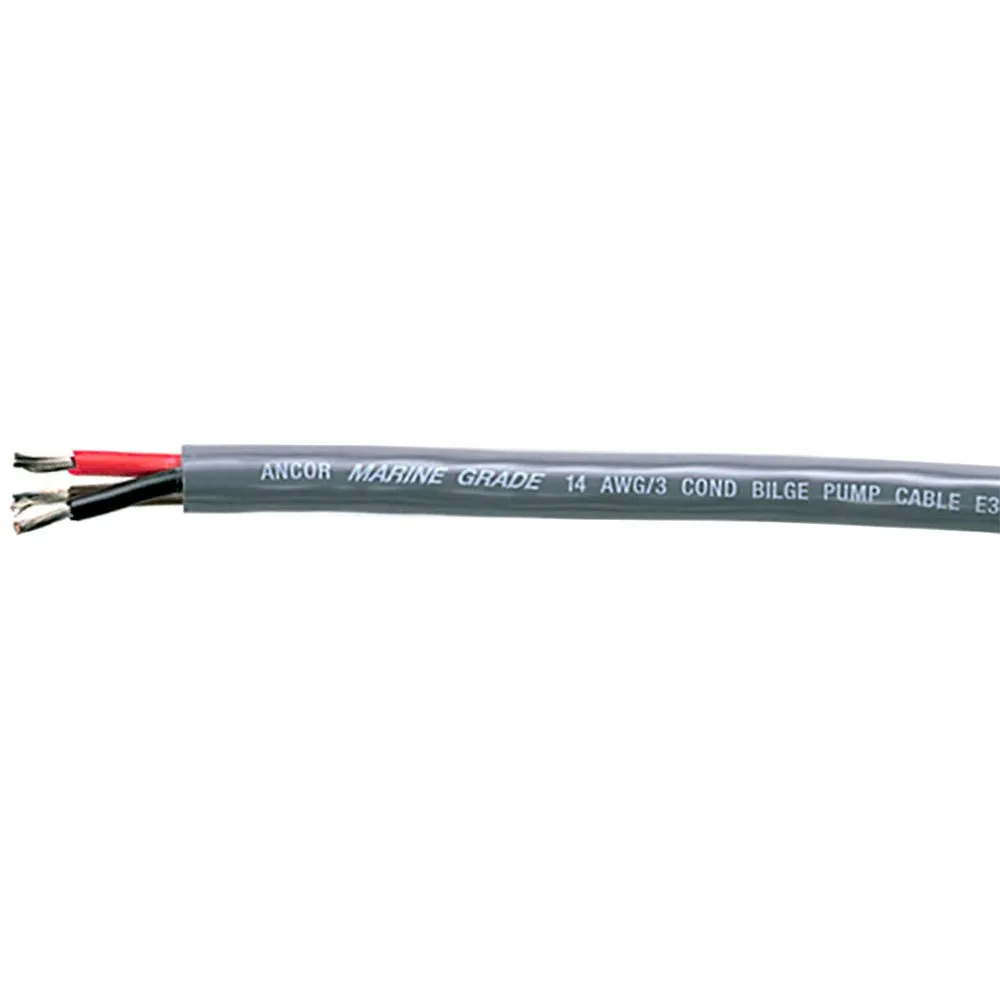

ANCOR Marine Grade Bilge Pump Cable 14/3 - 76 m Spool

Ensure the heart of your vessel´s safety system operates flawlessly with the ANCOR Marine Grade Bilge Pump Cable. Specifically engineered for the demanding and often harsh conditions of the marine environment, this 76-meter (250 ft) spool of 14/3 cable is the professional´s choice for wiring bilge pumps, ensuring unparalleled reliability when you need it most. Don´t compromise on safety; invest in a wiring solution designed to last the life of your boat.

This premium cable is built to exceed all industry standards, providing you with the ultimate peace of mind. Its construction is a testament to ANCOR´s commitment to quality, offering superior protection against the elements that typically degrade lesser-quality wires. From saltwater spray to engine room heat and chemical exposure, this cable is designed to endure and perform.

Key Benefits:

* Unmatched Durability: Engineered with a proprietary vinyl insulation that resists saltwater, battery acid, oil, gasoline, heat, abrasion, and ultraviolet radiation. This robust jacketing ensures the integrity of your electrical connections for years to come, preventing costly and dangerous failures.
* Superior Corrosion Resistance: Featuring finely stranded, Type 3 tinned copper conductors, this cable offers maximum protection against corrosion and electrolysis. This is critical for maintaining a reliable electrical flow in a humid, salt-laden marine environment.
* Enhanced Safety and Compliance: Exceeds all UL 1426, ABYC, and US Coast Guard (CFR Title 46) standards. Using ANCOR cable ensures your vessel´s wiring is compliant, safe, and up to code, which is essential for insurance and survey purposes.
* Exceptional Flexibility: The high-strand-count copper conductors provide maximum flexibility, making the cable easier to route through tight spaces and bulkheads. This flexibility also allows it to withstand the constant stress of vibration and movement common on any vessel, preventing work-hardening and fatigue.

Main Features:

This triplex cable is specifically configured for standard bilge pump installations, including those with automatic float switches and manual override controls. The unique insulation is designed to be easily stripped for faster, cleaner installations.

Features black brown and red conductors.

Gray insulation.

The heavy-duty insulation remains flexible even in extreme cold (-40°C) and is rated for high-temperature engine room use, ensuring consistent performance across a wide range of operating conditions.

---

Technical Specifications

* Attribute: Cables
* Product: ANCOR Bilge Pump Cable
* Gauge (AWG): 14
* Number of Conductors: 3
* Conductor Colors: Black, Brown, Red
* Jacket Color: Gray
* Length: 76 m / 250 ft
* Conductor Material: Tinned Copper
* Conductor Stranding: Type 3
* Insulation Material: Proprietary Marine Grade Vinyl
* Voltage Rating: 600V
* Temperature Rating: 105°C (221°F) dry; 75°C (167°F) wet
* Applicable Standards: UL 1426, ABYC E-11.14, US Coast Guard CFR Title 46
