Bep Marine I/O Channels & MOSFET Interface Only Czone Control X Plus Module

BEP Marine CZone Control X Plus Module | Advanced Digital Switching & Automation

Revolutionize your vessel´s electrical system with the BEP Marine CZone Control X Plus Module, the next generation in intelligent digital control and monitoring. Designed for the modern boat builder and owner, this powerful module replaces complex and cumbersome traditional wiring with a robust, centralized, and intuitive solution. By simplifying installation and providing unparalleled control over all onboard circuits, the Control X Plus enhances reliability, safety, and the overall user experience on the water. It serves as a core component in a sophisticated CZone network, allowing for seamless automation and management of everything from lighting and pumps to electronics and entertainment systems, all from your multi-function display (MFD) or a dedicated CZone screen.

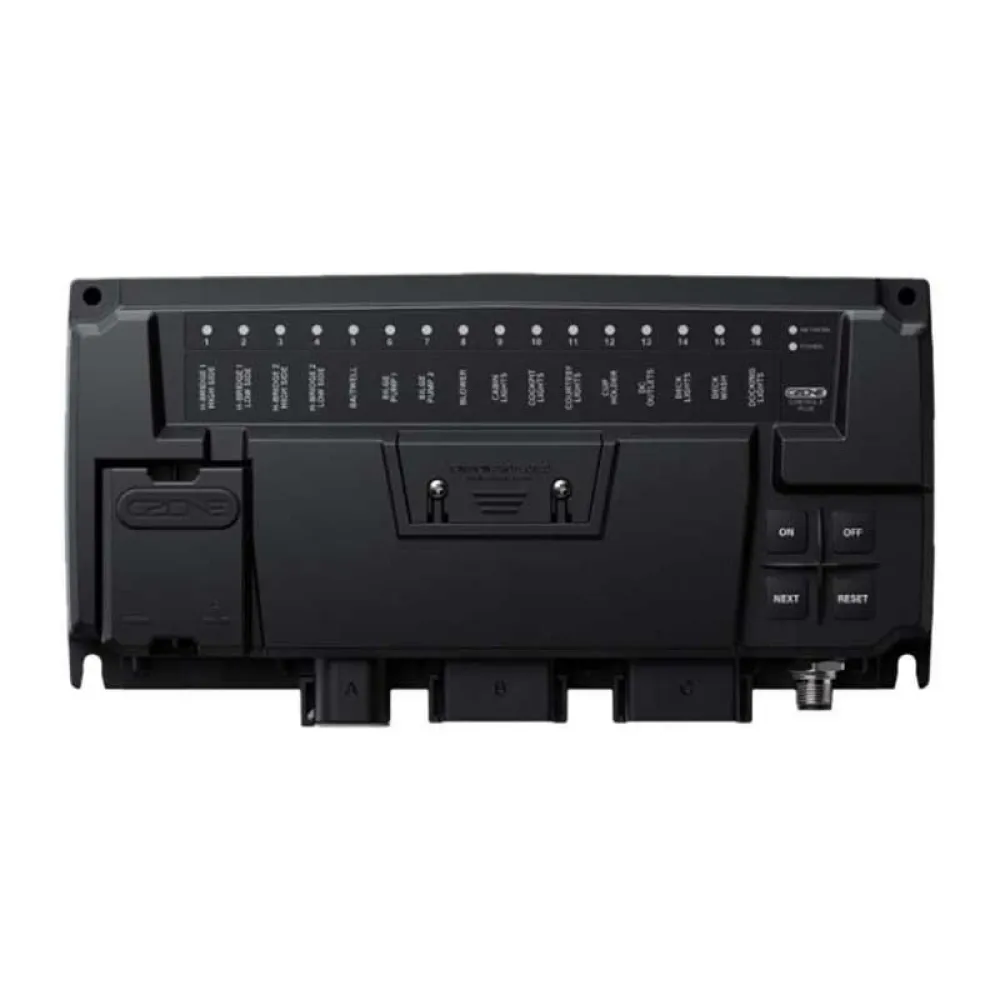

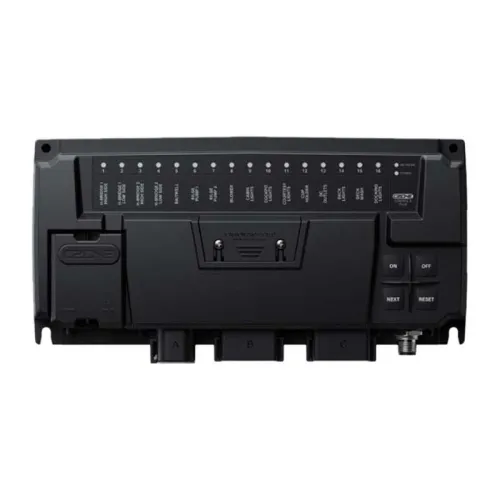

This is the Control X Plus Czone module, with I/O channels and MOSFET - interface only. It is engineered to be the backbone of your digital switching system, offering a high-density I/O count in a compact and ruggedized package. Its advanced capabilities allow for the creation of custom modes—such as "Night Running," "Docking," or "Fishing"—that configure multiple circuits with a single touch, ensuring your vessel is perfectly set up for any situation instantly.

Key Benefits:

* Simplified Installation & Reduced Weight: Drastically minimizes the amount of cabling required, saving significant installation time, reducing overall vessel weight, and eliminating potential points of failure found in traditional wiring harnesses.
* Centralized, Intuitive Control: Consolidate control of all your DC systems onto a single interface. Manage circuits directly from your NMEA 2000 compatible MFD (Simrad, Lowrance, B&G, Garmin), a dedicated CZone Touch Display, or even a connected tablet.
* Enhanced Reliability and Safety: Features robust solid-state MOSFET technology, which eliminates the need for mechanical relays. Integrated electronic fuses with trip-and-reset functionality provide superior circuit protection without the hassle of carrying and replacing physical fuses.
* Advanced Automation & Customization: Program sophisticated control logic and automated sequences. Set timers for lights, create one-touch modes for specific activities, and receive alerts for critical system events like low voltage or high current draw.
* Scalable System: The Control X Plus is one of the essential building blocks of the CZone ecosystem. Easily expand your network by adding other CZone modules to accommodate vessels of any size and complexity, ensuring a future-proof solution.

Main Features:

* Complete CZone Control and Monitoring System in a Single Module
* NMEA 2000 Network Compatible for Seamless Integration
* 6 x High-Power Output Channels (15A MOSFET) for DC Loads
* 4 x Digital Input Channels (Switch to Ground)
* 4 x Analog Input Channels (0-32V or 0-1000 Ohms for Sensors)
* Integrated Electronic Fuses with Resettable Fault Protection
* Manual Bypass and Override for Each Channel via Physical Fuses
* Status Indication LEDs for Power, Network, and Each Output Channel
* IPX5 Water Ingress Protection for Durability in Marine Environments
* Compact Footprint for Flexible Installation Options

Technical Specifications:

* Nominal Voltage: 12V / 24V DC
* Maximum Current Rating: 75A Total Module Current
* Output Channels: 6x15A (MOSFET, Dimmable, High or Low Side Drive)
* Input Channels: 4 x Digital (Active Low), 4 x Analog (Voltage/Resistance)
* Connectivity: 1 x NMEA 2000 Micro-C Port
* Protection: IPX5 Water Ingress
* Certifications: CE, ABYC, NMMA
* Dimensions (LxWxH): 204x130 x 46 mm (8.0" x 5.1" x 1.8")
* Operating Temperature: -15°C to +55°C (5°F to 131°F)
