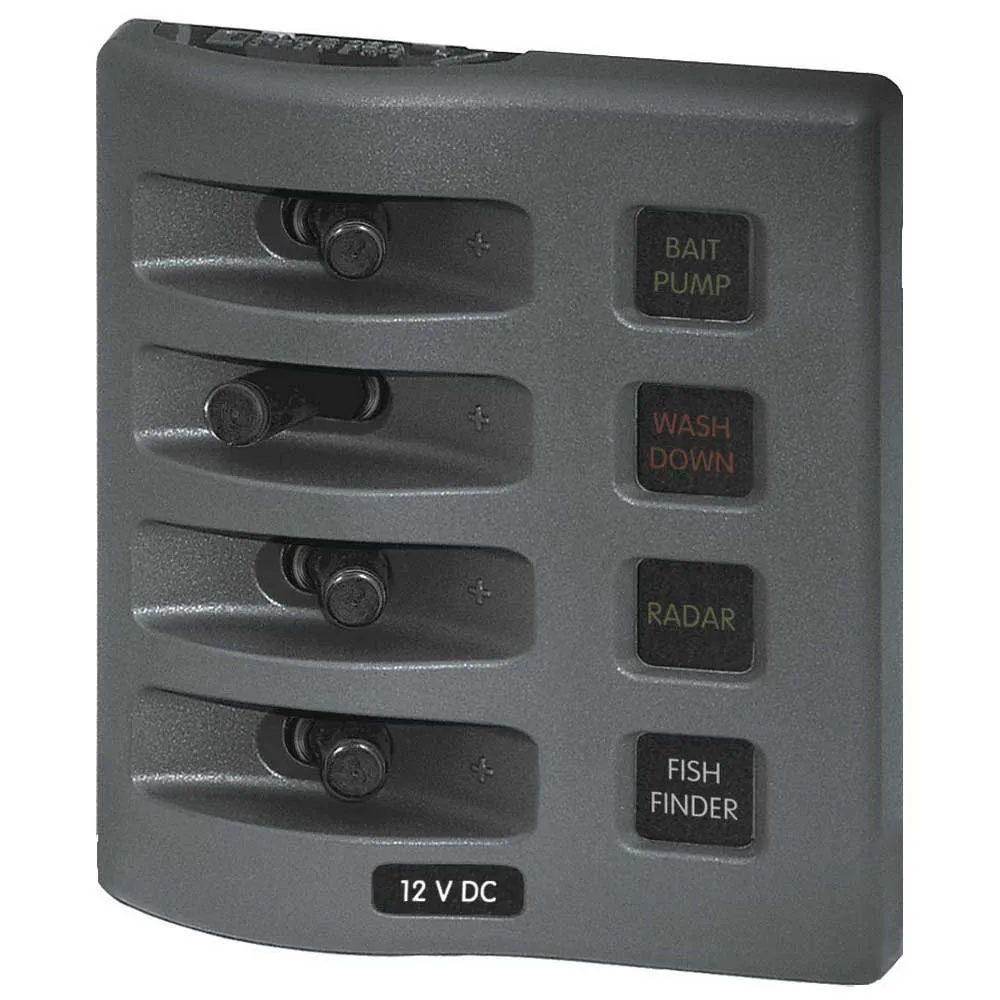

Blue Sea Systems Weatherdeck Panel 4 Position Switch

BLUE SEA SYSTEMS WeatherDeck Panel 4 Position Switch - Waterproof Marine Control

Category: Electronics
Subcategory: Electrical connections

Take command of your 12V DC marine electrical systems with the BLUE SEA SYSTEMS WeatherDeck 4 Position Switch Panel. Engineered for ultimate durability and IP67 waterproof protection, this panel is ideal for exposed locations, safeguarding your essential circuits from rain, spray, and washdowns. Its robust, UV-stabilized polycarbonate construction ensures longevity. Enjoy clear control with four illuminated ON-OFF rocker switches and customize your helm lighting with independent label backlighting. Simplified installation includes a watertight gasket and a comprehensive set of 60 DC labels. Essential for reliable power management in demanding marine environments.

Designed specifically for the harshest marine conditions, the WeatherDeck panel is the perfect command center for open cockpits, flybridges, and any area exposed to the elements. Its superior construction ensures that your critical onboard systems, such as navigation lights, bilge pumps, and communication equipment, remain operational and protected from water intrusion, providing you with unwavering confidence and safety on the water. The panel´s design not only offers exceptional functionality but also integrates seamlessly into any modern helm, providing a clean, professional look while delivering rugged performance.

Switches

At the heart of this panel are its high-performance switches. You get direct control via four industry-leading, illuminated ON-OFF rocker switches that are built to withstand the rigors of marine use. These heavy-duty switches are designed to provide positive tactile feedback, even when wearing gloves, ensuring confident operation in any sea state. The bright LED illumination activates when the switch is in the ON position, offering instant visual confirmation of your circuit´s status, which is critical for safe operation day or night. This immediate feedback reduces guesswork and enhances overall operational safety at the helm.

Key Features:

* IP67 Waterproof Protection: Rated to withstand immersion in water up to 1 meter for 30 minutes, offering complete protection against dust, heavy rain, and powerful sea spray.
* UV-Stabilized & Corrosion-Resistant: Built to endure constant exposure to harsh sunlight and saltwater environments without cracking, fading, or degrading over time.
* Independent Label Backlighting: Features a separate circuit for the backlight illumination of the circuit labels. This allows you to switch on helm lighting for easy viewing in the dark, independent of the main rocker switches, helping to preserve night vision and conserve power.
* Simplified Watertight Installation: The included mounting gasket creates a secure, watertight seal against the mounting surface, ensuring a clean and protected installation that prevents water from getting behind the panel.
* Enhanced Visibility: The illuminated rocker switches provide clear "ON" indication, visible even in bright daylight, while the backlit labels ensure you can identify each circuit effortlessly in low-light conditions.

Technical Specifications
* Positions: 4
* Nominal Voltage: 12V DC / 24V DC
* Maximum Amperage (Panel Total): 45A
* Switch Rating (per switch): 20A @ 12V DC, 15A @ 24V DC
* Waterproof Rating: IP67
* Panel Material: Reinforced Polycarbonate
* Dimensions (H x W): 4.25" (107.95 mm) x 4.88" (123.95 mm)
* Mounting Screw Size: 6 (x4)
* Backlight Amperage Draw: 10mA per label position
