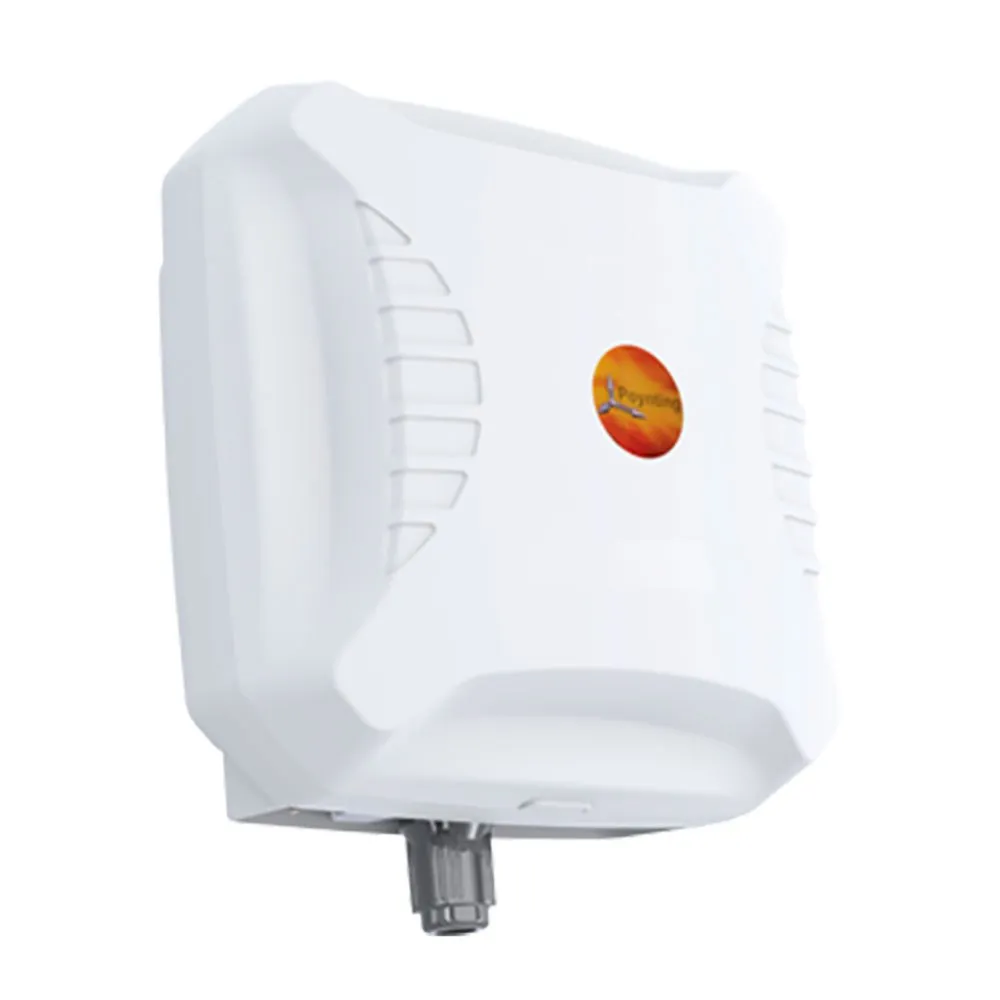

Fischer Panda EPNT-1 Omnidirectional Antenna

FISCHER PANDA EPNT-1 Omnidirectional Antenna

Experience unparalleled connectivity and signal stability with the FISCHER PANDA EPNT-1 Omnidirectional Antenna. As a critical component in the Electronics and Antennas category, this advanced multi-band antenna is engineered for demanding environments, providing a robust and reliable communications link for marine, IoT, and M2M applications. The EPNT-1 is a sophisticated all-in-one solution designed to simplify your setup while maximizing performance, integrating multiple antennas into a single, rugged housing.

Its true omnidirectional design ensures a consistent and strong 360° reception pattern, crucial for mobile applications like vessels, RVs, and commercial vehicles where orientation is constantly changing. This eliminates the need for frequent adjustments and guarantees the best possible signal lock on available cellular and Wi-Fi networks. By leveraging advanced MIMO (Multiple-Input, Multiple-Output) technology for both LTE and Wi-Fi, the EPNT-1 significantly enhances data throughput and link reliability, allowing for faster download/upload speeds and a more stable connection, even in areas with weak signal coverage.

The FISCHER PANDA EPNT-1 Omnidirectional Antenna in white is a top-of-the-line choice for any electronic or communications setup. This technologically advanced antenna is expertly engineered to provide superior signal strength and coverage in all directions, ensuring that your communication stays reliable and uninterrupted. Made with high-quality materials and built to last, the FISCHER PANDA EPNT-1 is a versatile and dependable option for all of your communication and electrical needs. This antenna is perfect for boats, RVs, and other mobile setups, as it delivers exceptional performance even in rugged conditions. With its easy-to-install design and exceptional quality, the FISCHER PANDA EPNT-1 Omnidirectional Antenna is the perfect choice for anyone in need of a reliable and long-lasting electronic antenna solution. Browse our selection today to find the perfect antenna to suit your needs.

Main Features:

* Wideband Cellular Coverage (4G/LTE/5G Ready)
* Dual-Band Wi-Fi MIMO Technology
* High-Precision Active GPS/GLONASS Module
* True Omnidirectional Radiation Patterns
* Robust, Weatherproof, and UV-Stable Housing
* Simplified Single-Mount Installation Footprint
* Cross-Polarized Elements for Enhanced Performance

Attribute:
Antennas

Technical Specifications:

* 698 - 960 MHz
* 1710 - 2700 MHz
* 3400 - 3800 MHz
* Cellular Peak Gain: 5 dBi
* 2400 - 2500 MHz
* 5000 - 6000 MHz
* Wi-Fi Peak Gain: 7.5 dBi
* GPS/GLONASS Frequency: 1575.42 MHz / 1602 MHz
* GPS/GLONASS Gain (LNA): 21 dBi
* Polarisation: Linear Vertical and Horizontal
* VSWR: < 2.5:1 across 90% of bands
* Voltage Input (GPS/GLONASS): 3 - 5.5 V
* Ingress Protection Rating: IP65
* Impact Resistance: IK08
* Dimensions (Ø x H): 196 mm x 170 mm
