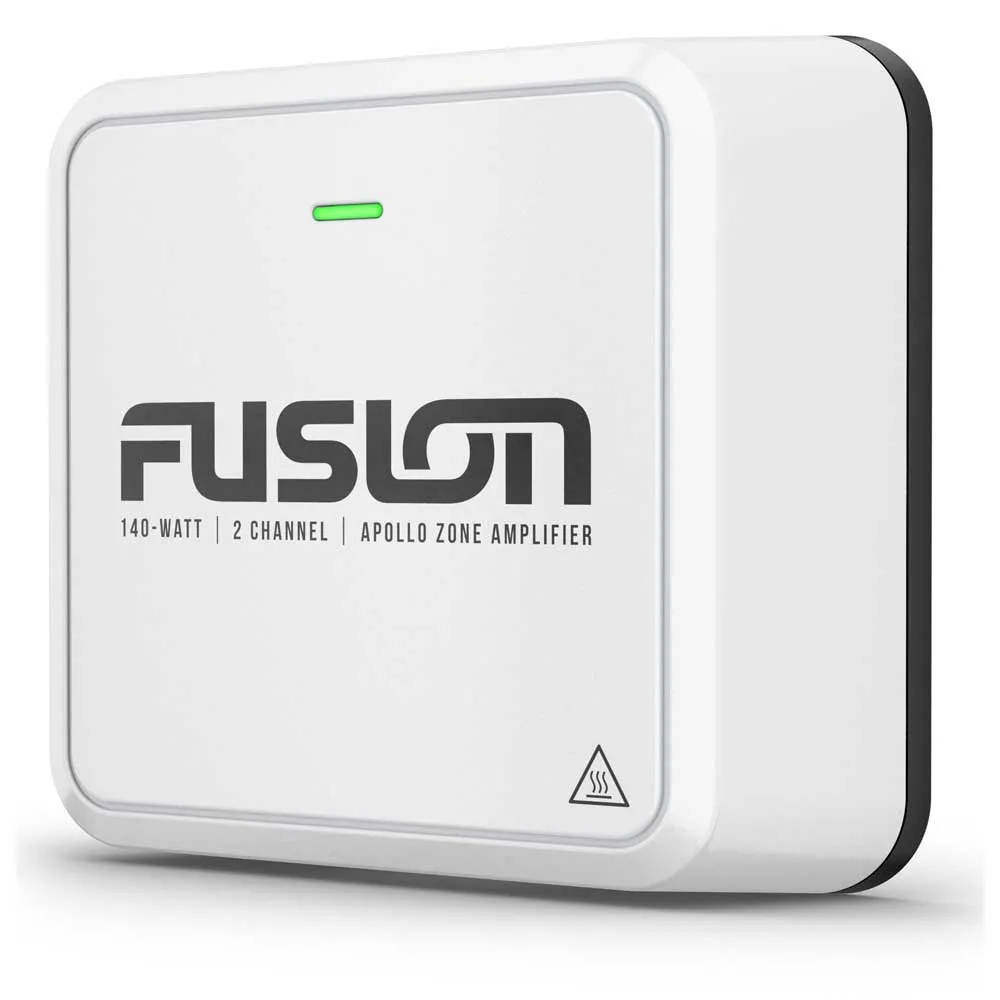

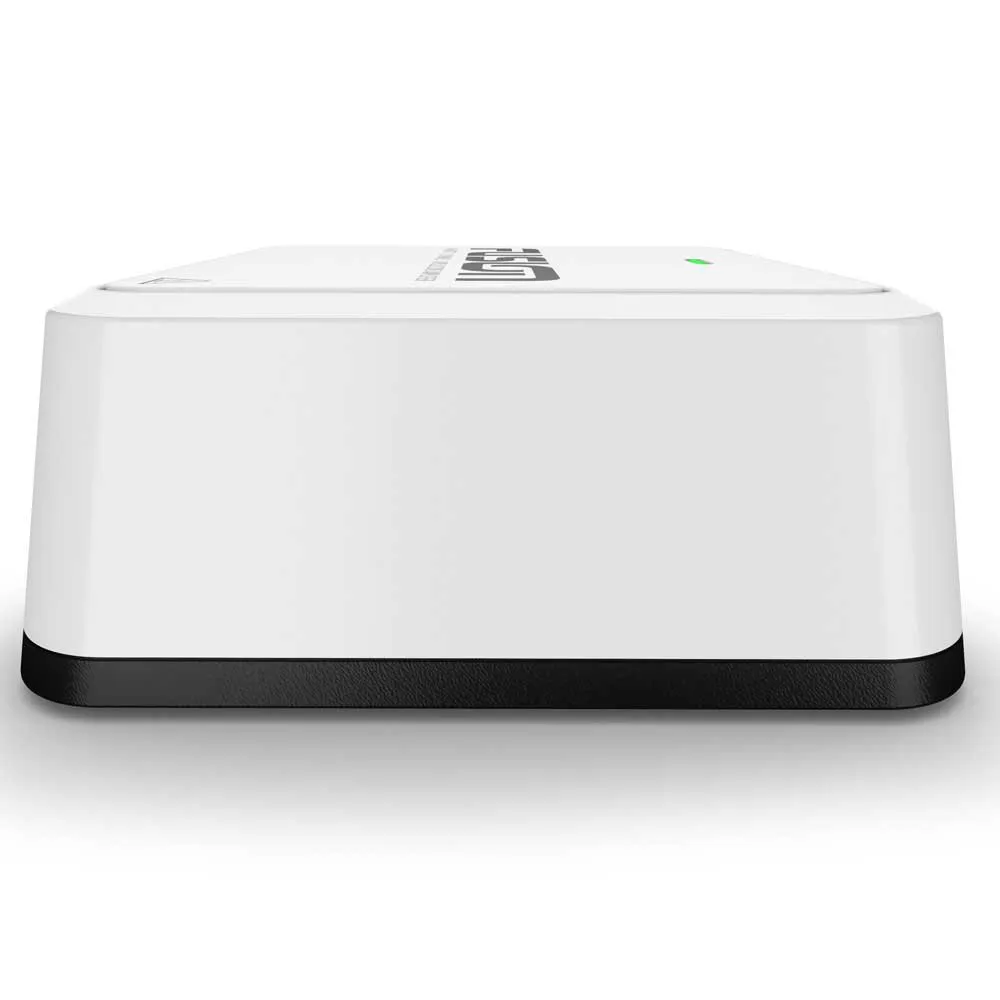

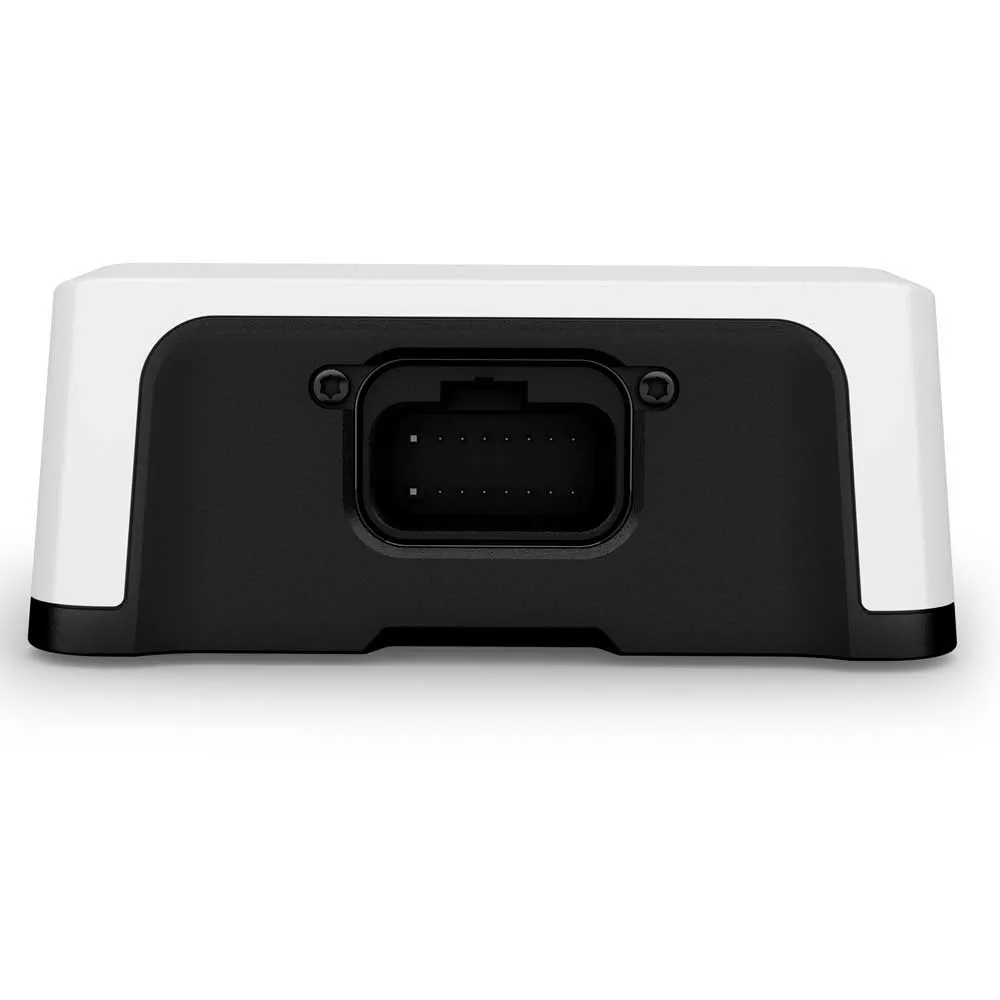

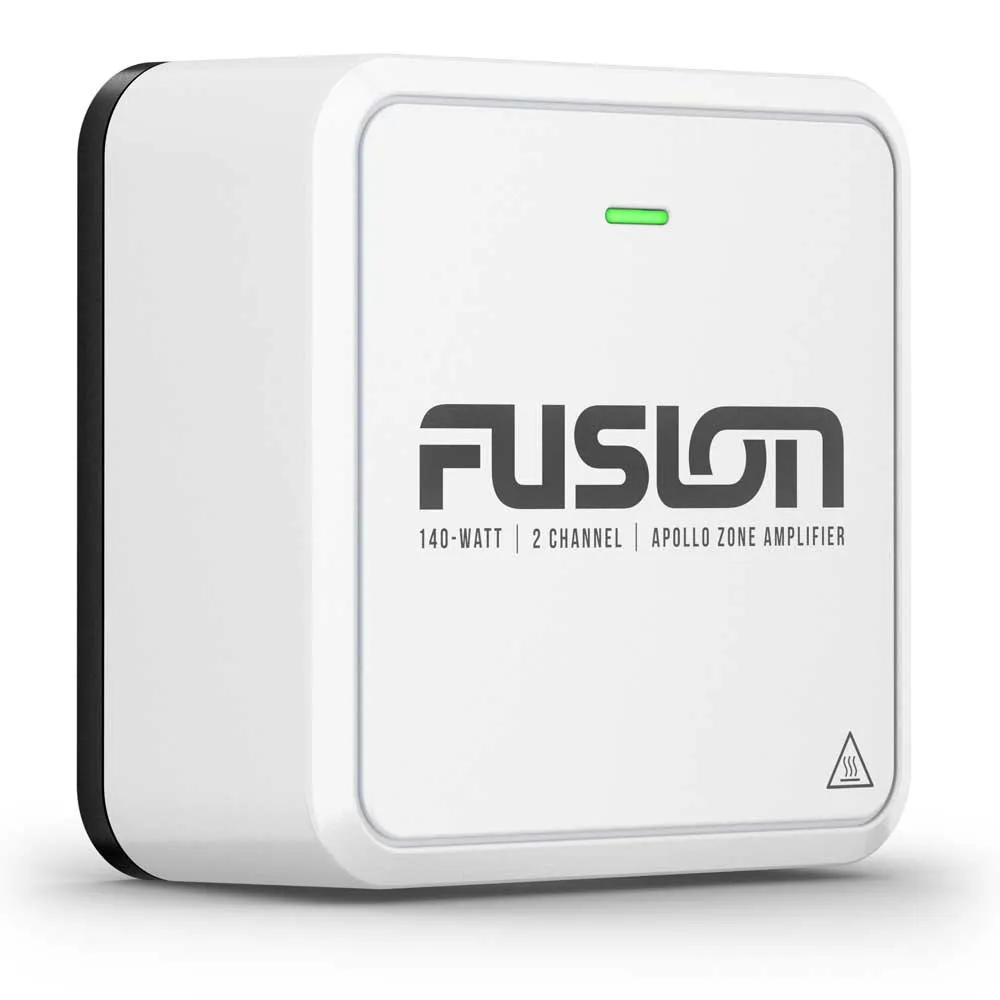

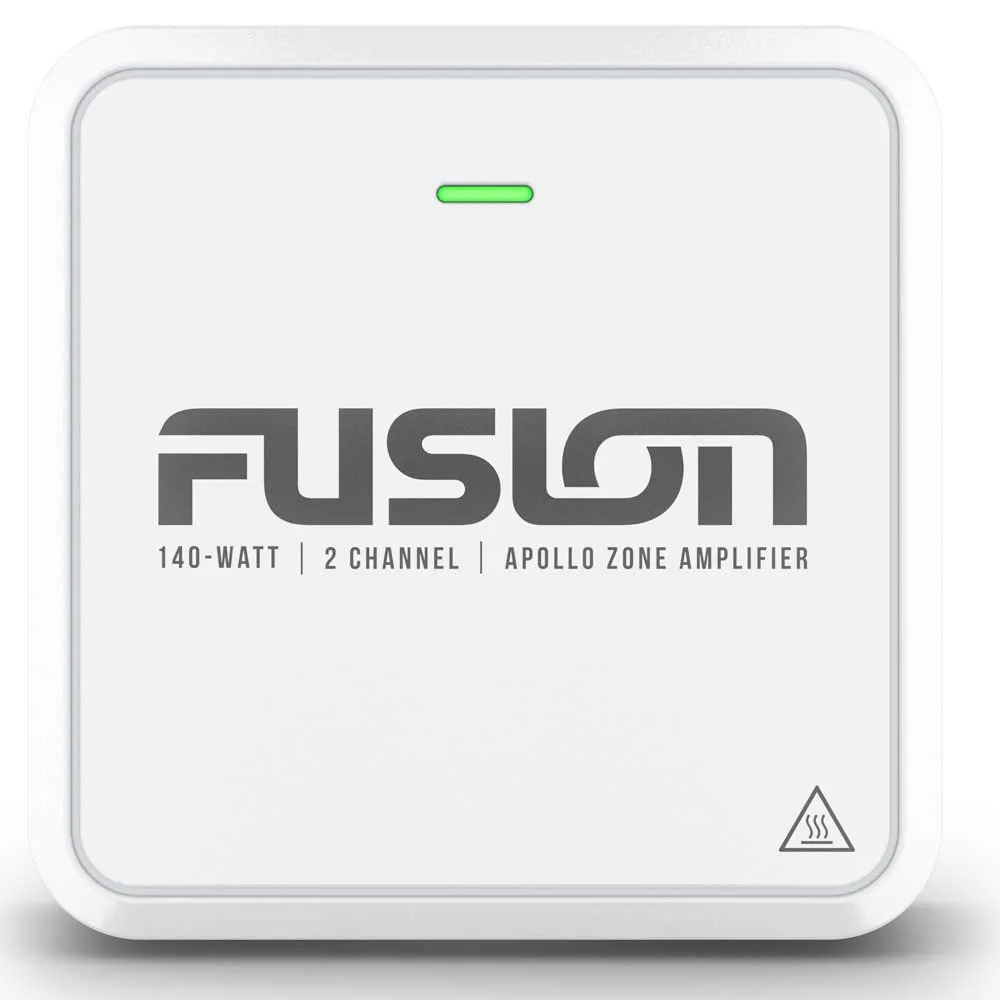

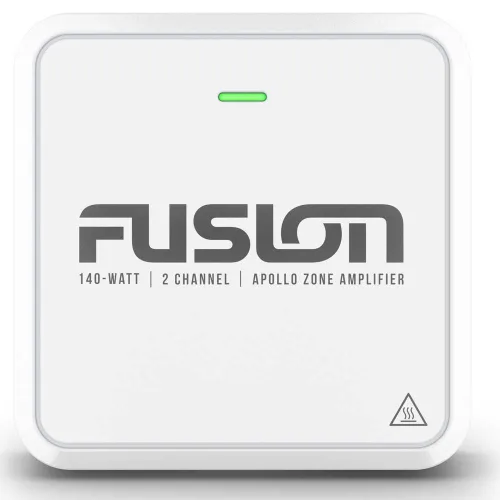

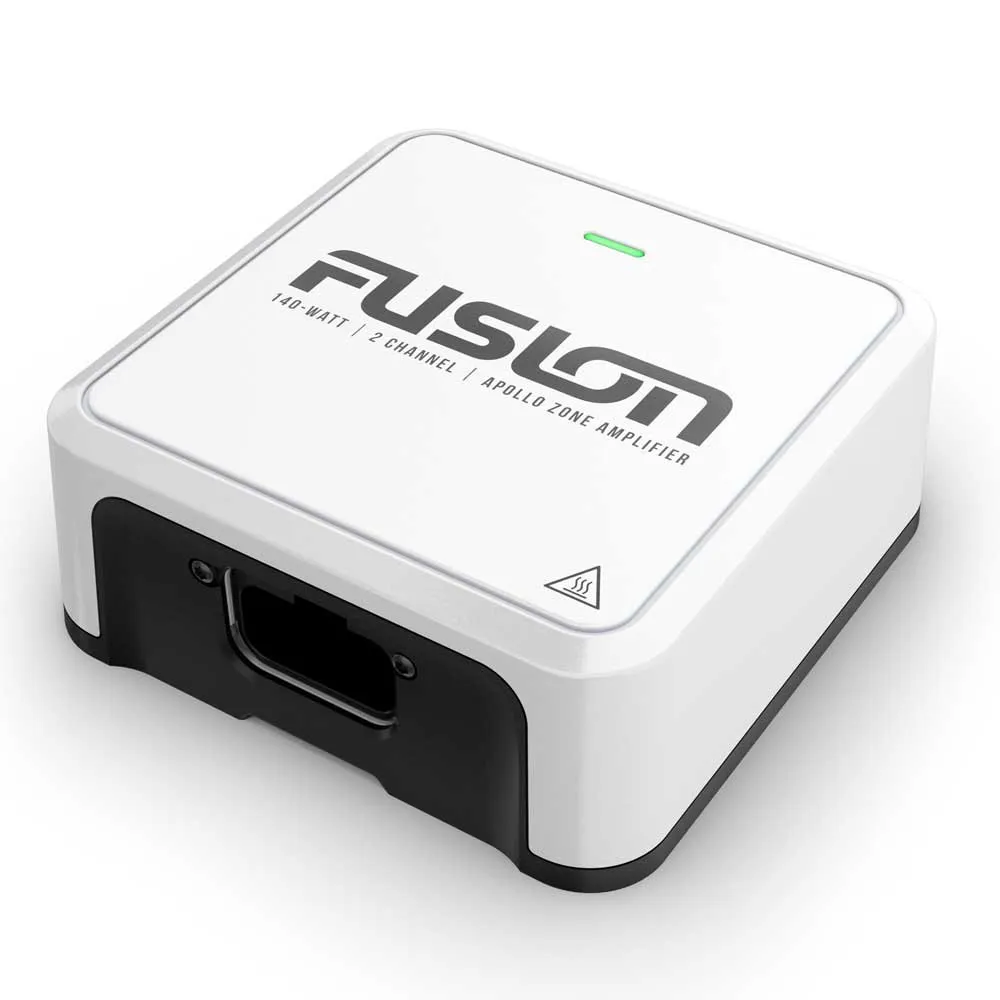

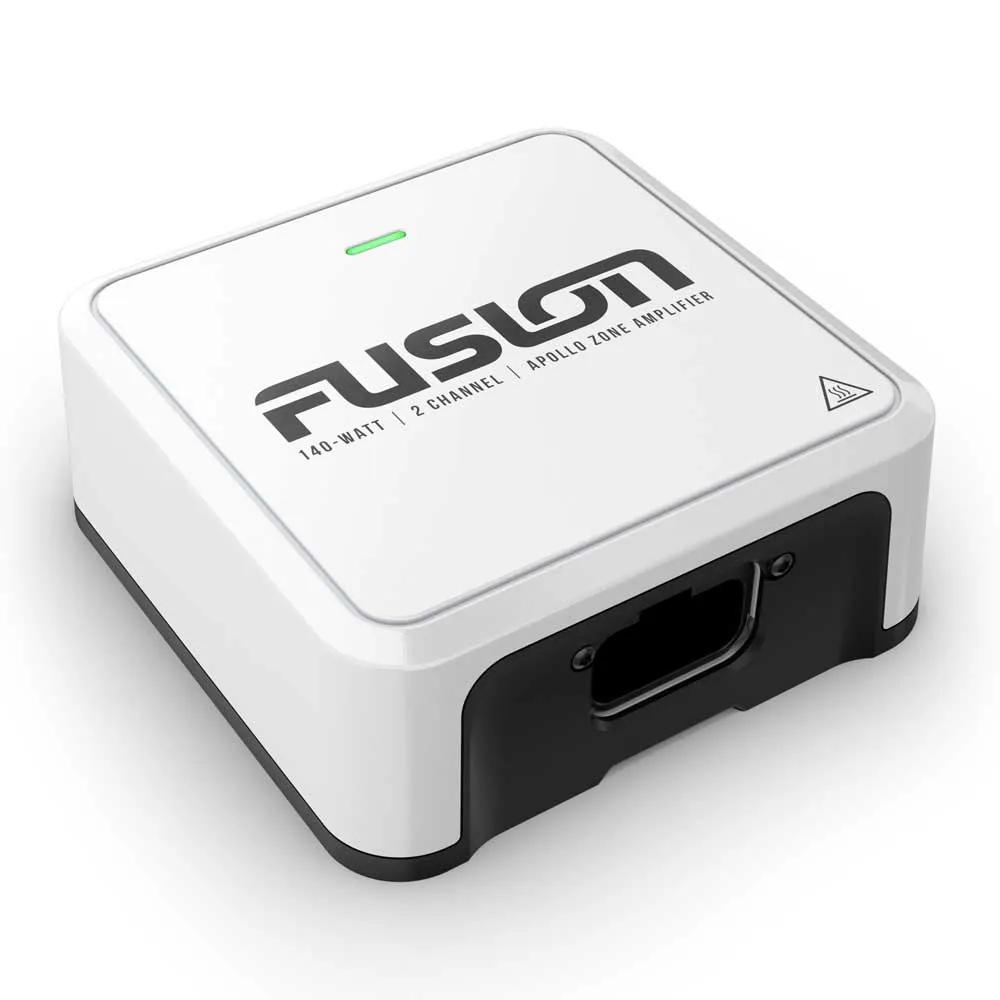

Fusion Apollo™ Marine Amplifiers

It´s the difference between hearing the music and feeling it.

Amplify the moment with an Apollo™ marine amplifier.

- designed specifically for use with your Fusion® DSP-enabled marine stereo and Fusion speakers.

This efficient zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat.

With 20-watt RMS per channel (at 4 ohm), this 2 channel amplifier allows you to add an extra pair of speakers on board.

The Easy Tune feature automatically regulates audio settings for the best sound quality without manual adjustments (Requires setup using the Fusion-Link™ app on a compatible smartphone).

Features:

- RMS Power:

20-watt RMS per channel (at 4 ohm), allowing you to add an extra pair of speakers on board.

- Efficient Class-D Design:

Uses less power, so you can listen to music for longer at higher volumes, with less drain on the battery.

- Easy Tune Feature:

Automatically adjusts audio settings for the best possible sound quality with no manual adjustments required (Requires setup using the Fusion-Link app on a compatible smartphone).

- Compact Design:

The compact size of the zone amplifier makes it a versatile option for mounting on board.

- LED Indicator:

Show issues with electrical currents and shorts as well as temperature.

- Less Total Harmonic Distortion:

The amplifier is designed with minimal distortion and noise, allowing for better quality audio.

- Ignition Protected:

Intelligent electronic fuse prevents damage from over/under current, temperature, output short and other faults.

- Conformal Coated PCBs:

The amplifier circuit board has been specially coated to provide enhanced protection from the marine elements.

- Powder Coated Aluminum Finish:

Salt fog, temperature, vibration and UV tested with a modern aesthetic design to add style to your boat.

- Easy Installation:

A mounting bracket is included in the box allowing you to simply clip the amplifier in place for a clean finish.

- 12- and 24-Volt Compatible:

The zone amplifier is designed to work with both 12- and 24-volt electrical systems.

- True-Marine™ Design:

Designed to withstand the harshest marine environments season after season Designed Specifically For Fusion Audio Systems:

- The Apollo™ marine amplifiers are designed specifically for use with Fusion® DSP-enabled stereos (Apollo RA770, Apollo RA670, Apollo WB670 and MS-RA210) and Fusion speakers/subwoofers to deliver an unparalleled audio experience to your boat.

Power and Efficiency:

- The Apollo marine amplifiers provide the best performance and most impressive power for a superior audio experience.

This zone amplifier has a Class-D design to produce an efficient 20-watt RMS per channel (at 4 ohm) with less drain on your battery, allowing you to easily add an extra pair of speakers on board so you can enjoy high-quality audio in more zones on your boat.

Easy Tune Feature:

- The Easy Tune feature allows you to easily setup your Apollo marine amplifier without the need to fine-tune or adjust complex audio settings.

Simply select the relevant DSP audio profiles from the Fusion-Link™ app on your compatible smartphone to tune and sync your amplifier for optimal audio reproduction.

The audio settings will be adjusted automatically for the best possible sound quality.

Note:

Fusion DSP-enabled marine stereo (Apollo RA770, Apollo RA670, Apollo WB670, MS-RA210) and Fusion speakers/subwoofers required.

Easy Installation:

- An easy to install mounting bracket is included in the box, allowing you to simply clip the amplifier in place for a clean and tidy finish.

Note:

The mounting bracket must be used to properly install your zone amplifier on board.

Specifications:

- Physical Dimensions Without Bracket (WxHxD):

3.94´´ x 3.94´´ x 1.57´´ (100 x 100 x 40 mm).

- Physical Dimensions With Bracket (WxHxD):

3.94´´ x 4.53´´ x 1.89´´ (100 x 115 x 48 mm).

- Weight:

1.01 lb (460 g).

- Water Rating:

IPX7.

- Amplifier Class:

Class-D.

- CEA-2006 Power Rating:

20-watt RMS x 2
