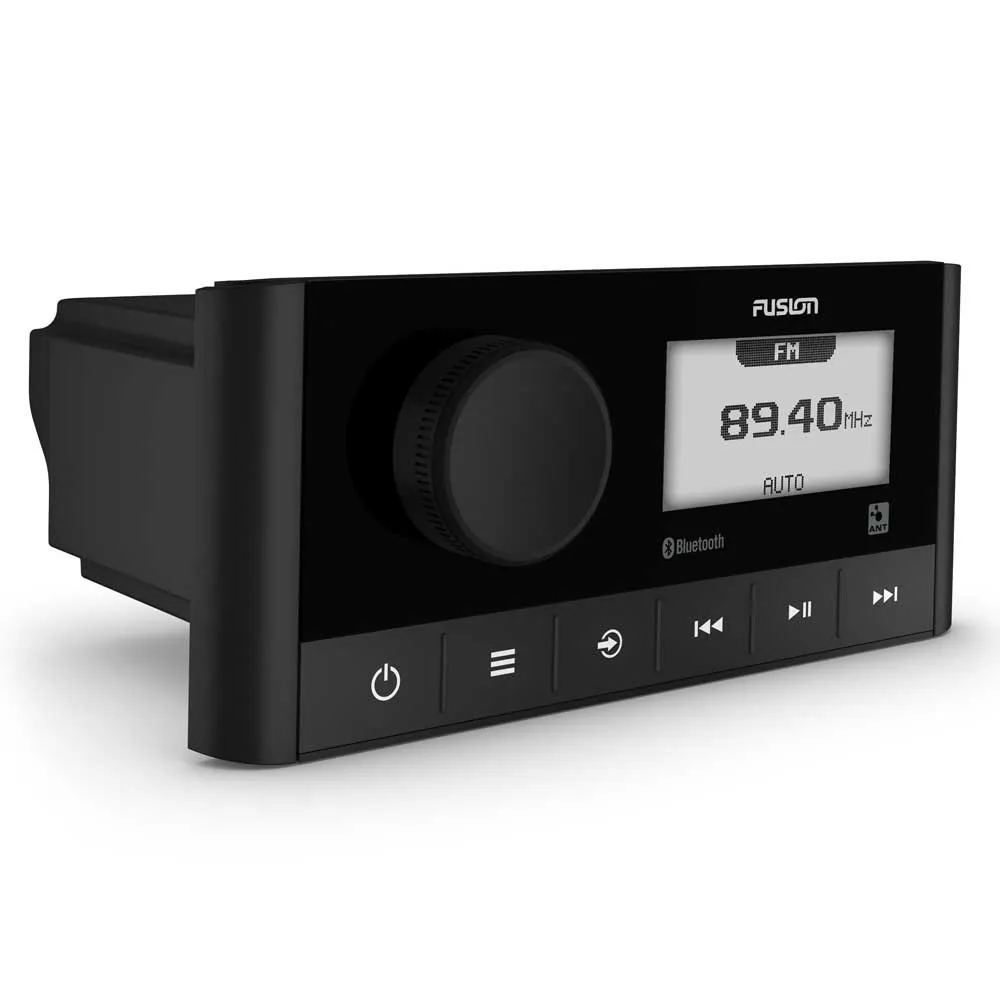

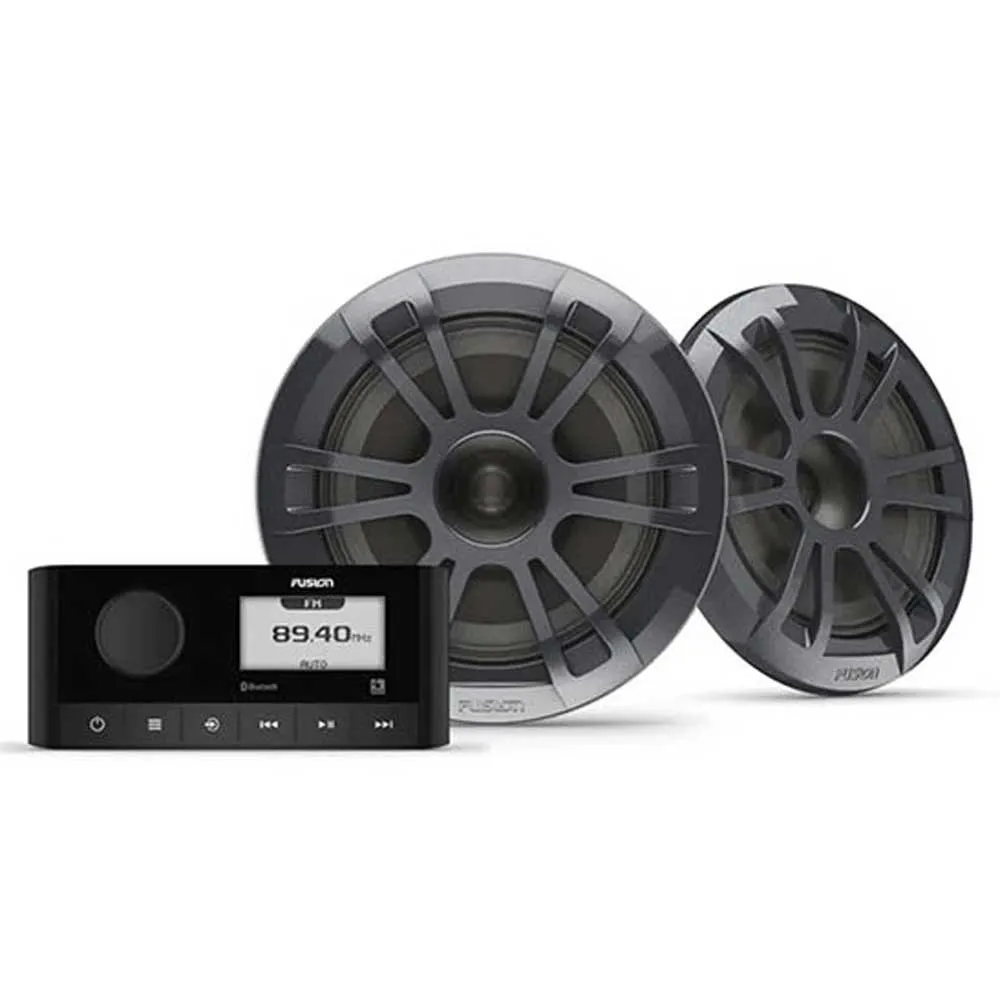

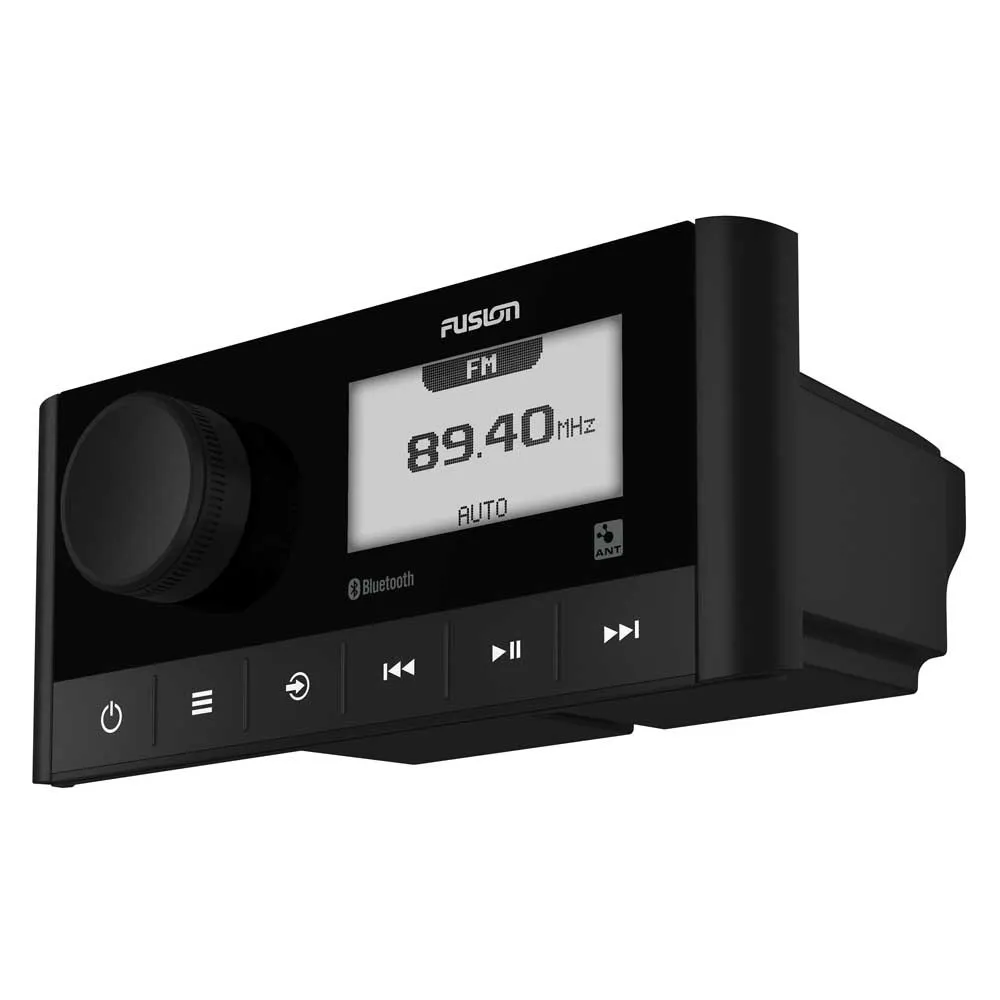

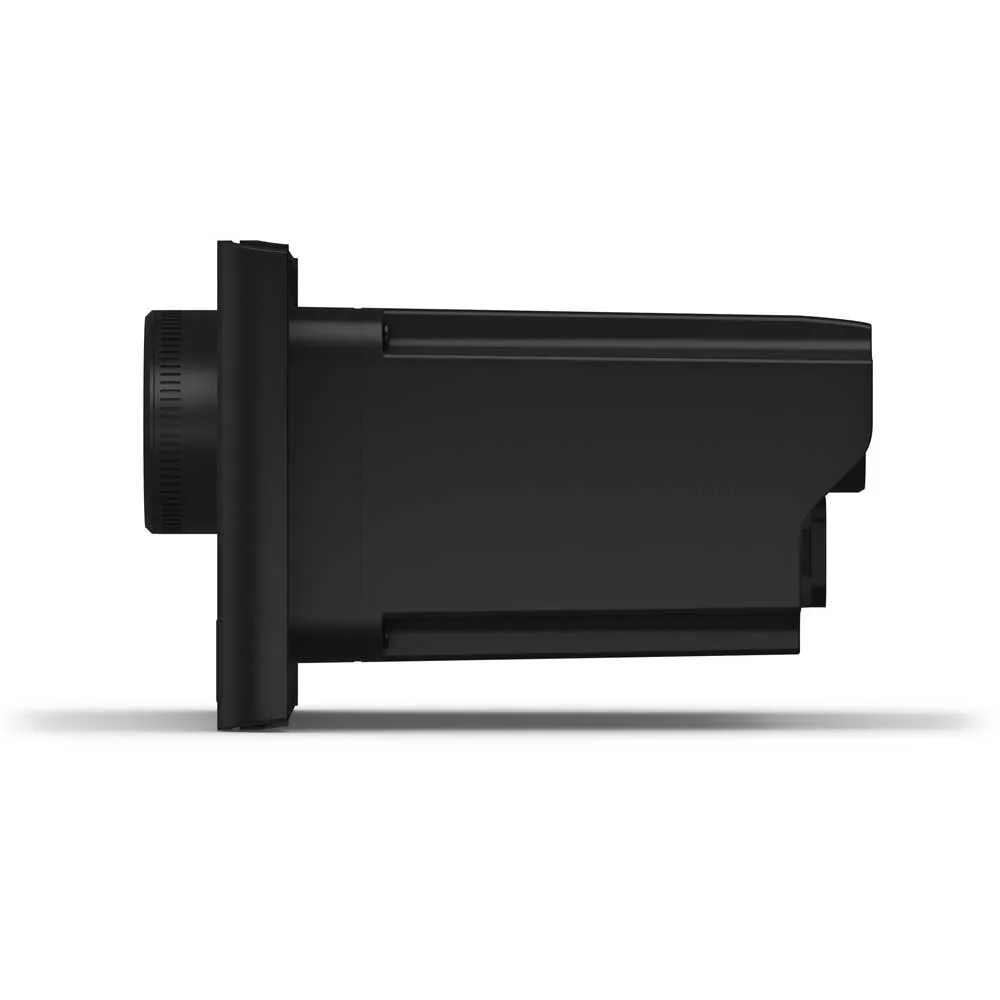

Fusion MS-RA60/EL Stereo&Speaker Kit

Automatic translation Original description available here

Outfit Your Boat With An Exceptional Sound System At An Outstanding Value. A Fusion® Ms-Ra60 Marine Stereo And El Series Marine Speaker Kit Or Ms-Ra210 And Xs Series Marine Speaker Kit Put The Perfect Soundtrack At Your Fingertips.


Specifications:

- Physical Dimensions (Hxwxd): Ms-Ra60: 2.68″ X 6.18″ X 4.06″ (68 X 156.9 X 103.2 Mm)
- Ms-Ra210: 2.68″ X 6.18″ X 4.99″ (68 X 157 X 126.6 Mm)
- Weight:- Ms-Ra60: 11.1 Oz (316 G), Ms-Ra210: 12.4 Oz (350 G)
- Water Rating: Ipx6 And Ipx7 (Front Panel Only, When Properly Installed)
- Power Input: 10.8-16 Vdc
- Operating Temperature Range: 32° To 122° F (0° To 50° C)
- Current (Max.):- 15 A
- Nmea 2000® Len- Ms-Ra210: 1 (50 Ma)
- Bluetooth® Wireless Range: Up To 30 Ft (10 Metres)
- Ant Wireless Range: Up To 10 Ft (3 Metres)
- Wireless Frequencies/Protocols: Bluetooth 2.4 Ghz @ +12 Dbm Nominal, Ant 2.4 Ghz @ +7 Dbm Nominal
- Compass-Safe Distance: 5.9″ (150 Mm)
- Display- Ms-Ra60: 2.3″ Perimeter Bonded Monochrome Dot Matrix Lcd
- Ms-Ra210: 2.7″ Optically Bonded Colour Lcd
- Built-In Amplifier: Class-D (Minimum 4 Ohm Impedance)
- Peak Power: Ms-Ra210: 200 W
- Ms-Ra60: 180 W
- Rated Power Output (4 Ohm) Ms-Ra60: 22 W Rms X 4 @ 14.4 V Input < 10% Thd
- Ms-Ra210: 26 W Rms X 4 @ 14.4 V Input < 10% Thd
- Fusion-Link™ Control Ms-Ra60: Yes (With Smartphone And Garmin Watch)
- Ms-Ra210: Yes (With Mfd, Smartphone And Garmin Watch)
- Built-In Digital Signal Processing- Ms-Ra210: Yes (With Preconfigured Dsp Profiles)
- Multi-Zone™ Technology: 2 Zones
- Bluetooth Wireless Technology: Yes
- Ant Wireless Technology: Yes
- Dab+ Ready Ms-Ra60: Yes (Dab Tuner Built In)
- Ms-Ra210: Yes (Requires Dab100a Antenna Module)
- Siriusxm-Ready Ms-Ra210: Yes (Requires Siriusxm Connect Vehicle Tuner)
- Multi-Language Interface Ms-Ra60: Dutch, English, French, German, Italian, Spanish
- Ms-Ra210: Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Br/Pt), Slovenian, Spanish, Swedish, Thai, Turkish
- Nrx Remote Compatibility Ms-Ra210: Yes
- Software Updates Ms-Ra60: Over-The-Air Software Updates Via Bluetooth Wireless Technology Using The Fusion-Link App
- Ms-Ra210: Usb
- Sources- Ms-Ra60: Am/Fm/Bluetooth/Aux X1/Dab+ (Available In Europe And Australia Only)
- Ms-Ra210: Am/Fm/Bluetooth/Usb Audio/Iphone/Ipod/Aux X1/Mtp/Siriusxm-Ready (Usa Only, Requires Optional Siriusxm Connect Vehicle Tuner)/Dab+ Ready (Available In Europe And Australia Only)
- Auxiliary Input- One Rca Input (Aux)
- Nmea 2000 Ms-Ra210: 1 Port
- Usb 2.0- Ms-Ra210: 1 Port
- Siriusxm Satellite Radio Ms-Ra210: 1 Port (Requires Siriusxm Connect Vehicle Tuner, Does Not Support Traffic And Weather)
- Am/Fm Radio- One Motorola Antenna Connector Port
- Speaker- Ms-Ra60: 4 X Speaker Connections (2 Zone Amplified)
- Ms-Ra210: 4 X Speaker Connections (2 Zone Amplified)
- Rca Pre-Out (Left, Right And Subwoofer)- Ms-Ra60: 1 Zone (Requires External Amplification)
- Ms-Ra210: 2 Zones (Requires External Amplification)
- Line Out- Ms-Ra60: Zone 1 (L + R, Requires External Amplification)
- Ms-Ra210: Zone 1, Zone 2 (1 X L + R Per Zone, Requires External Amplification)
- Subwoofer Out- Ms-Ra60: Zone 1 (Requires External Amplification)
- Ms-Ra210: Zone 1, Zone 2 (Requires External Amplification)
- Line Out- Ms-Ra60: Zone 1 (L + R, Requires External Amplification)
- Subwoofer Out- Ms-Ra60: Zone 1 (Requires External Amplification)

- Speaker:
- Physical Dimensions (Hxwxd)- El Classic Speaker: 6.93″ X 2.26″ (176 X 57.5 Mm)
- El Sports Speaker: 6.93″ X 2.32″ (176 X 59 Mm)
- Xs Classic Speaker: 6.97″ X 3.19″ (177 X 81 Mm)
- Xs Sports Speaker: 6.97″ X 3.27″ (177 X 83 Mm)
- Water Rating: Ip65
- Configuration El Speaker: Full Range
- Xs Speaker: Coaxial
- Speaker Size: 6.5″
- Peak Power (Watts) El Speaker: 80 W
- Xs Speaker: 200 W
- Rms Power (Watts) El Speaker: 20 W
- Xs Speaker: 50 W
- Sensitivity (1 Watt/1 Metre) El Speaker: 88 Db
- Xs Speaker: 91 Db
- Frequency Response El Speaker: 45 Hz-16 Khz
- Xs Speaker: 80 Hz-18 Khz
- Nominal Impedance: 4 Ohm
- Recommended Amplifier Power (Rms) El Speaker: 20-40 W/Ch Xs Speaker: 20-150 W/Ch
- Operating Temperature Range- 32° To 122° F (0° To 50° C)
- Voice Coil Diameter- El Speaker: 0.79″
- Xs Speaker: 1.18″
- Cone Material: Polypropylene Cone With Cloth Surround
- Tweeter Type Xs Speaker: Aluminium Dome
- Compass-Safe Distance El Speaker: 100″ (254 Cm)
- Xs Speaker: 122″ (310 Cm)
- Xs Speaker: 3 Years
- Mounting Diameter Clearance- El Speaker: 5.12″ (130 Mm)
- Xs Speaker: 5.31″ (135 Mm)
- Mounting Depth Clearance El Speaker: 1.69″ (43 Mm)
- Xs Speaker: 2.64″ (67 Mm)
- Sealed Enclosure Volume- Xs Speaker: 0.28 Cubic Ft (8 L)


In The Box:

Ms-Ra60 Stereo And El Sports Speaker Kit:

- Ms-Ra60 Marine Stereo
- One Pair Of El Series Sports Grey Marine Speakers
- Am/Fm Stealth Antenna
- Two 19 Ft (6 Metres) Speaker Wires
- Dust Cover
- Wiring Harnesses And Mounting Accessories
- Mounting Gasket
- Four 6-Gauge, Self-Tapping Screws
- Two Screw Covers
- Power And Speaker Wiring Harness
- Auxiliary-In, Line-Out, And Subwoofer-Out Wiring Harnesses
- 12 Phillips Stainless Steel Mounting Screws (4.2 Mm X 25.4 Mm (8 Gauge X 1″))

Ms-Ra60 Stereo And El Classic Speaker Kit:
- Ms-Ra60 Marine Stereo
- One Pair Of El Series Classic White Marine Speakers
- Am/Fm Stealth Antenna
- Two 19 Ft (6 Metres) Speaker Wires
- Dust Cover
- Wiring Harnesses And Mounting Accessories
- Mounting Gasket
- Four 6-Gauge, Self-Tapping Screws
- Two Screw Covers
- Power And Speaker Wiring Harness
- Auxiliary-In, Line-Out, And Subwoofer-Out Wiring Harnesses
- 12 Phillips Stainless Steel Mounting Screws (4.2 Mm X 25.4 Mm (8 Gauge X 1″))

Ms-Ra210 Stereo And Xs Sports Speaker Kit:
- Ms-Ra210 Marine Stereo
- One Pair Of Xs Series Sports Grey Marine Speakers
- Am/Fm Stealth Antenna
- 6 Ft (2 Metres) Nmea 2000® Drop Cable
- Two 19 Ft (6 Metres) Speaker Wires
- Dust Cover
- Wiring Harnesses And Mounting Accessories
- Mounting Gasket
- Four 6-Gauge, Self-Tapping Screws
- Two Screw Covers
- Power And Speaker Wiring Harness
- Auxiliary-In, Line-Out, And Subwoofer-Out Wiring Harnesses
- 12 Phillips Stainless Steel Mounting Screws (4.2 Mm X 25.4 Mm (8 Gauge X 1″))

Ms-Ra210 Stereo And Xs Classic Speaker Kit:
- Ms-Ra210 Marine Stereo
- One Pair Of Xs Series Classic White Marine Speakers
- Am/Fm Stealth Antenna
- 6 Ft (2 Metres) Nmea 2000® Drop Cable
- Two 19 Ft (6 Metres) Speaker Wires
- Dust Cover
- Wiring Harnesses And Mounting Accessories
- Mounting Gasket
- Four 6-Gauge, Self-Tapping Screws
- Two Screw Covers
- Power And Speaker Wiring Harness
- Auxiliary-In, Line-Out, And Subwoofer-Out Wiring Harnesses
- 12 Phillips Stainless Steel Mounting Screws (4.2 Mm X 25.4 Mm (8 Gauge X 1″))


Compatible Devices:

- Fusion® Am Series Marine Amplifiers
- Fusion Signature Series Marine Amplifiers
- Fusion® Xs Series Marine Subwoofers
- Quatix® 6
- Quatix® 6 Titanium
- Quatix® 6x Solar
