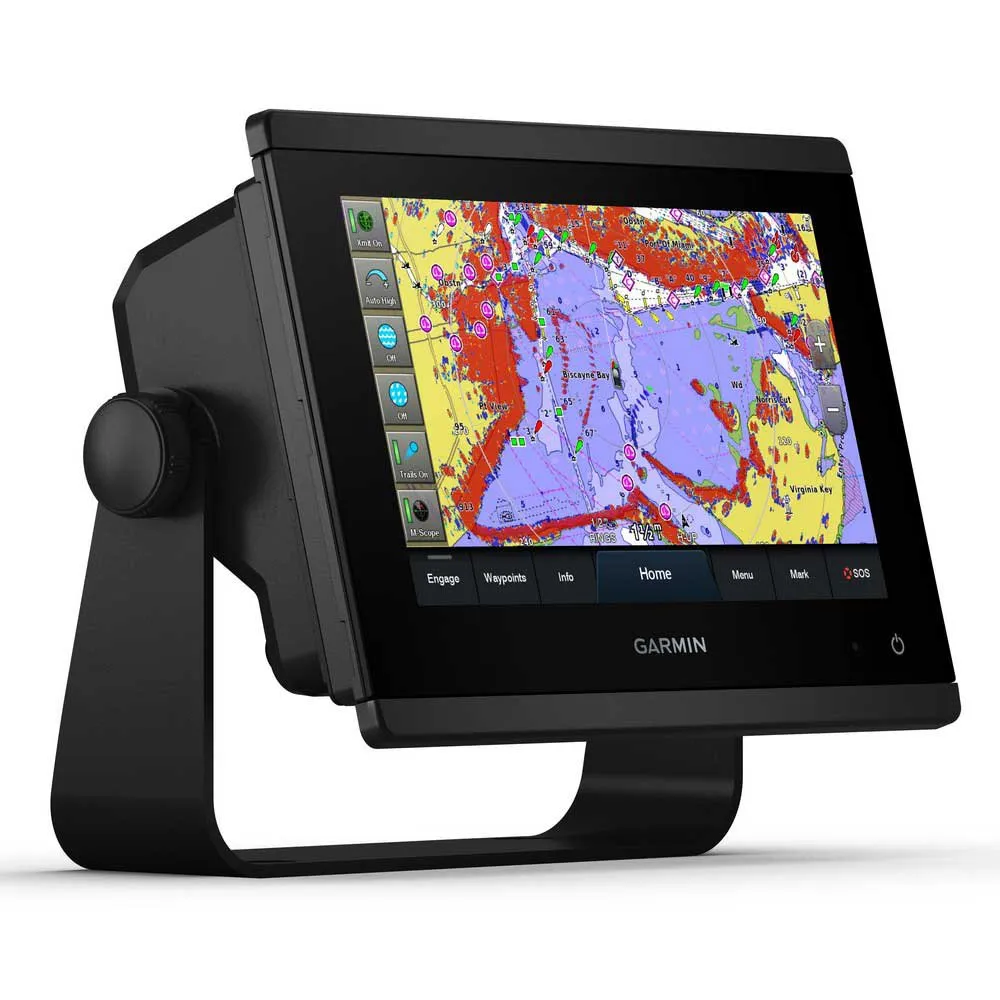

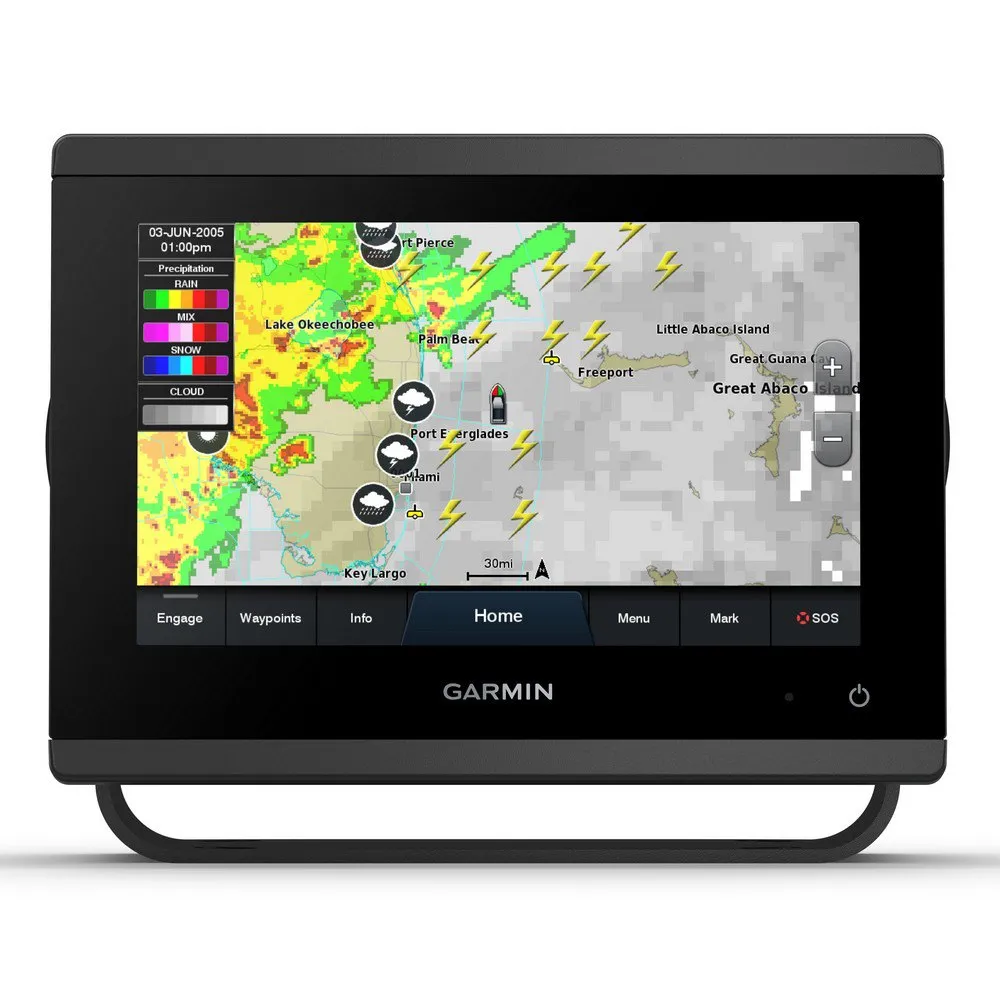

Garmin GPSMAP 723 plotter with transducer&cartography

GPSMAP 723 is a Garmin GPS with a 7 ”screen measured diagonally (15.4 x 9.1 cm; 17.8 cm) and a resolution of 1024 x 600 pixel resistant algua with greater readability to the light fulfilling the standard IPX7.

With the use of this GPS probe you will be able to know various aspects about the wind such as current, angle, configuration and speed, in addition to land lines, data fields. Within its configuration, this device includes Wifi connectivity, allowing you to connect with the OneChart function to access smart notifications, software updates, share your achievements with the Garmin Conect community, among others.

This device has world base maps preloaded. If you want to expand your storage system you can incorporate 2 microSD cards. You can pair it with the separately purchased Panoptix Ps51 transducer.

Get A Sharper View From Your Connected Helm: With 60% more display pixels and nearly double the processing power of previous-generation 7” GPSMA devices, this crisp high-resolution chartplotter integrates seamlessly into your Garmin marine system.


Features:

- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm™ digital switching.
- Easily build your marine system using the best of network connectivity.
- Compatible with premium maps and charts1 for the best in Garmin navigation.
- Take the guesswork out of sailing with clear laylines and more — right on the screen.
- Manage your marine experience from nearly anywhere2.

FASTER, SHARPER, SMARTER:
- With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 7” plotter in a wider range of dash configurations.

IMPROVED DISPLAY OPTICS:
- New higher-resolution 7” displays offer improved sunlight readability with 60% more pixels than previous-generation 7” GPSMAP devices.

GARMIN SAILASSIST™ SAILING FEATURES:
- View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more3.

OPTIONAL BLUECHART® G3 VISION® CHARTS:
- These optional charts offer the best of Garmin and Navionics® data, Auto Guidance4 technology and other premium navigation features.

GARMIN MARINE NETWORK:
- If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

NMEA 2000® AND NMEA 0183 NETWORKS:
- Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN® APP:
- Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more5.

INTEGRATED ANT® TECHNOLOGY:
- Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

J1939 CONNECTIVITY:
- Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

ONEHELM™ FEATURE:
- This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

PANOPTIX™ SONAR SUPPORT:
- Pair with Panoptix PS51 (transducer sold separately) with FrontVü scanning sonar6 to help you see and avoid submerged obstacles in real time as you approach within a 300’ range.


Specifications:

General:
- Physical dimensions: 7.6´´ x 5.5´´ x 2.9´´ (19.2 x 14.0 x 7.4 cm)
- Display size: 6.1´´ x 3.5´´; 7.0´´ diagonal
- (15.4 x 9.1 cm; 17.8 cm diagonal)
- Display resolution: 1024 x 600 pixels
- Display type: WSVGA display
- Weight: 2.8 lbs (1.3 kg)
- Water rating: IPX7
- Polarized Support: Yes

Power consumption:
- Max power usage at 10 Vdc: 17.6 W
- Typical current draw at 12 Vdc: 1.1 A
- Max current draw at 12 Vdc: 1.5 A
- Antenna: Internal or external over NMEA 2000
- Mounting options: Bail, flush or flat
- Receiver: 10 Hz high-sensitivity
- Garmin Marine Network™ ports: 1

Maps & Memory:
- Preloaded maps: worldwide basemap
- Accepts data cards: 2 microSD™ cards (back of unit)
- Waypoints: 5,000
- Track log: 50,000 points; 50 saved tracks
- Routes: 100

Outdoor Recreation:
- Tide tables: Yes

Chartplotter Features:
- Garmin Radar compatible: Yes
- Garmin Sonar compatible: Yes (with external black box, sold separately)
- Garmin SmartMode compatible (customizable monitor presets): Yes
- Supports AIS (tracks target ships position): Yes
- Supports DSC (displays position data from DSC-capable VHF radio): Yes
- Supports FUSION-Link™ compatible radios: Yes
- GSD™ Black Box sonar support: Yes
- GCV™ Black Box sonar support:Yes
- ActiveCaptain compatible: Yes
- GRID™ (Garmin Remote Input Device) compatible: Yes
- Wireless remote compatible: Yes
- Sailing Features: Yes

Sonar Features & Specifications:
- CHIRP sonar technology: Yes (with external black box, sold separately)
- ClearVü: Yes (with external black box, sold separately)
- SideVü: Yes (with external black box, sold separately)

Connections:
- NMEA 2000® compatible: Yes
- NMEA 0183 input ports: 1 (Differential)
- NMEA 0183 output ports: 1 (Differential)
- Video input ports: 1 BNC
- Wireless connectivity: Yes
- J1939 Compatible: Yes


In the Box:

- GPSMAP 723 chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
