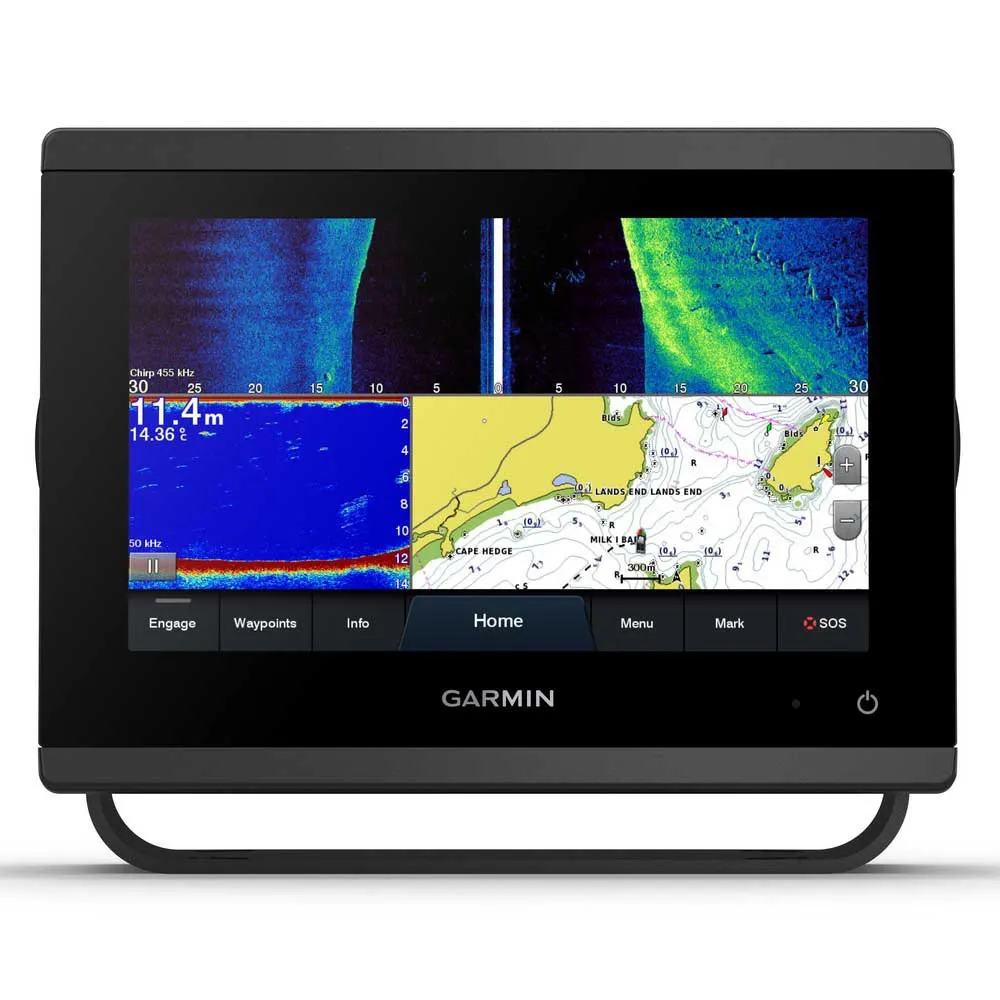

Garmin GPSMAP 723xsv Fishing Plotter

Get A Sharper View From Your Connected Helm. With its sleek design, powerful processing and upgraded IPS display, this advanced 7″, 9″, 12″, 15″ or 16″ chartplotter integrates seamlessly into your Garmin marine system.

Features:

- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm™ digital switching.
- Easily build your marine system using the best of network connectivity.
- See below your boat with built-in sonar capabilities
- Manage your marine experience from nearly anywhere1.

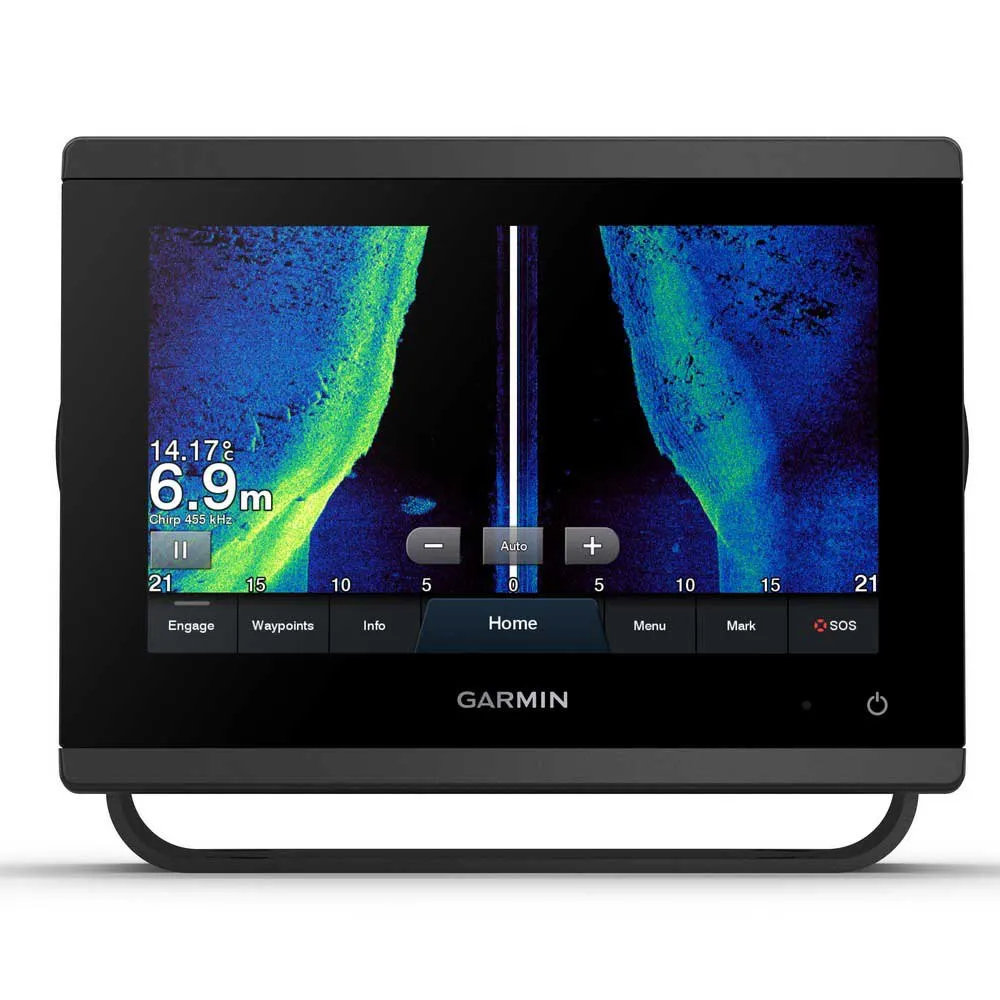

Ultra High-Definition Scanning Sonar:
- Get built-in Ultra High-Definition SideVu and ClearVu scanning sonars with vivid, high-contrast colour palettes to help distinguish fish from structure. GPSMAP® X3 series also supports 1 kW CHIRP traditional sonar capabilities. Built-in sonar compatibility only available on xsv models.

Panoptix™ & Livescope™ Sonar Support:
- Pair with Panoptix or LiveScope™ easy-to-interpret live sonar (transducer required, sold separately) to see all around your boat in real time.

Faster, Sharper, Smarter:
- With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this plotter in a wider range of dash configurations.

Improved Display Optics:
- New higher-resolution IPS displays for 9″ and 12″ plotters offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9″ GPSMAP devices.

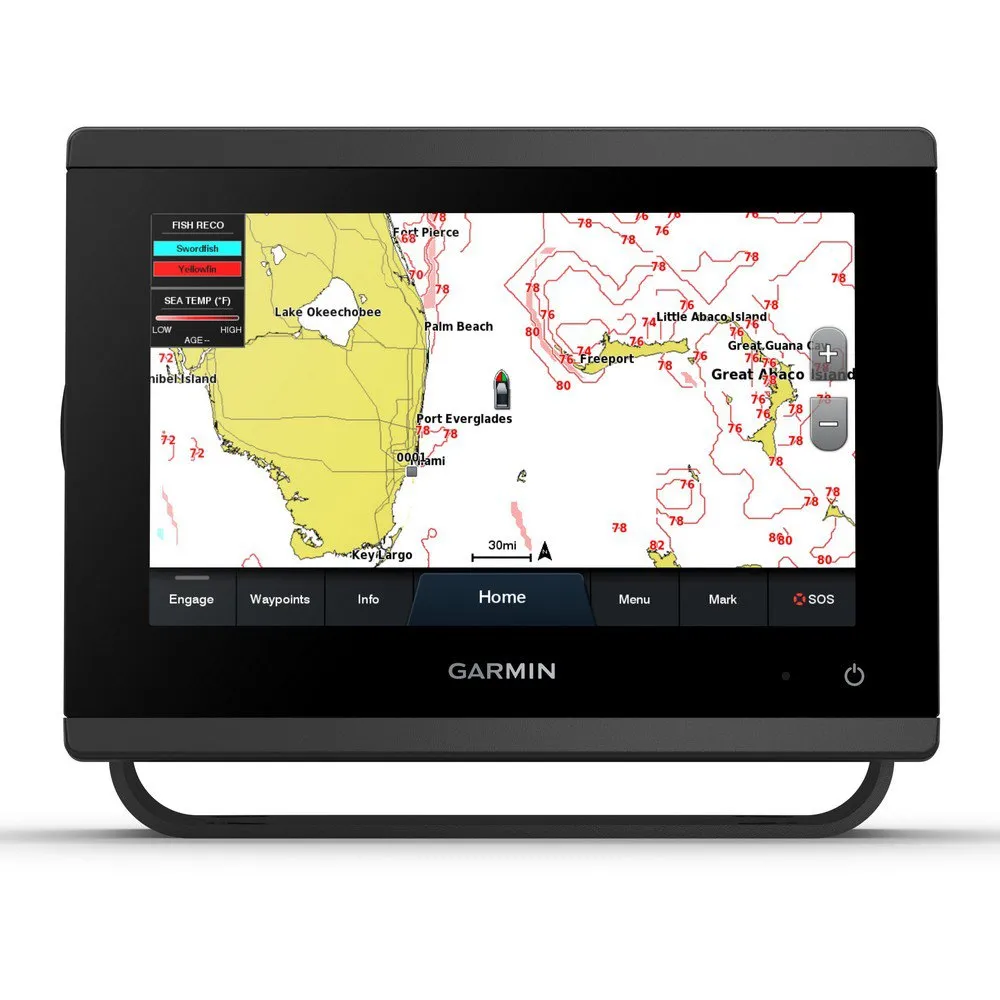

Charts And Maps:
- Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics+™ or premium Garmin Navionics Vision+™ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+™ technology and more.

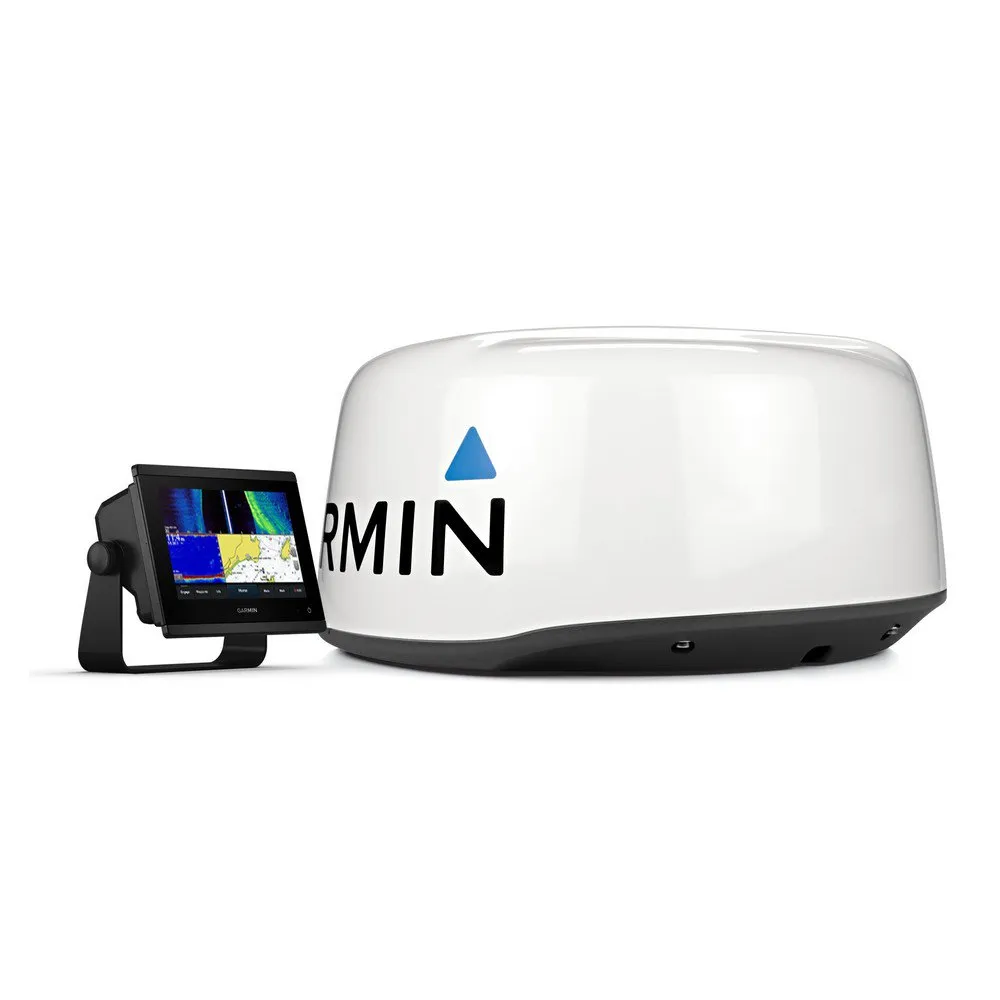

Optional Radar Bundle:
- To help you avoid weather and traffic on the water, the compact 4 kW GMR™ 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package.

Power-Pole® Shallow Water Anchor:
- By networking selected Garmin chart plotters with a Force® trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection and auto guidance end-of-route anchoring. Spend more time fishing, less time positioning.

Charge Integration From Power-Pole:
- Your CHARGE Marine Power Manager from Power-Pole integrates with compatible Garmin chartplotters to help keep your battery power going longer and stronger on the water. You’re able to charge batteries on the run, monitor power use, select where power is allocated, control emergency starts and even transfer power between battery banks — all from your chartplotter display.

Garmin Sailassist™ Sailing Features:
- View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.

Optional Premium Navigation Features:
- These optional charts offer the best of Garmin and Navionics® data, Auto Guidance technology and other premium navigation features.

Sailing Polars:
- Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

Garmin Marine Network:
- If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

Nmea 2000® And Nmea 0183 Networks:
- Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

Activecaptain® App:
- Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community.

Integrated Ant® Technology:
- Connect with some of your favourite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers transducers, GNX™ Wind marine instruments and wireless remote controls.

Engine Connectivity:
- Now you can connect your chartplotter to different kinds of engines, including selected Yamaha engines.

Onehelm Feature:
- This feature brings together all the operations and capabilities of selected third-party devices, such as EmpirBus™ digital switching, on one screen.

Send Inreach® Device Messages:
- Pair your inReach satellite communicator5 to your chartplotter, and type custom messages using your MFD’s on-screen keyboard. Access your contact list or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience.

Specifications:

General:
- Dimension: 19.2 x 14.0 x 7.4 cm
- Weight: 2.8 lbs (1.3 kg)
- Water rating: IPX7
- Touchscreen: Yes
- Display Type: WSVGA display
- Display Size: 15.4 x 9.1 cm; 17.8 cm diagonal
- Display Resolution: 1024 x 600 pixels

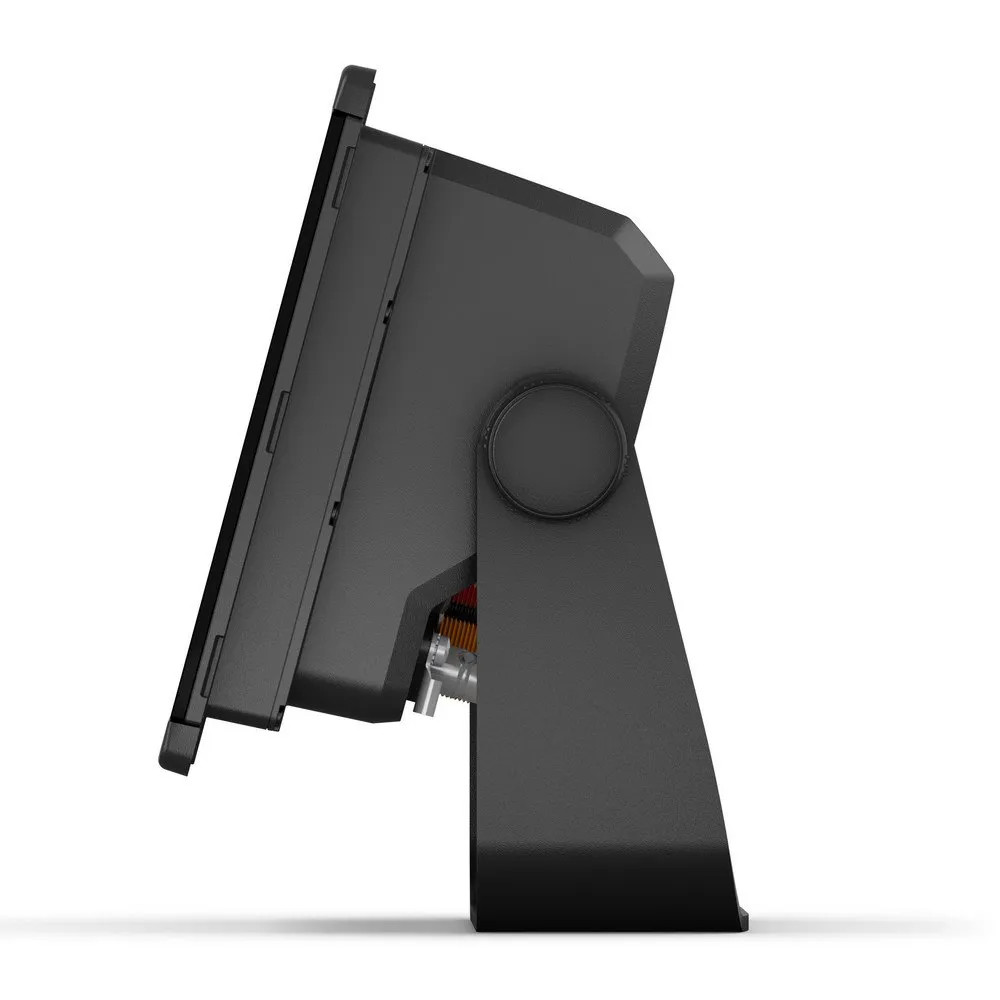

- Mounting Options: Bail, flush or flat
- Input: Touchscreen
- Polarised Lens Viewability: Yes

Maps & memory:
- Accepts Data Cards: 2 microSD™ cards (back of unit)
- Waypoints: 5,000
- Track points: 50,000
- Tracks: 50 saved tracks
- Navigation Routes: 100

Sensors:
- GPS: Yes
- GLONASS: Yes
- Galileo: Yes
- Has built-in receiver: Yes
- Receiver: 10 Hz high-sensitivity
- NMEA 2000® compatible: Yes
- NMEA 0183 Compatible: Yes
- Supports WAAS: Yes

Built-in maps:
- Tide tables: Yes

Optional map support:
- Garmin Navionics+™: Yes
- Garmin Navionics Vision+™: Yes
- Standard Mapping: Yes
- Garmin Quickdraw Contours: Yes

Chart plotter features:
- Garmin SmartMode compatible (customisable monitor presets): Yes
- AIS: Yes
- DSC: Yes
- Supports Fusion-Link™ compatible radios: Yes
- GSD Black Box Sonar Support: Yes
- GCV Black Box Sonar Support: Yes
- Active Captain Mobile Planning Compatible: Yes
- GRID (Garmin Remote Input Device) compatible: Yes
- Wireless Remote Compatible: Yes
- Sailing features: Yes
- Spoken audio alerts: Yes
- One Helm support: Yes

Electrical features:
- Power Input: 10 to 32 Vdc
- Typical current draw at 12 Vdc: 1.18 A
- Maximum current draw at 12 Vdc: 2.96 A
- Maximum power usage at 10 Vdc: 35.9W

Sonar features & specifications:
- Displays sonar: Yes
- Power output: 1 kW
- Traditional sonar (dual frequency/beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
- Clear Vu: Built-in 260/455/800/1000/1200 kHz
- Side Vu: Built-in 260/455/800/1000/1200 kHz
- Panoptix™ sonar: Yes
- Live Scope: Yes

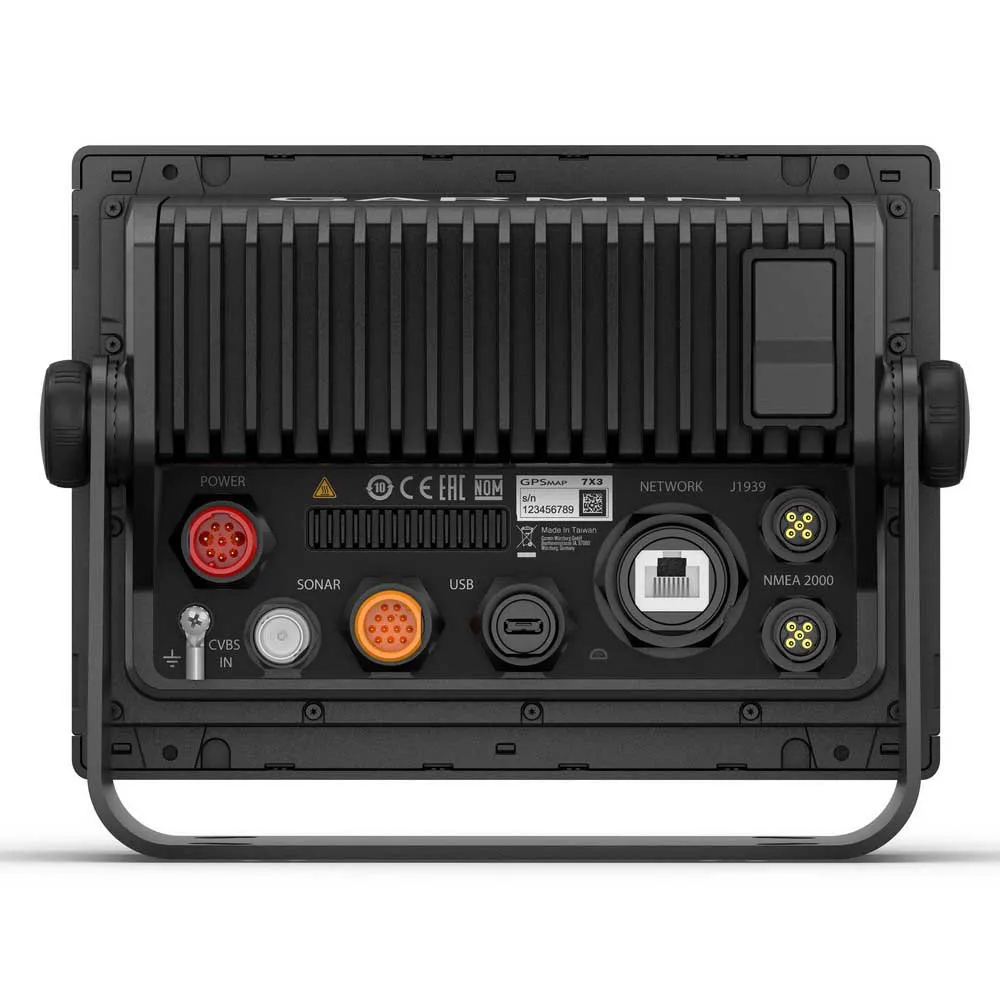

Connections:
- NMEA 2000® ports: 1
- NMEA 0183 Input (Rx) Ports: 1 (Differential)
- NMEA 0183 output (Tx) ports: 1
- Video input ports: 1 BNC
- J1939 ports: 1
- Garmin Marine Network Ports: 1
- 12-pin transducer ports: 1
- USB ports: Yes
- Bluetooth® calling: Yes
- ANT® (Connectivity): Yes
- Garmin Wi-Fi network (local connection): Yes

In the Box:
- GPSMAP 723xsv chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 metres)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation

With 18 HD+ Radar:
Above contents plus:
- GMR 18 HD+ radome
- Mounting hardware kit
- Power cable (15 metres)
- Network cable (15 metres)
- Installation instructions
- Mounting template

Compatible Devices:
- 6 kW Pedestal for GMR 604/606 xHD
- Compact Reactor™ 40 Hydraulic Autopilot Starter Pack
- Compact Reactor™ 40 Hydraulic Autopilot with GHC™ 20 and Shadow Drive™ Pack
- Compact Reactor™ 40 Hydraulic Autopilot with GHC™ 20 Corepack
- Compact Reactor™ 40 Hydraulic Autopilot with GHC™ 50 and Shadow Drive™ Technology Pack
- Compact Reactor™ 40 Hydraulic Autopilot with GHC™ 50 Instrument Pack
- Force® Trolling Motor
- Garmin AIS™ 300 Blackbox Receiver
- Garmin AIS™ 600 Blackbox Transceiver
- GC™ 10 Marine Camera
- GC™ 100 Wireless Camera
- GC™ 12 Marine Camera
- GC™ 14 Marine Camera
- GC™ 200 marine IP camera
- GC™ 245 Surface Mount Camera
- GC™ 255 Flush Mount Camera
- GCV™ 20 Sonar Black Box
- GLS™ 10 Sonar Module
- GMI™ 20
- GMR™ 1224 xHD2
- GMR™ 1226 xHD2
- GMR™ 1234/1236 xHD3
- GMR™ 18 HD
- GMR™ 18 HD+
- GMR™ 18 xHD
- GMR™ 18/24 xHD3
- GMR™ 24 HD Radome
- GMR™ 24 xHD
- GMR™ 2524 xHD2
- GMR™ 2526 xHD2
- GMR™ 2534/2536 xHD3
- GMR™ 424 xHD2
- GMR™ 434/436 xHD3
- GMR™ 624 xHD2 Open Array Radar and Pedestal
- GMR™ 626 xHD2 Open Array Radar and Pedestal
- GMR Fantom™ 124
- GMR Fantom™ 126
- GMR Fantom™ 18
- GMR Fantom™ 18x/24x Dome Radar
- GMR Fantom™ 24
- GMR Fantom 254
- GMR Fantom 256
- GMR Fantom™ 4
- GMR Fantom™ 54
- GMR Fantom™ 56
- GMR Fantom™ 6
- GNX™ 20
- GNX™ 21
- GNX™ Wireless Sail Pack 43
- GPS 19x HVS
- GSD™ 24 Advanced Sonar Module
- GSD™ 25 ClearVü, SideVu and Traditional Sonar Module
- GSD™ 26 CHIRP Professional Sonar Module
- gWind™
- gWind™ Race
- gWind™ Wireless 2 Transducer
- inReach® Mini 2
- inReach® Mini 2 Marine Bundle
- Meteor™ 300 Audio System
- MSC™ 10 Marine Satellite Compas
- OnDeck™ Hub
- Panoptix LiveScope™ System
- Panoptix™ PS22-TR
- Panoptix™ PS30
- Panoptix™ PS31
- Panoptix™ PS51-TH
- Panoptix™ PS60 Thru-hull Down Transducer
- Reactor™ 40 Hydraulic Autopilot
- Reactor™ 40 Hydraulic Corepack with SmartPump
- Reactor™ 40 Hydraulic Corepack with SmartPump v2
- Reactor™ 40 Kicker Autopilot
- Reactor™ 40 Mechanical/Retrofit/Solenoid Corepack
- Reactor™ 40 Steer-by-wire Corepack for Volvo-Penta®
- Reactor™ 40 Steer-by-wire Corepack for Yamaha® Helm Master®
- Reactor™ 40 Steer-by-wire Corepack for Yamaha® Helm Master™
- Reactor™ 40 Steer-by-wire Standard Corepack
- Reactor™ 40 Steer-by-wire Standard Corepack
- Reactor™ 40 Steer-by-wire Standard Corepack
- VHF 100i
- VHF 110i Marine Radio
- VHF 115i Marine Radio
- VHF 210i AIS Marine Radio
- VHF 210i Marine Radio
- VHF 215i AIS Marine Radio
- VHF 215i Marine Radio
- VHF 315i Marine Radio
