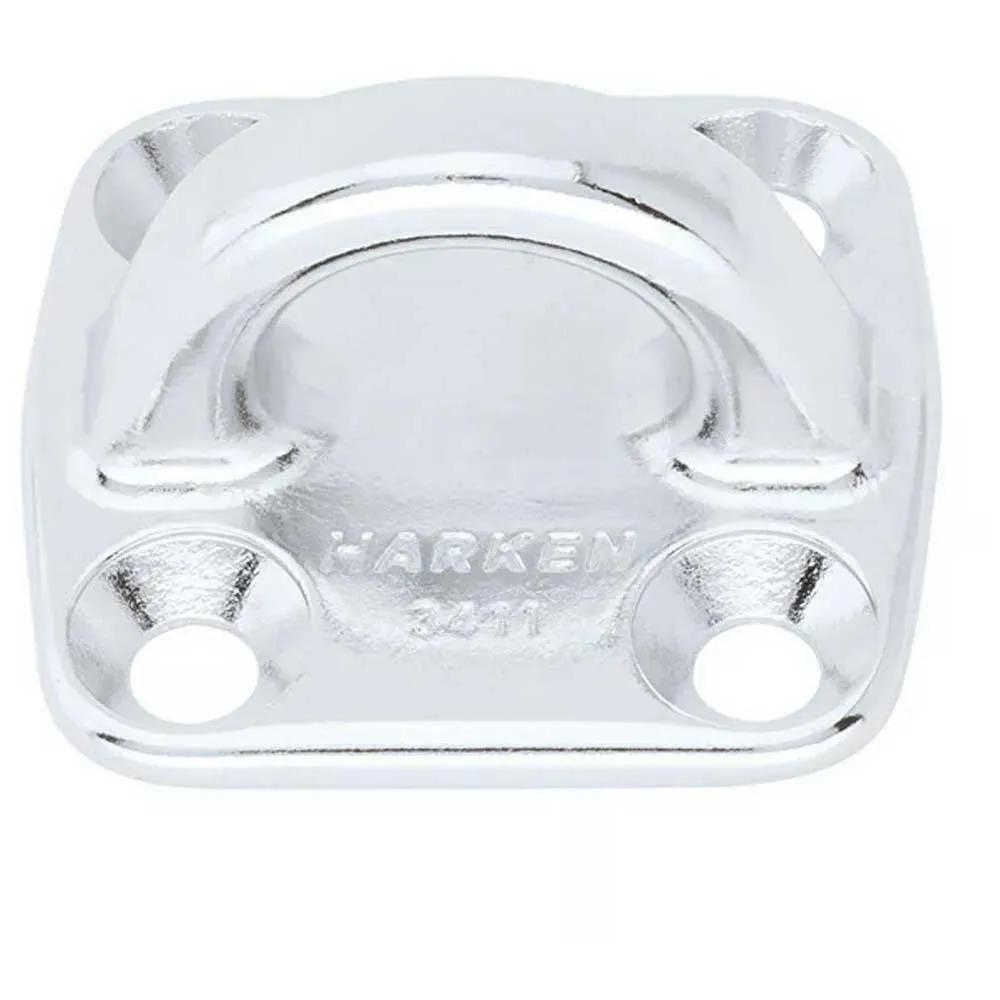

Harken Medium Square Duplex Padeye

HARKEN Medium Square Duplex Padeye | High-Strength, Low-Profile Marine Fitting

Experience unparalleled strength and reliability on deck with the HARKEN Medium Square Duplex Padeye. Engineered for the most demanding marine environments, this high-performance fitting provides a secure, versatile, and exceptionally low-profile attachment point for critical onboard systems. Whether you are outfitting a racing yacht or a cruising vessel, this padeye is designed to enhance safety and functionality without compromising deck space or aesthetics. Its robust construction ensures peace of mind when managing high loads, making it an essential piece of hardware for any serious mariner.

The primary benefit of the HARKEN Medium Square Duplex Padeye lies in its innovative fold-flat design. When not in use, the D-ring bail pivots a full 180 degrees and lays flush against the base, creating a clean, snag-free surface. This significantly reduces tripping hazards and prevents lines from catching, allowing for safer and more efficient movement around the deck. An integrated silicone pad beneath the bail cleverly eliminates annoying rattling and vibration, ensuring silent operation while holding the ring securely in your desired position, whether upright or folded down.

This padeye is the ultimate solution for a multitude of applications. Use it as a rock-solid attachment point for safety tethers, jacklines, lifelines, blocks, and leads. It is also perfectly suited for securing dinghies, coolers, and other heavy gear on deck, ensuring everything stays in place even in the roughest seas. The square base provides a stable mounting platform, distributing loads evenly for maximum holding power. While primarily used as robust deck hardware, its exceptional load capacity also makes it a superior choice for specialized applications requiring secure wall anchors in a marine or industrial context where strength is paramount.

Main Features:

* High-load capacity for critical safety and rigging applications.
* Pivoting bail with a 180-degree range of motion for versatile lead angles.
* Folds completely flat for a minimal, non-obtrusive deck profile.
* Integrated pad ensures a quiet, rattle-free performance.
* Low-profile design reduces snagging and tripping hazards.
* Square base for stable and secure installation.
* Engineered for superior performance and longevity in harsh saltwater conditions.

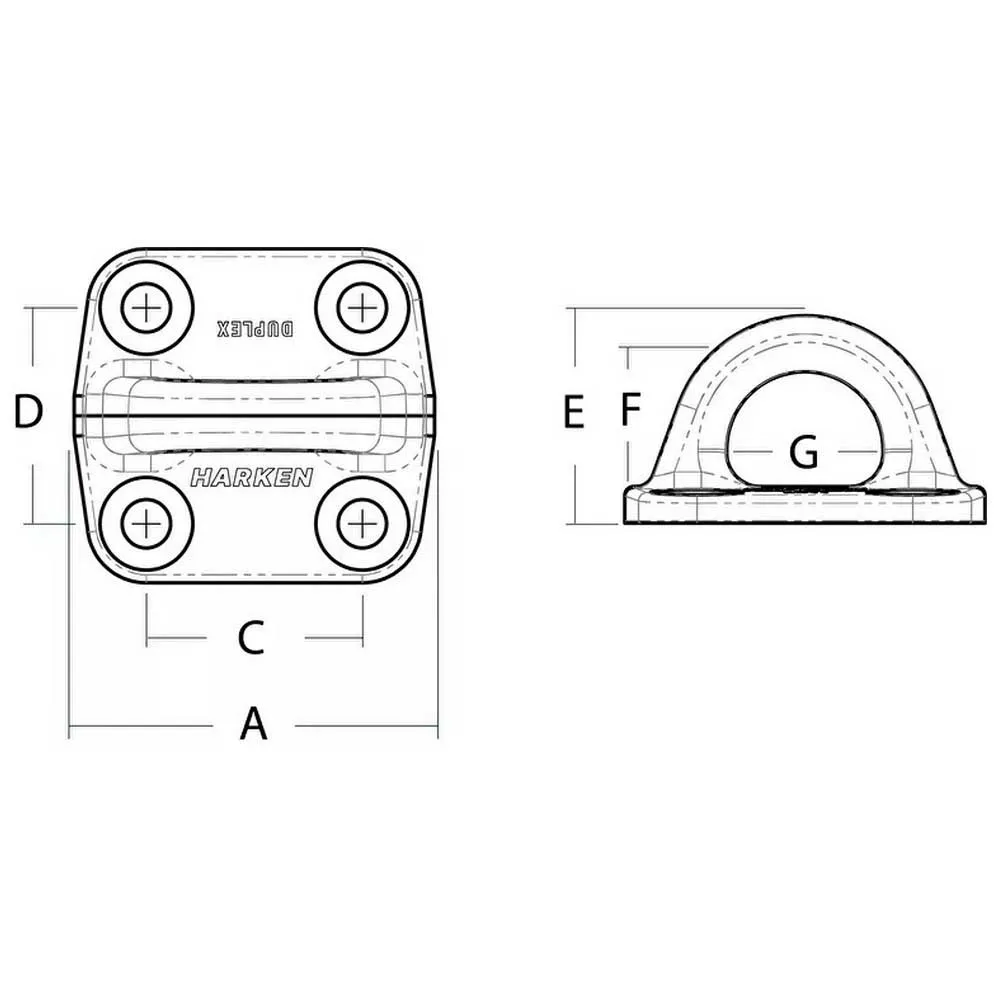

Technical Specifications:

* Length (L): 64 mm (2 1/2 in)
* Width (W): 64 mm (2 1/2 in)
* Height (H): 13 mm (1/2 in)
* Bail Diameter (ø): 8 mm (5/16 in)
* Required Fasteners: 8 mm (5/16 in)
* Center to Center (A): 33.5 mm (1 5/16 in)
* Center to Center (B): 33.5 mm (1 5/16 in)
* Center to Center Diagonal (C): 47.4 mm (1 7/8 in)
* Weight: 236 g (8.32 oz)
* Maximum Working Load (MWL): 2200 kg (4850 lb)
* Breaking Load (BL): 4400 kg (9700 lb)

Upgrade your vessel’s hardware with the HARKEN Medium Square Duplex Padeye and invest in superior safety, performance, and design
