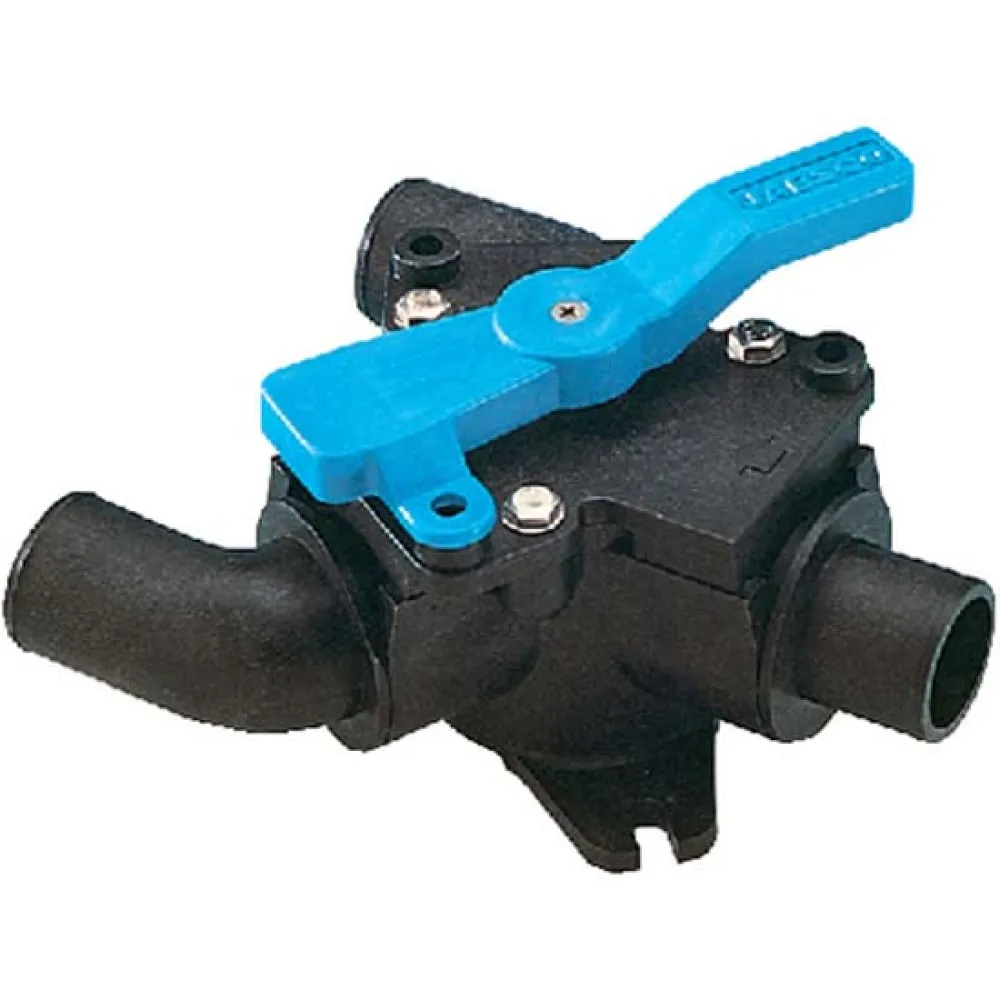

Jabsco Y valve

This valve allows alternative routes for toilet discharge or toilet waste pump-out, including toilet discharge overboard (at sea) or to waste holding tank, waste holding tank discharge via onboard pump or shore pump-out.

Optional shaft extension allows valve to be mounted through a bulkhead up to 1-3/4´ thick with only the selector handle exposed. Ports can be rotated away in parallel, at 90-degrees, or in opposite directions, or either up or down without disassembly.


Features:

- Rotatable ports
- Chemical and corrosion-resistant polymer and stainless steel construction
- Lockable manual lever action can be padlocked or sealed in either position (lock not included)
- Valve is supplied with both 1-1/2´ (38mm) fitted ports and an extra 1´ (25mm) straight inlet port
- Indicator arrows molded into body to show flow direction
- Self-cleaning design
- Easy access to valve by removal of just three hex head machine screws


Specifications:

- Connections - 1-1/2´ bore hose (38mm)
- Length - 7-1/4´ (180mm)
- Height - 4-15/16´ (120mm)
