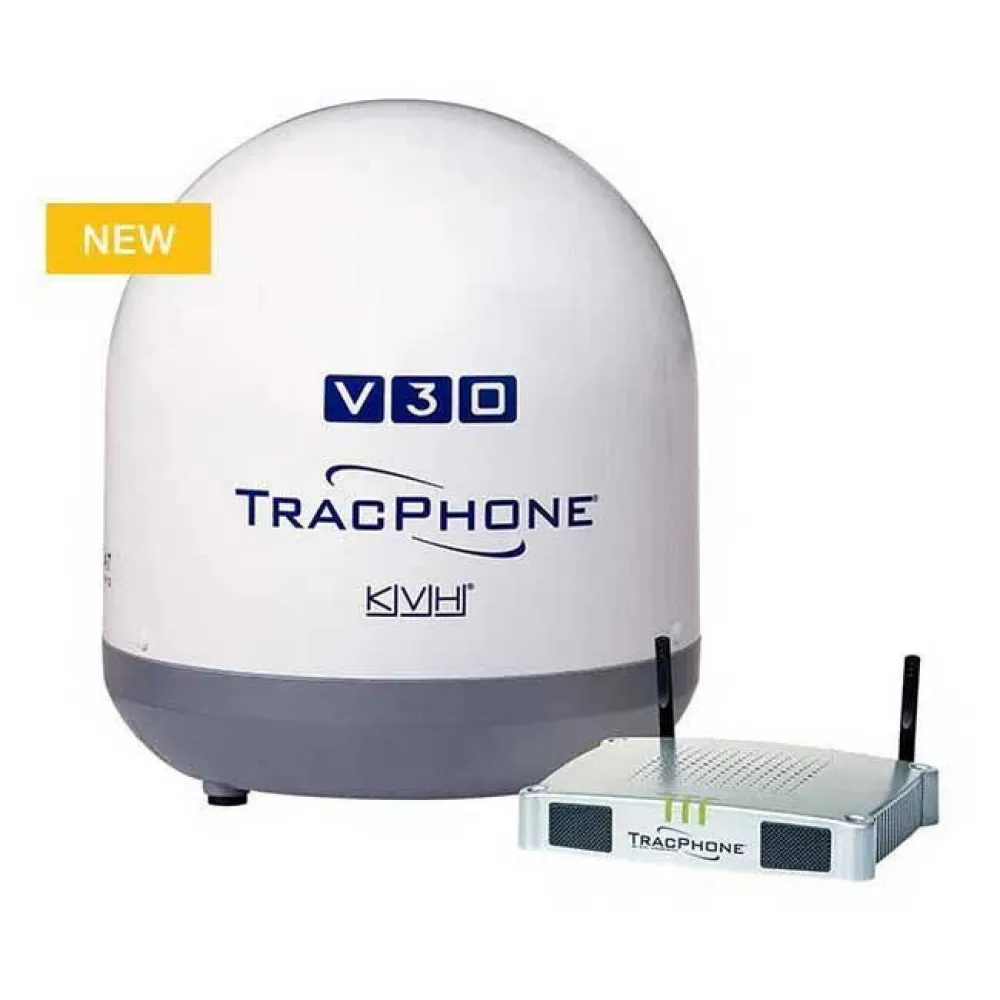

Kvh Tracphone V30 antenna

KVH Tracphone V30: Ultra-Compact Marine VSAT Antenna for High-Speed Internet at Sea

Experience a new era of maritime connectivity with the KVH Tracphone V30, an ultra-compact, high-performance VSAT satellite communications system. Designed for vessels of all sizes, from leisure yachts to commercial fleets, the V30 delivers the speed, reliability, and affordability you need to stay connected on the water. This revolutionary system shatters the old paradigm that small antennas mean slow speeds. Now, you can enjoy fast internet access, crystal-clear voice calls, and reliable data for operational needs, all from a single, streamlined piece of hardware that is simple to install and effortless to manage.

The Tracphone V30 leverages KVH’s advanced high-throughput satellite (HTS) network, providing you with an exceptional online experience. Stream HD content, participate in video conferences, manage your business, and connect with family and friends with download speeds as fast as 6 Mbps. Its groundbreaking design makes it the world´s smallest and lightest marine VSAT antenna, minimizing the impact on your vessel´s performance and aesthetics while maximizing your connection to the world.

Key Benefits:

* Revolutionary Compact Design: With a diameter of just 37 cm (14.5 inches) and weighing only 10.6 kg (23.4 lbs), the V30 antenna is over 85% smaller by volume than competing systems, making it a perfect fit for any vessel without compromising on performance.
* Blazing-Fast HTS Network Speeds: Stay productive and entertained with download speeds up to 6 Mbps and upload speeds up to 2 Mbps. Enjoy a seamless browsing experience, reliable email, and robust support for your favorite apps and streaming services.
* Simplified, Cost-Effective Installation: A single coaxial cable carries both power and data between the antenna and the below-deck unit, dramatically simplifying the installation process, saving you time and reducing costs.
* Seamless Global Coverage: Rely on the proven Ku-band mini-VSAT Broadband HTS network for uninterrupted connectivity across major cruising and operational routes worldwide.
* Integrated and User-Friendly: The system includes the DC-powered Integrated CommBox Modem (ICM), which houses the modem, antenna controller, and Wi-Fi router in one compact unit, making setup and management straightforward via any mobile device or computer.

Main Features:

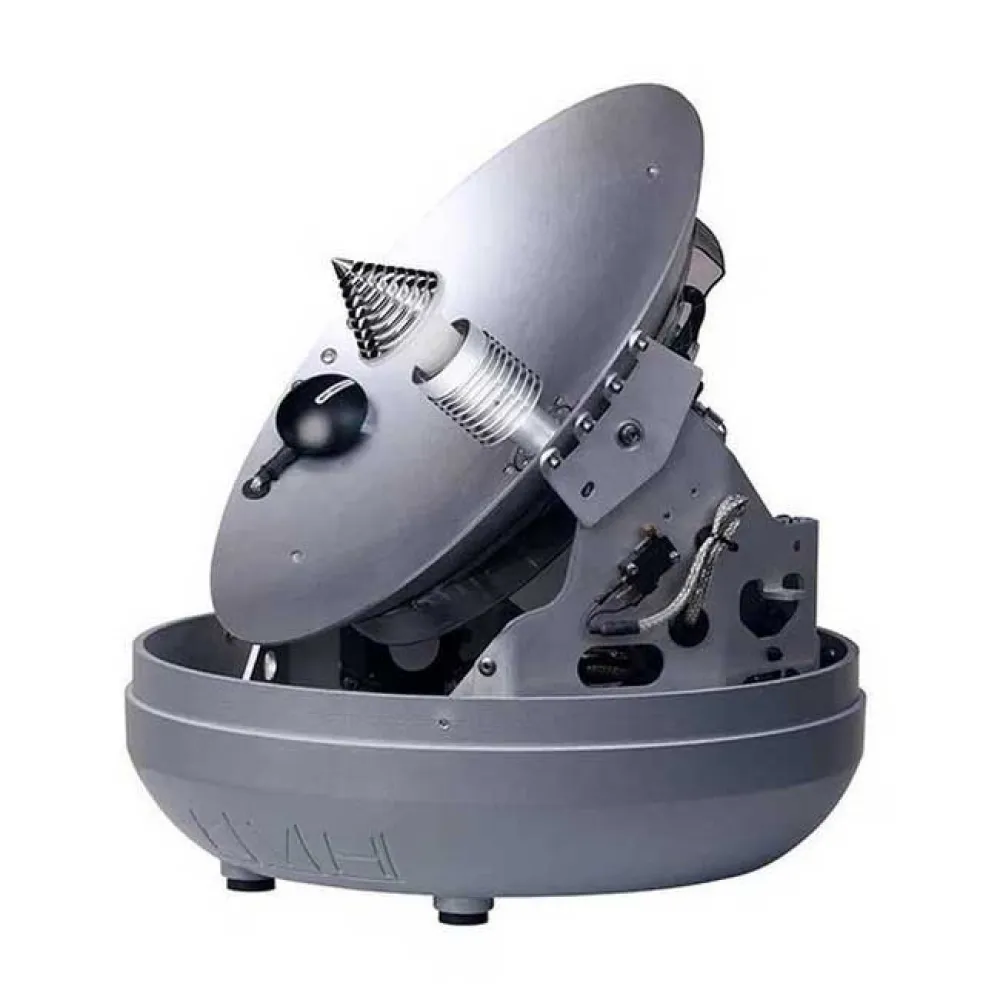

* 37 cm (14.5-inch) single-piece, high-gain carbon fiber dish antenna.
* DC-powered Integrated CommBox Modem (ICM) for streamlined below-deck equipment.
* High-performance tracking with a rotary joint for continuous cable rotation and uninterrupted signal reception.
* Two-axis stabilized pedestal design with a 3rd axis for automatic skew adjustment.
* Built-in Wi-Fi and user-friendly interface for easy system management and monitoring.
* Prioritized, crystal-clear VoIP service for reliable voice calls at sea.
* IoT Proactive Monitoring to report daily on antenna health and performance.

Antennas & Above-Deck Unit
* Dish Diameter: 37 cm (14.5 in)
* Antenna Unit Dimensions: 39.4 cm D x 44.7 cm H (15.5 in D x 17.6 in H)
* Antenna Unit Weight: 10.6 kg (23.4 lbs)
* G/T: 11.9 dB/K
* EIRP: 41.6 dBW

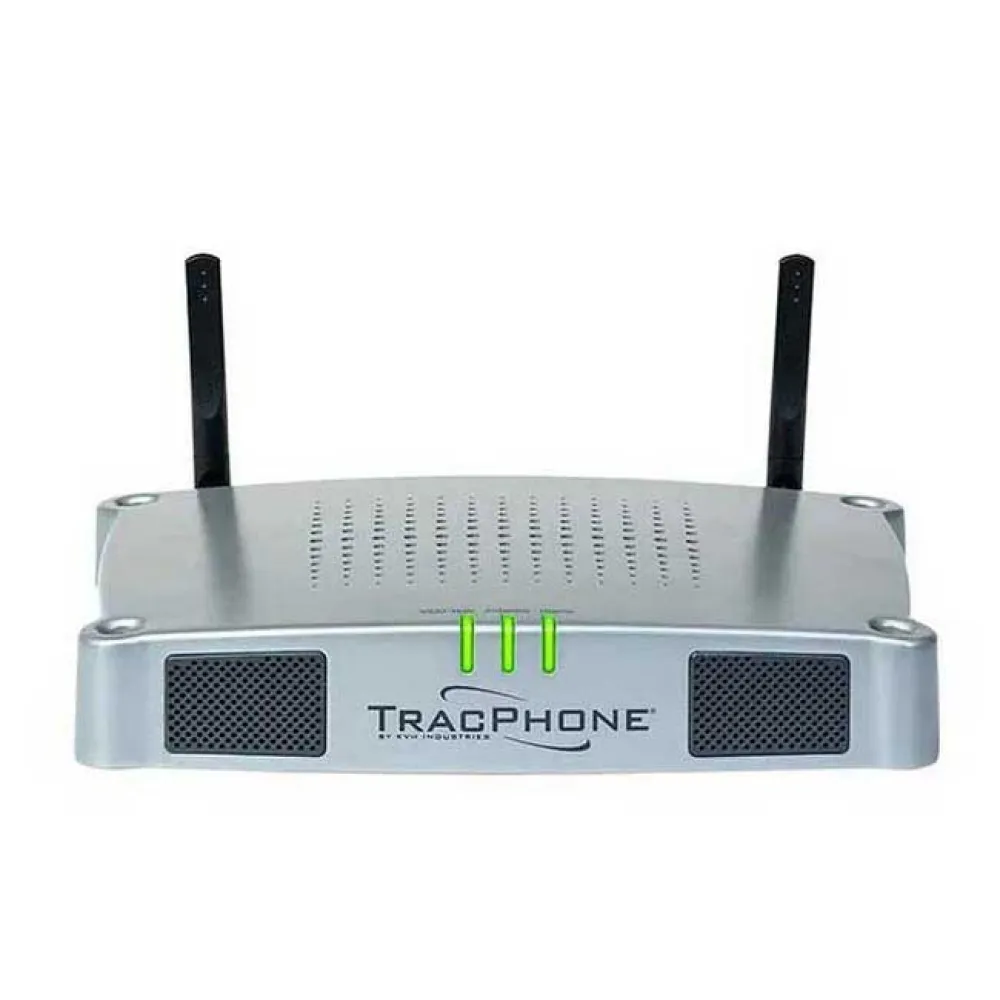

Below-Decks Unit (Integrated CommBox Modem - ICM)
* Dimensions: 29.5 cm x 29.2 cm x 5.1 cm (11.6 in x 11.5 in x 2.0 in)
* Weight: 1.6 kg (3.5 lbs)
* Power: 12-24V DC, 40W nominal, 70W max

Network Performance
* Network: Ku-band mini-VSAT Broadband HTS
* Maximum Download Speed: 6 Mbps
* Maximum Upload Speed: 2 Mbps
* System Cabling: Single RF coax cable for power, data, and reference

Upgrade your vessel with the KVH Tracphone V30 and experience the future of marine satellite communications, where small size delivers powerful, reliable, and affordable connectivity
