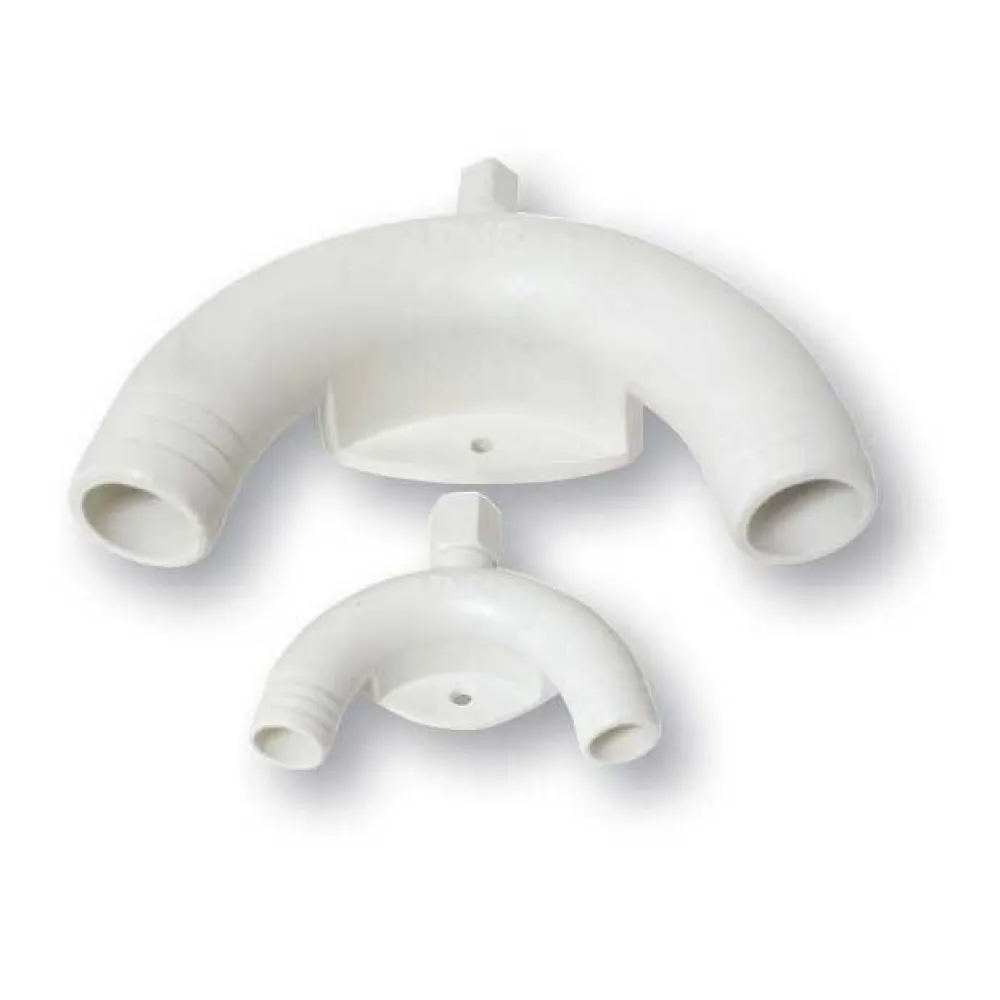

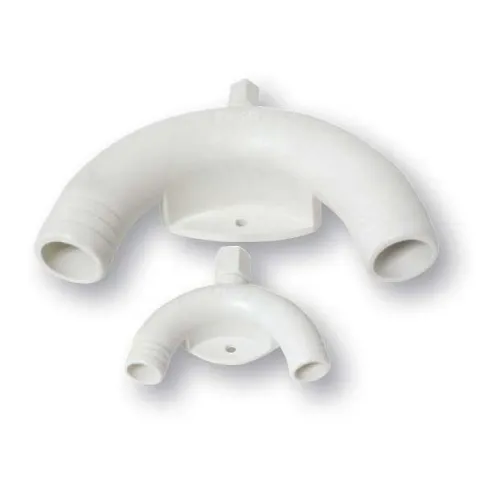

Lalizas Anti Vent Loop Connection Connector

LALIZAS Anti-Siphon Vented Loop Connector for Marine Toilets & Plumbing

Category: Electronics
Subcategory: Antennas

Protect your vessel from the silent but significant threat of flooding with the LALIZAS Anti-Vent Loop Connection Connector. This crucial safety component is an indispensable part of any marine plumbing system where an inlet or outlet is positioned below the waterline. It provides essential protection against accidental siphoning, ensuring your boat remains dry, safe, and secure whether at the dock or on the open water.

An anti-vent loop connection is required when the toilet installation is below the waterline. This prevents water inflow into the interior. In such configurations, a simple plumbing loop is not enough; a pressure differential can create a siphon effect, continuously drawing seawater back through the discharge hose, past the pump, and into the toilet bowl, eventually overflowing and causing significant water damage. The LALIZAS Vented Loop is expertly designed to automatically and reliably break this siphon, offering you complete peace of mind.

The Lalizas anti-vent loop connection is made of ABS and is available in two different sizes, engineered to withstand the harsh marine environment. Its robust construction ensures long-lasting performance and resistance to corrosion, saltwater, and common cleaning chemicals. At the top of the loop, a simple yet effective one-way valve allows air to enter the line when the pump is not in use, instantly breaking the vacuum and stopping any potential backflow. When the system is activated , the pressure of the outbound water closes the valve, allowing for normal operation without leaks.

Key Benefits:

* Prevents Catastrophic Flooding: Actively safeguards your boat´s interior by preventing dangerous back-siphoning from through-hull fittings located below the waterline.
* Enhances Onboard Safety: A critical safety device for marine head discharge lines, bilge pump outlets, and engine raw water cooling systems.
* Durable & Reliable Performance: Constructed from high-impact, marine-grade materials for exceptional durability and a long service life in saltwater conditions.
* Automatic Operation: The integrated one-way air valve works passively and automatically, requiring no manual intervention to protect your vessel.
* Versatile Installation: Suitable for a wide range of marine plumbing applications, providing a universal solution for siphon prevention.

Main Features:

* Engineered with barbed hose ends for a secure, leak-proof connection with standard marine hoses.
* Features an integrated, low-maintenance one-way duckbill valve that effectively breaks siphons.
* The compact and robust design allows for easy installation in tight engine rooms and compartments.
* Designed for vertical mounting in a loop that extends well above the vessel´s waterline.

Technical Specifications:

* Product: LALIZAS Anti-Vent Loop Connection Connector
* Attribute: Connectors
* Material: High-Impact, Corrosion-Proof ABS Plastic
* 19mm (¾”) & 25mm (1”)
* 38mm (1½”)
* Application: Marine Toilets, Bilge Systems, Raw Water Intakes/Outlets
* Valve Type: Integrated One-Way Air Valve
