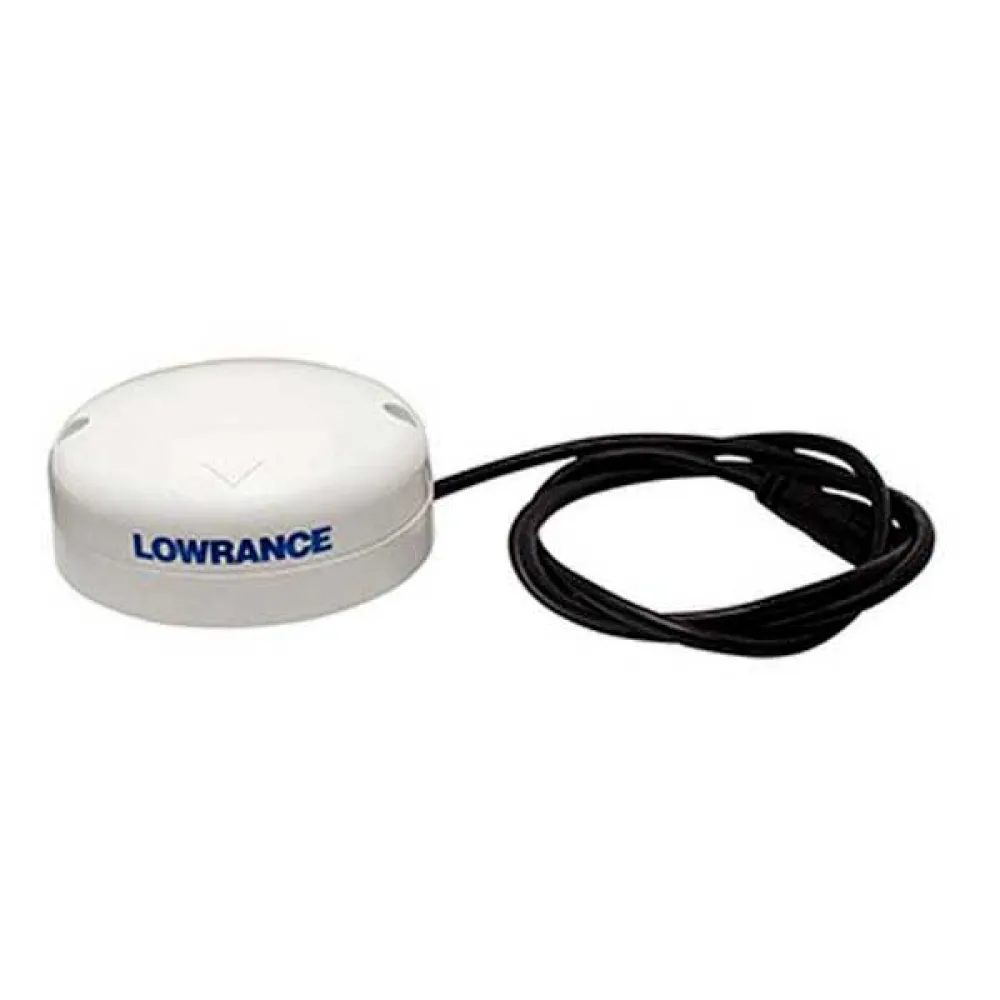

Lowrance Point 1 Antenna

Point-1 Antenna



PRECISION GPS/GLONASS RECEIVER WITH ELECTRONIC COMPASS:

The Lowrance Point-1 is the ideal position and heading device. The Point-1 provides extremely accurate and rapid boat position and speed updates. In addition – unlike other position-only antennas – the Point-1 provides heading for accurate boat direction at any speed and for radar/chart overlay.The Point-1 easily connects to any HDS Gen2, HDS Gen2 Touch or Elite-7 display or any NMEA 2000® network. It is fully waterproof and can be pole or surface mounted on any boat.



KEY FEATURES:



- NMEA 2000 position and heading sensor

- Supports GPS and GLONASS, Galileo-capable with future software update

- Supports SBAS including WAAS/EGNOS/MSAS

- 10 Hz updates for smooth and accurate location

- Integrated electronic compass provides 10Hz heading for chart stabilization and radar overlay, plus accurate course over ground even at low speeds

- Compact, rugged design for all marine environments and fully waterproof

- Includes spat/pole mount

- Not recommended for use with MARPA or Autopilot



WHAT’S IN THE BOX:



- Antenna/4 cable

- T connector

- Spat/pole mount

- Mounting hardware

- Gasket seal

- Install guide





Specifications:



Networking:

- NMEA 2000 Certified: Yes

- Connectors: NMEA 2000 Micro C



Power:

- Power Supply (Supply Voltage): 9v-18v

- GPS Navigation

- GPS Receiver Channels: 32

- Heading Accuracy: 3 degrees

- Horizontal Accuracy: 5 m

- Rate of Turn: 3 degrees

- Satellite Reacquisition: <5 seconds

- Start-up Time: <3 seconds

- Cold Start: <50 seconds

- Picth/Roll Angle: @30 degrees 1 grade correcto

- Technical/Environmental

- Diameter: 90 mm (3.54in)

- Product Height: 38 mm ( 1.50in)

- Product Weight: 0.3 lbs (approximately)
