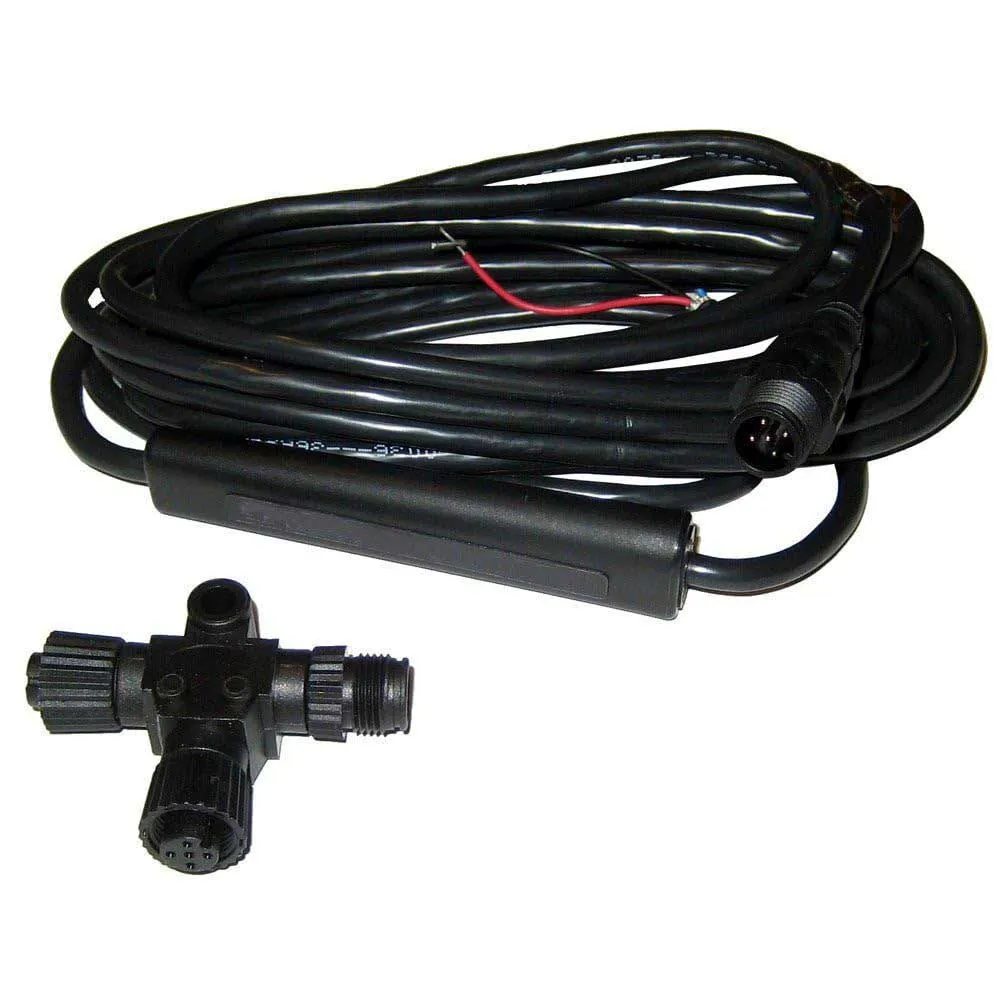

NAVICO Fluid Level Sensor | NMEA 2000 Fuel & Water Tank Monitoring

Gain complete confidence and precision control over your vessel´s fluid management with the NAVICO Fluid Level Sensor. Designed for the modern mariner, this essential piece of equipment eliminates the guesswork associated with traditional analog gauges by seamlessly integrating critical tank level data directly into your boat´s NMEA 2000 network. Stop wondering how much fuel you have left and start planning your voyages with the certainty that comes from accurate, real-time information displayed directly on your Lowrance, Simrad, or B&G multifunction display.

This intelligent sensor acts as a bridge, converting the standard analog output from your existing resistive tank sender into a digital NMEA 2000 signal. This means you can upgrade your boat´s instrumentation to a modern, networked system without the need to replace the sending unit already installed in your tank. Whether you´re monitoring fuel, fresh water, grey water, black water, or even oil, this versatile sensor provides the reliable data you need for safer and more enjoyable time on the water.

Key Benefits:

* Precision Monitoring: Replace unreliable, fluctuating analog needles with stable, digital readouts of your tank levels. Know your exact fuel or water capacity at a glance, allowing for better trip planning and resource management.
* Centralized Data Integration: View all your critical fluid levels directly on your primary navigation display. This integration enables advanced features on your MFD, such as calculating fuel range, time to empty, and setting low-level alarms for enhanced situational awareness.
* Enhanced Safety and Peace of Mind: By providing accurate fuel data, the NAVICO Fluid Level Sensor is a critical safety component, helping you avoid the dangerous situation of unexpectedly running out of fuel far from shore.
* Simple Plug-and-Play Installation: Featuring a standard NMEA 2000 Micro-C connector, the sensor connects directly to your network backbone, drawing minimal power and simplifying the wiring process for a clean and professional installation.

Main Features:

* Converts data from standard resistive-type fluid senders to NMEA 2000 PGNs (Parameter Group Numbers).
* Features dual-standard compatibility, allowing it to work with both the American standard (240-33 Ohm) and European standard (0-180 Ohm) tank senders.
* Effortless configuration directly from a compatible Lowrance, Simrad, or B&G multifunction display, allowing you to set the tank type, capacity, and instance number.
* Supports multiple sensor installations on a single network, enabling you to monitor numerous tanks simultaneously .
* Robust and compact design built to withstand the harsh marine environment, ensuring long-lasting reliability and performance.

Technical Specifications:

* Network Protocol: NMEA 2000
* Connector: NMEA 2000 Micro-C
* Power Source: NMEA 2000 Network Backbone (9-16 VDC)
* Power Consumption: < 50mA
* Load Equivalence Number (LEN): 1
* Supported Sender Resistance (American Standard): 240-33 Ohm
* Supported Sender Resistance (European Standard): 0-180 Ohm
* Configuration: Via compatible NAVICO (Lowrance, Simrad, B&G) MFDs
* Compatibility: Works with any NMEA 2000 certified network and display, with full configuration capabilities on NAVICO-branded units
