Navico SonarHub Module 8.28W

An easy-to-install, plug-and-play, all-in-one network solution -- the new SonarHub Sounder Module makes it easier than ever to connect to the latest sonar technologies for Lowrance HDS, Simrad and B&G multifunction displays - including CHIRP, StructureScan HD imaging and ForwardScan- as well as the new Lowrance SpotlightScan™ bow-mounted solution for HDS Gen2 models.

Key Points:- Compact, all-in-one sonar module delivers CHIRP sonar, StructureScan HD and ForwardScan technologies.

- CHIRP sonar delivers extremely efficient pulse generation that provides improved target resolution and noise rejection, as well as wide coverage for perfect arches that clearly identify fish targets.

- StructureScan HD offers best-in-class, side-scanning range and resolution, plus DownScan Imaging to provide crystal-clear, picture-like views of what´s beneath your boat.

- ForwardScan Know what lies ahead, with Simrad ForwardScan.

This forward-looking sonar provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly-charted waters with confidence.

- Optional transducers include all Lowrance blue-connector transducers, as well as all Airmar single channel CHIRP transducers and existing StructureScan® HD transducers.

- Compatible with ALL-NEW SpotlightScan™ surround-scanning sonar transducers.

- Plug-and-play compatibility with Lowrance HDS Gen1 (not including SpotlightScan and CHIRP sonar), HDS Gen2 and Gen2 Touch fishfinder/chartplotter models, as well as Simrad and B&G multifunction displays.

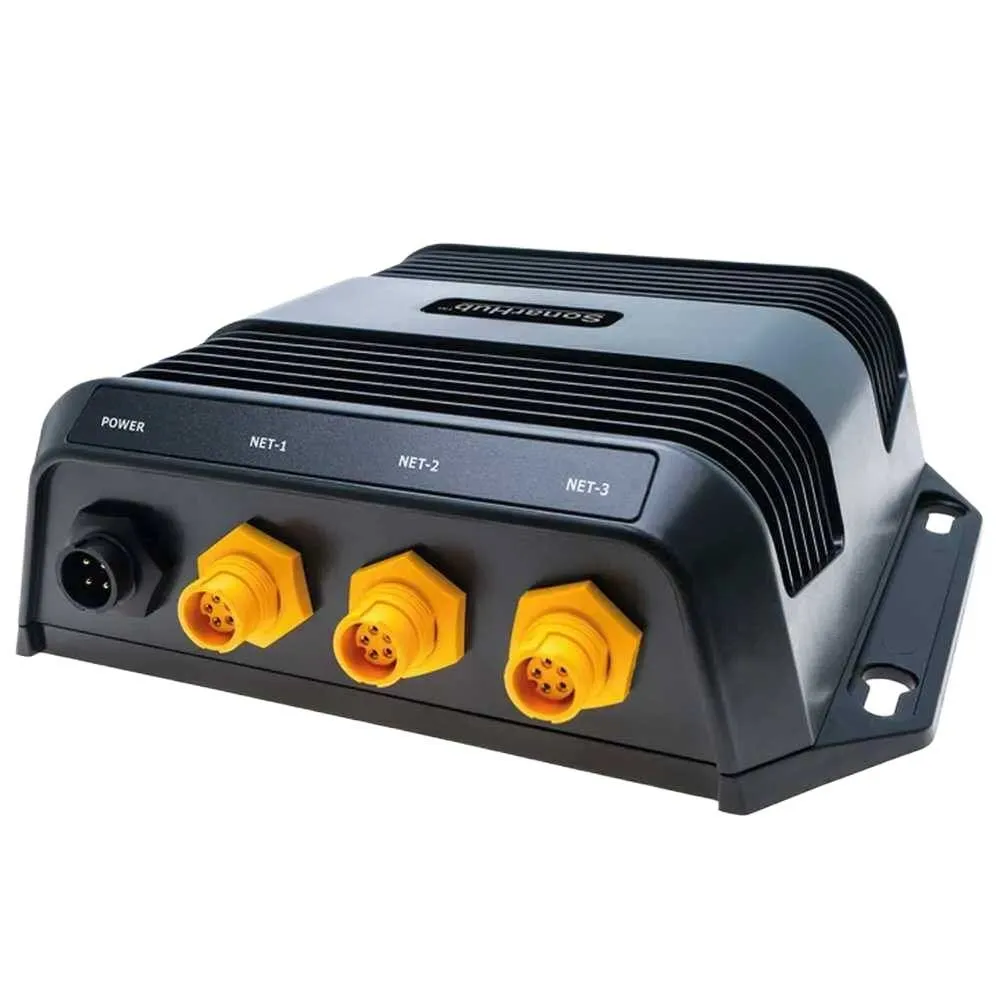

- Three built-in Ethernet ports allow for quick and convenient networking without the need for an extra Ethernet networking module.

- Supported by Advantage Service programs for B&G, Simrad and Lowrance - High performance sonar module including both StructureScan HD/Forward scan + CHIRP sonar - View DownScan Imaging, Side Scan Imaging plus a single frequency 50, 83, or 200Khz all at one time with a single SonarHub - While using CHIRP sonar SideScan and Down Scan will not be available SonarHub Sonar Module not required for SpotlightScan™ functionality with HDS Gen2 Touch displays.

SonarHub may require a software update.

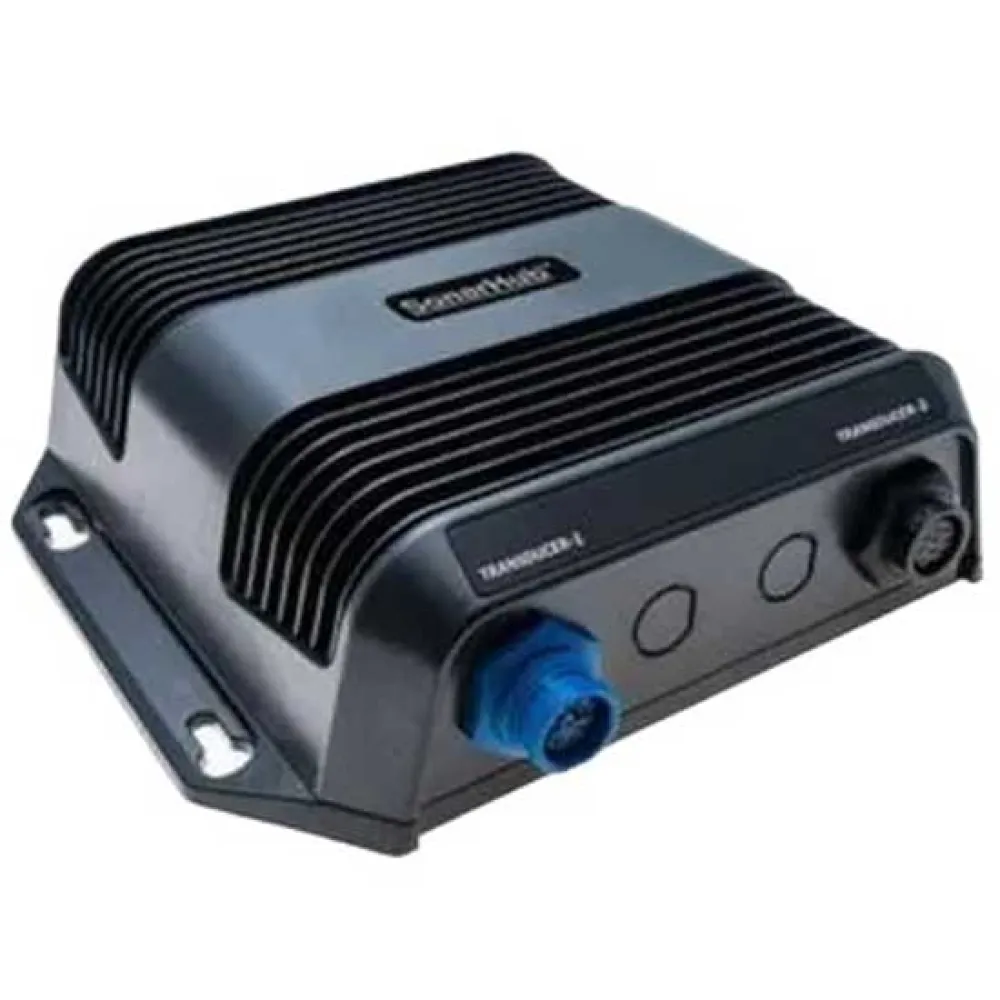

Check the SonarHub web page for the latest version Only once source can be used at a time Technical/Environmental:- Product Width:180 mm / 7.1 in - Product Height:57 mm / 2.2 in - Product Weight:0.9 kg / 2 lbs - Operating Temperature:-28° to 75° C (-20° to 167° F) - Water Resistance:1PX-7 - Power Supply (Supply Voltage):12 or 24 V DC(max range 9 V to 32 V DC) Sonar Performance:- StructureScan - Output Power:500w RMS - Max Side Range:300ft each side - Max Down Range:300 ft - Frequency:455 & 800kHz - CHIRP and Single Frequency Sonar - Output Power:250w RMS - Max Depth:3,500 ft- Transdcuer Dependent - CHIRP Frequency :40-60kHz, 85-145kHz, 130-210kHz - Narrow Band Frequency :50 kHz/83kHz/200kHz - Six Cable Connections - Ethernet:3 ports - Power:4 Pin power connector - Transducer Port 1:Blue 7 pin sonar connector for CHIRP and narrow band transdcuers - Transducer Port 2:Black 9 pin connector for use with StructureScan HD and Spotlight transdcuers.
