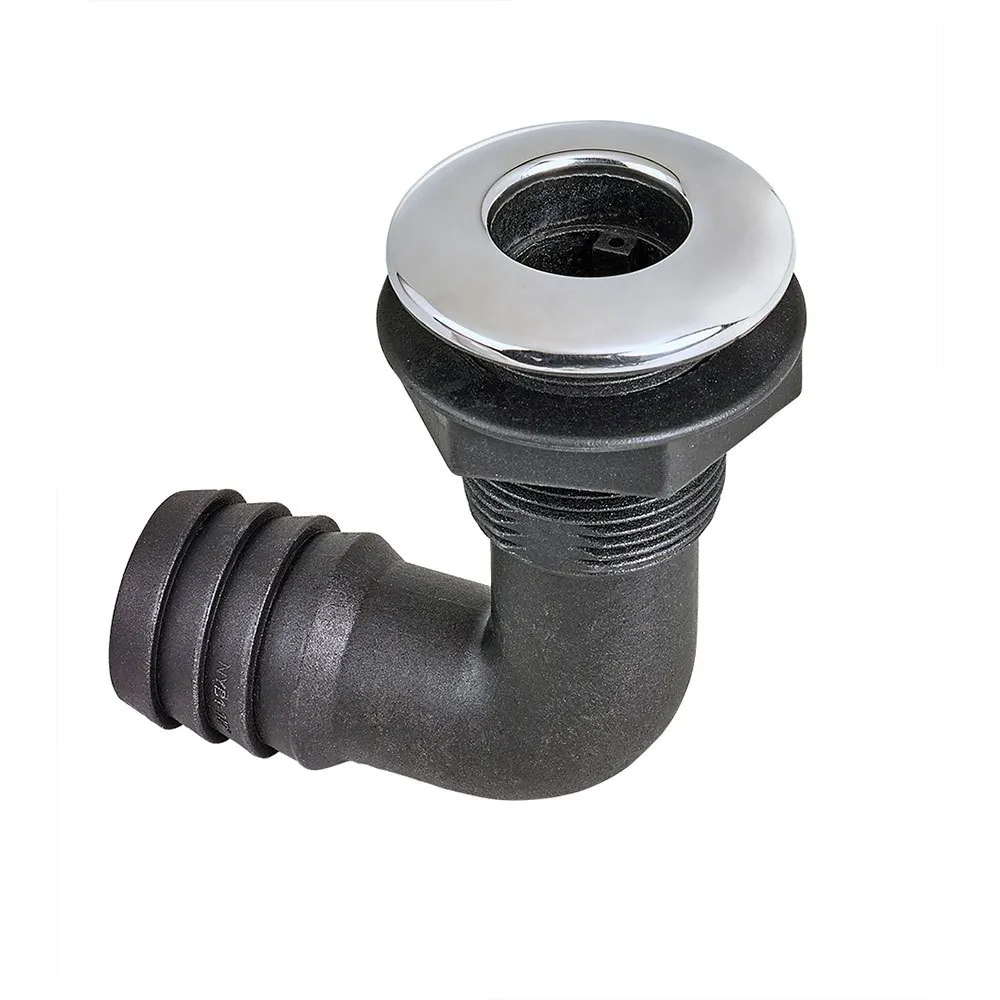

Plastimo 1´´ Elbow thru-hull

PLASTIMO 1´´ Elbow Thru-Hull | Space-Saving & Reliable Marine Plumbing Solution

Upgrade your vessel’s plumbing system with the expertly engineered PLASTIMO 1” Elbow Thru-Hull, a premium component designed for performance and durability within the demanding marine environment. As a crucial part of your boat´s plumbing and equipment, this fitting ensures a secure, leak-proof, and efficient connection for all your water management needs. Its innovative 90-degree design is a game-changer for installations where space is at a premium, providing a professional solution that enhances both safety and functionality.

Key Benefits:

The primary advantage of this PLASTIMO thru-hull is its integrated 90-degree elbow. This clever design eliminates the need for an additional elbow fitting, saving valuable space in tight compartments like engine rooms, bilges, or under-deck lockers. By providing a direct right-angle connection, it prevents sharp bends and kinks in your hosing. This not in any way only ensures unrestricted water flow but also significantly reduces stress on the hose and its connections, prolonging the life of your entire plumbing assembly and minimizing the risk of fatigue-related failures. Built for the harsh realities of saltwater and freshwater exposure, this fitting offers exceptional longevity, giving you peace of mind whether you are moored or on the open water.

Main Features:

Crafted with precision, the PLASTIMO 1” Elbow Thru-Hull boasts a robust construction from a high-strength, UV-stabilized material that is completely impervious to corrosion and electrolysis—common failure points for lesser fittings. The wide outer flange provides a large surface area for bedding sealant, ensuring a superior, watertight seal against the hull. Its smooth, full-flow interior bore is designed to handle high volumes of water from bilge pumps, drains, or scuppers without creating back-pressure. The robust threading ensures a secure and tight fit for the locking nut, guaranteeing a stable installation that will not loosen over time due to vibration or hull flex. This component is engineered to meet the stringent ISO 9093-2 standards, certifying its quality and suitability for use both above and below the waterline.

Technical Specifications:

* Product Type: Elbow Thru-hulls
* Brand: PLASTIMO
* Category: Boats and equipment
* Subcategory: Plumbing
* Hose Connection (Inner Diameter): 1” (25 mm)
* Thread Size: 1” BSP
* Required Hull Cut-out Diameter: 34 mm
* Maximum Hull Thickness: 25 mm
* Flange Diameter: 60 mm
* Angle: 90 degrees
* Application: Suitable for use above and below the waterline.

Ideal for bilge pump outlets, sink drains, cockpit scuppers, and livewell systems on both sail and powerboats, the PLASTIMO 1” Elbow Thru-Hull represents the pinnacle of modern marine plumbing. Choose this fitting for a reliable, space-efficient, and long-lasting installation that protects the integrity of your vessel
