PROS Actuator Arrows Up Down Switch.

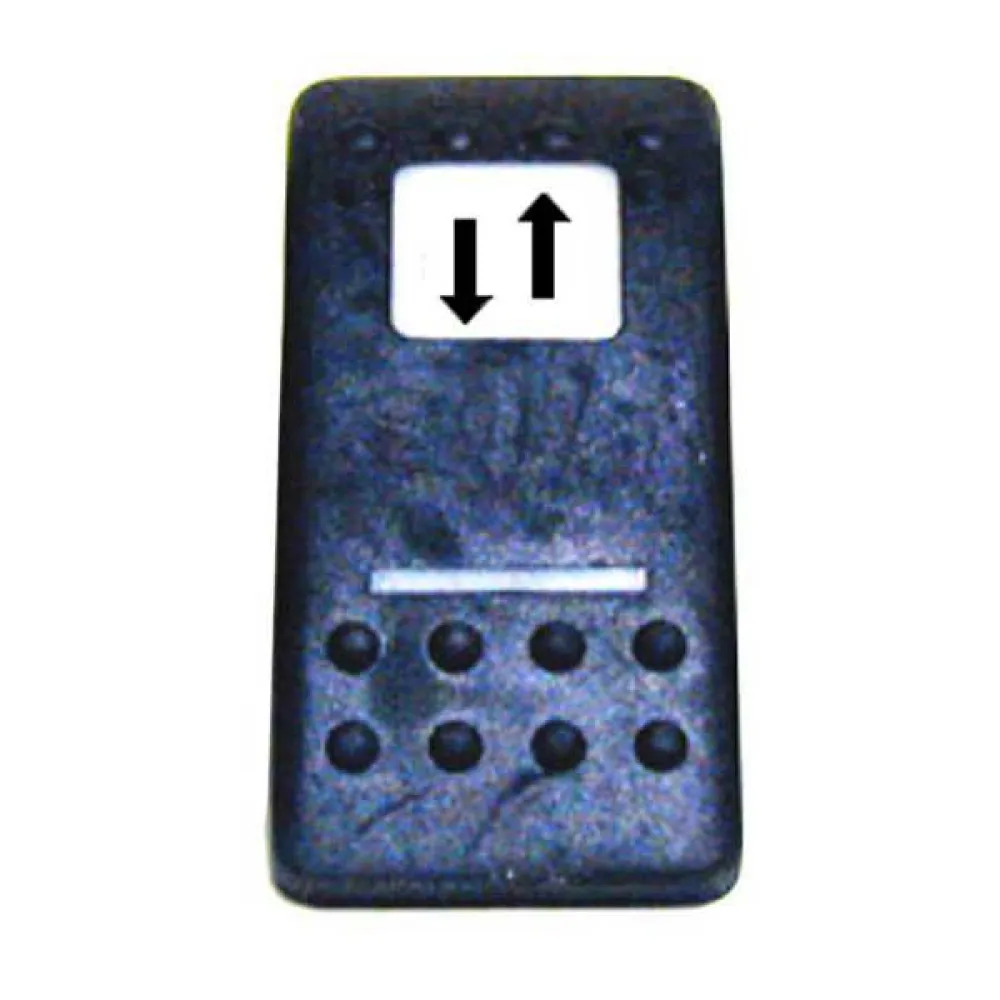

Actuator arrows up / down carling switch contura ii.

Experience precise and reliable control over your electrical actuators with the PROS Actuator Arrows Up Down Switch. Engineered for performance in the most demanding environments, this switch is the professional´s choice for operating a wide range of equipment, from marine trim tabs and anchor windlasses to automotive hydraulic lifts and RV slide-outs. Its intuitive design, featuring universally recognized up and down arrows, ensures effortless operation, allowing you to make exact adjustments with confidence. Built upon the robust and industry-proven Carling Contura II switch body, this component guarantees exceptional durability and a long service life, even when subjected to constant vibration, shock, and temperature extremes.

The primary benefit of the PROS Actuator Switch is its unwavering reliability. Designed specifically for motor-reversing applications, its momentary action provides immediate power to your actuator only when the switch is pressed, preventing accidental continuous operation and potential damage to your equipment. This feature is critical for applications requiring fine-tuning and precise positioning. Furthermore, its superior construction provides outstanding protection against the elements, making it an ideal solution for marine and off-road use where exposure to water, salt spray, dust, and humidity is a constant concern.

Key Benefits:

* Intuitive and Safe Operation: The momentary (ON)-OFF-(ON) functionality ensures that power is only applied while the switch is actively pressed, offering superior control and preventing motor burnout or mechanical strain. The clear arrow icons eliminate any guesswork.
* Exceptional Durability: Built on the world-renowned Carling Contura II platform, this switch is designed to withstand harsh marine, automotive, and industrial conditions, resisting vibration, thermal shock, and moisture.
* Versatile Application: Perfectly suited for controlling any 12V or 24V DC reversing motor. Ideal for boat trim tabs, hatch lifts, windlasses, jacks, RV slide-outs, agricultural equipment, and custom vehicle modifications.
* Weatherproof Performance: Featuring a high Ingress Protection rating, the switch is sealed against dust and powerful water jets, ensuring flawless performance whether on the open water or a muddy trail.

Main Features:

* Ergonomic rocker design with a tactile, non-slip finish for positive engagement.
* Laser-etched or pad-printed arrow graphics for high visibility and wear resistance.
* Momentary (ON)-OFF-(ON) switch action for precise, on-demand actuator control.
* Double Pole, Double Throw (DPDT) internal circuitry designed for reversing polarity on DC motors.
* Industry-standard body size for seamless installation into existing or new switch panels.
* Utilizes standard .250" quick-connect terminals for simple and secure electrical connections.

Technical Specifications:

* Attribute: Switches
* Type: Rocker Switch, Momentary
* Style: Carling Contura II
* Function: (ON)-OFF-(ON)
* Circuitry: DPDT (Double Pole, Double Throw)
* Voltage Rating: 12V / 24V DC
* Amperage Rating: 20A @ 12V DC, 15A @ 24V DC
* Ingress Protection: Rated IP67
* Mounting: Fits standard panel cutout of 0.83" x 1.45" (21.08mm x 36.83mm)

Upgrade your control system with the PROS Actuator Arrows Up Down Switch and ensure dependable, precise, and safe operation of your critical equipment for years to come
