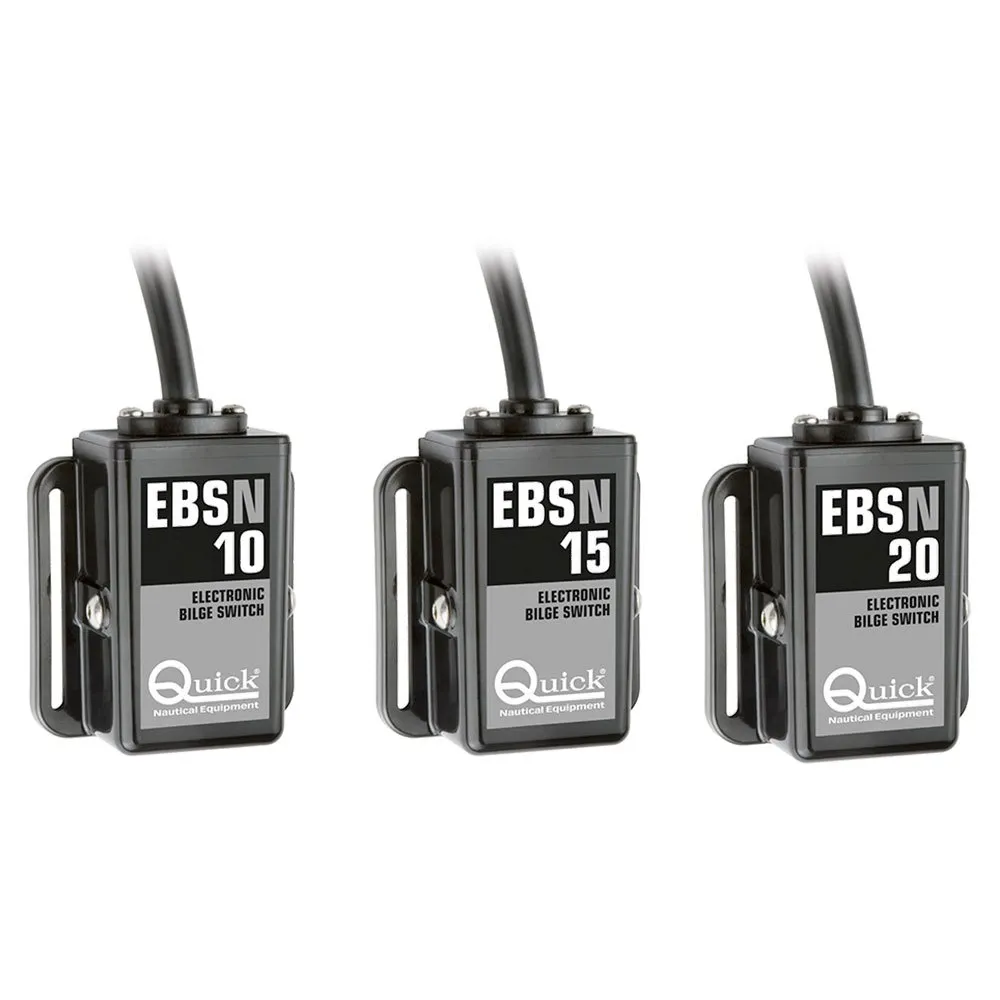

Quick EBSN 15 Electronic Switch

QUICK EBSN 15 Electronic Bilge Pump Switch | 12V / 24V

Ensure the ultimate safety and peace of mind on your vessel with the QUICK EBSN 15 Electronic Switch, a state-of-the-art solution for automated bilge pump control. Designed for discerning boat owners who demand reliability and precision, this advanced switch eliminates the common failures associated with traditional mechanical float switches. By leveraging cutting-edge technology, the EBSN 15 provides a dependable, "set-and-forget" system to keep your bilge dry and your boat protected, whether you are on board or ashore.

At the heart of the QUICK EBSN 15 Electronic Switch is a sophisticated operation managed by a microcontroller. This intelligent core works in tandem with an advanced digital filter to accurately distinguish the presence of water from other liquids like fuel or oil. This ensures that the bilge pump is activated only when necessary, preventing environmental contamination and unnecessary pump wear. Its solid-state design means there are no moving parts to jam, stick, or corrode over time, offering superior longevity and performance compared to conventional switches.

To avoid false activations caused by the natural rolling and pitching of the boat or water sloshing in the bilge, the switch has a built-in delay of 5 seconds for activation. This smart feature ensures the pump engages only when a consistent level of water is detected. Furthermore, it incorporates a 20-second delay in deactivation, allowing the pump to clear the maximum amount of residual water from the bilge for a drier, safer environment.

The EBSN 15 offers enhanced control and monitoring. It features an option for a manual remote pump switch-on by using a simple push button or integrating with a remote control panel . This allows you to test the pump or manually clear the bilge at any time. Additionally, you can achieve remote indication of the pump´s operation status via an external LED or through the optional remote control panel, giving you clear visual confirmation that your bilge system is functioning correctly.

Key Benefits:

* Unmatched Reliability: Solid-state, non-mechanical design with no moving parts eliminates the risk of jamming, sticking, or failure common in float switches.
* Intelligent Water Detection: The microcontroller and digital filter system intelligently activate the pump only for water, preventing false starts from oil, fuel, or sludge.
* Enhanced Safety: Prevents nuisance pump cycles from boat movement with smart activation and deactivation delays, conserving battery power and extending pump life.
* Complete Protection: Fully resin-coated and sealed electronics provide total waterproofing and protection against the harsh marine environment.
* Versatile Control: Offers the flexibility of both fully automatic operation and manual override for complete control over your bilge system.

Main Features:

* Microprocessor-controlled electronic bilge pump switch
* Advanced digital filtering for precise water detection
* Integrated 5-second activation delay
* Integrated 20-second deactivation delay
* Provision for manual remote pump switch-on (via button or optional panel)
* Provision for remote LED operation status indicator (via LED or optional panel)
* Solid-state construction with no moving components
* Completely waterproof and corrosion-proof housing
---

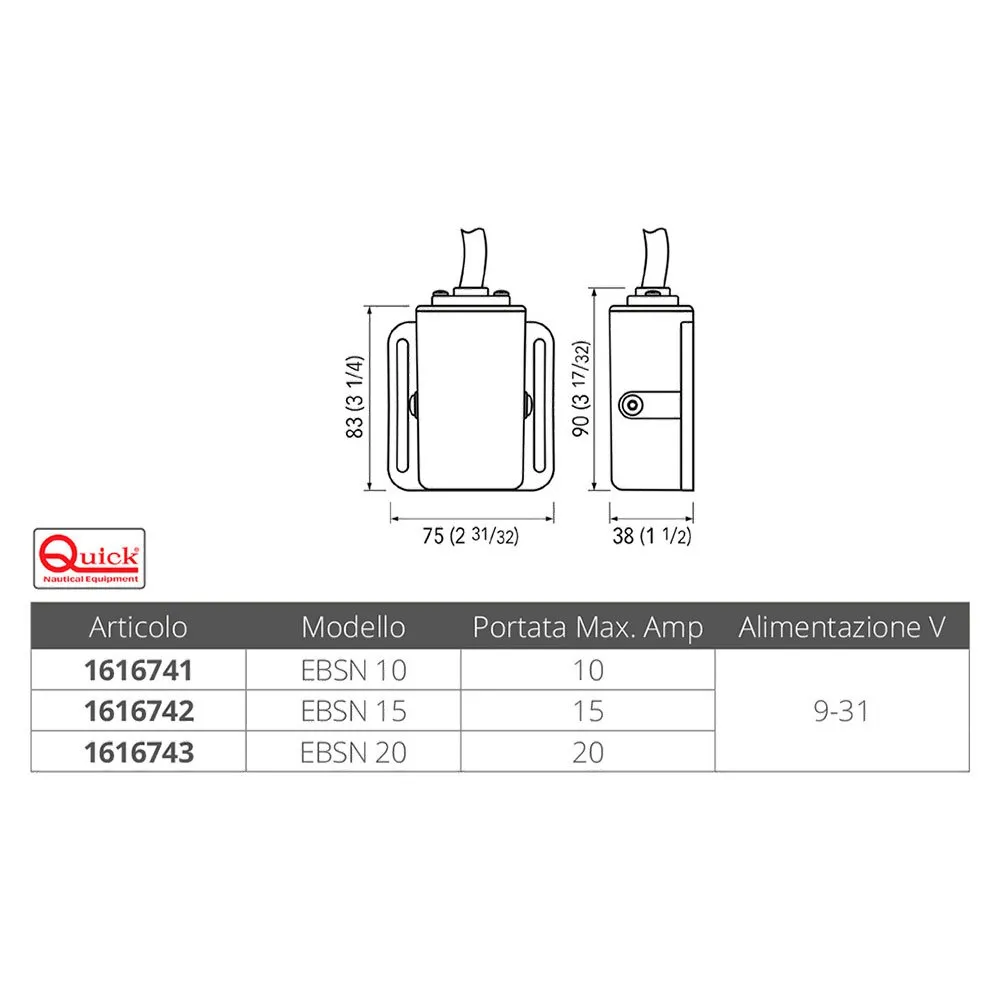

Technical Specifications:

* Model: QUICK EBSN 15 Electronic Switch
* Maximum Current Capacity: 15 A
* Stand-by Current Absorption (12V): 18 mA
* Protection Degree: IP68
* Activation Delay: 5 seconds
* Deactivation Delay: 20 seconds
