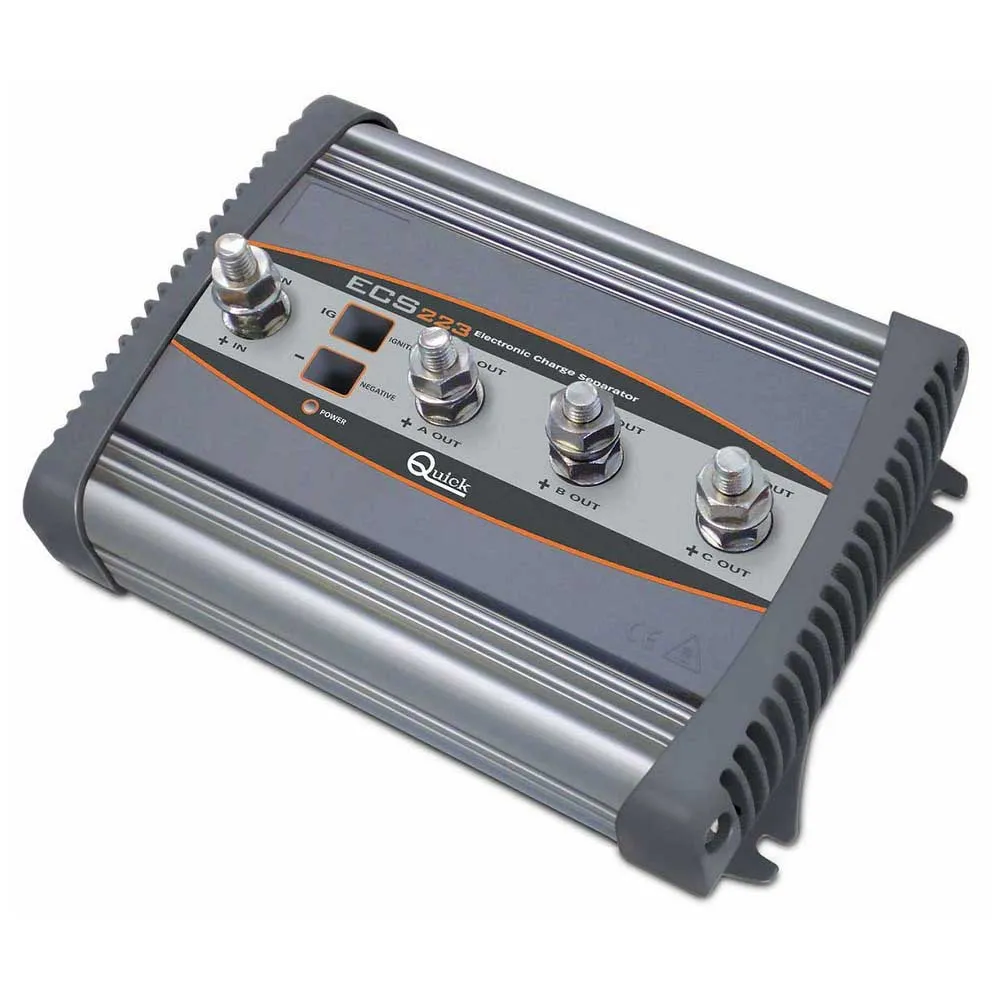

QUICK ITALY ECS223 Electronic Charge Separator 220A

Product Description

Ensure your vessel or vehicle´s power system operates with unparalleled efficiency and reliability with the QUICK ITALY ECS223 Electronic Charge Separator. Designed for demanding marine and automotive environments, this 220A unit is the definitive solution for managing and distributing charge across multiple battery banks. Part of the advanced Electrical Connections category, the ECS223 eliminates the common issues associated with traditional diode-based isolators, providing a modern, intelligent approach to power management. By prioritizing charge to the most depleted battery and ensuring all banks receive an optimal charge, this device guarantees your engine starter battery remains protected and fully charged, giving you complete peace of mind whether you´re at sea or on the road.

The core advantage of the QUICK ITALY ECS223 lies in its sophisticated MOSFET technology. Unlike older separators that cause a significant voltage drop, the ECS223 boasts a negligible drop, ensuring your batteries receive the full voltage from your alternator or battery charger. This leads to faster, more complete charging cycles, which significantly extends the lifespan of your expensive batteries and maximizes their performance. It intelligently distributes current from a single charging source to up to three separate battery banks, such as a starter battery and two service or auxiliary batteries, without allowing them to discharge into one another.

Key Benefits:

* Optimal Battery Charging: Utilizes advanced MOSFET technology to ensure a virtually non-existent voltage drop, allowing your batteries to charge faster and more efficiently at their ideal voltage.
* Extended Battery Lifespan: By preventing undercharging and ensuring a proper charge profile, the ECS223 helps to maintain battery health and prolong its service life, saving on costly replacements.
* Enhanced System Reliability: Flawlessly isolates battery banks, guaranteeing that the use of house electronics will not drain your critical engine starter battery.
* Fully Automatic Operation: Features intelligent automatic voltage detection, seamlessly adapting to both 12V and 24V DC systems without requiring any manual configuration.
* Energy Efficient: Engineered for extremely low power consumption, the device draws minimal power, preserving energy for your essential systems.

Main Features:

* High-current charge distribution with a robust 220A capacity.
* Manages the charge for up to three independent battery banks.
* Built with state-of-the-art MOSFET technology for superior performance.
* Automatic selection of 12V / 24V system voltage.
* Integrated protection against over-temperature conditions for enhanced safety.
* Provides complete electrical isolation between battery circuits.
* Compact and durable construction designed for marine and vehicle installations.

Attribute: Charge Separators

Technical Specifications:

* Model: ECS223
* Type: Electronic Charge Separator
* Maximum Charge Current: 220 A
* Number of Outputs (Battery Banks): 3
* System Voltage: 12V DC / 24V DC (Automatic Detection)
* Technology: MOSFET
* Voltage Drop: Negligible
* Protections: Over-temperature
* Operating Ambient Temperature: -20°C to +70°C
* Cooling: Natural convection

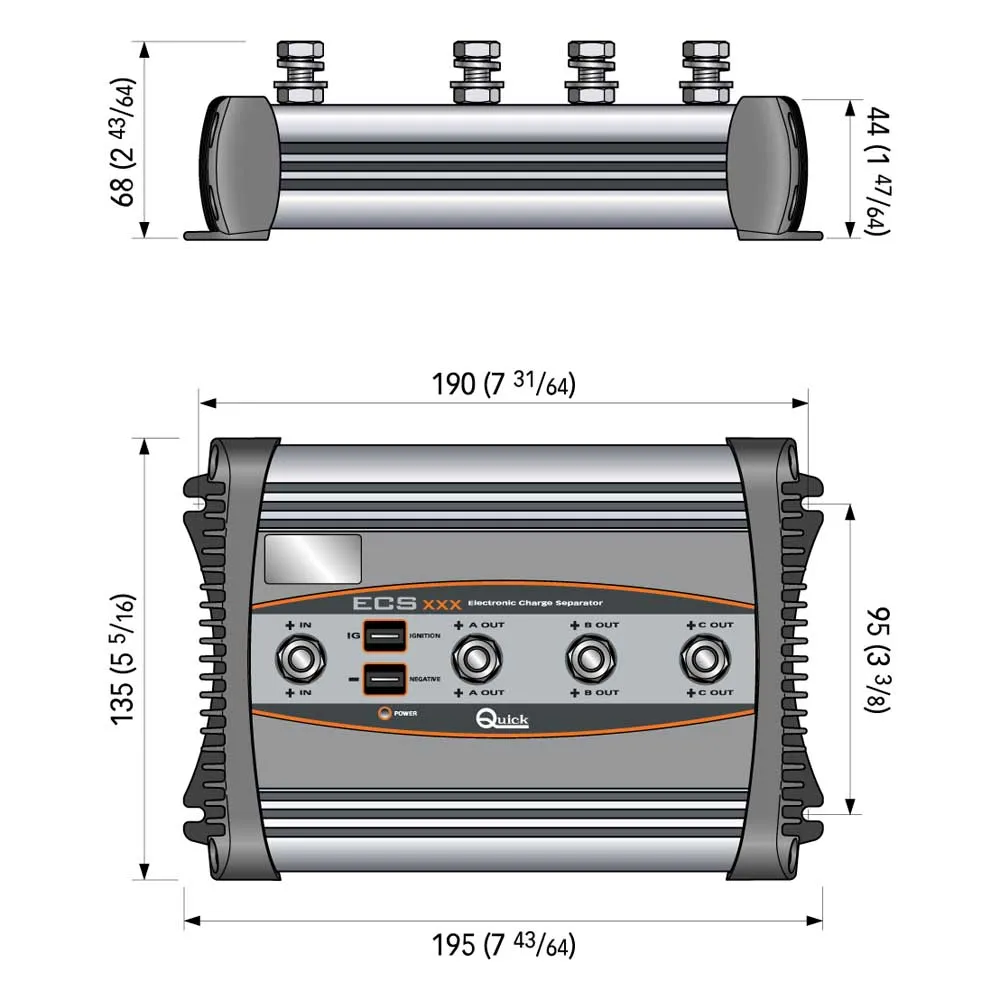

* Dimensions (W x H x D): 146x134 x 80 mm (5.7" x 5.3" x 3.1")
* Weight: 1.2 kg (2.65 lb)

Upgrade your electrical system with the QUICK ITALY ECS223 and experience the next generation of intelligent, reliable, and efficient multi-battery management
