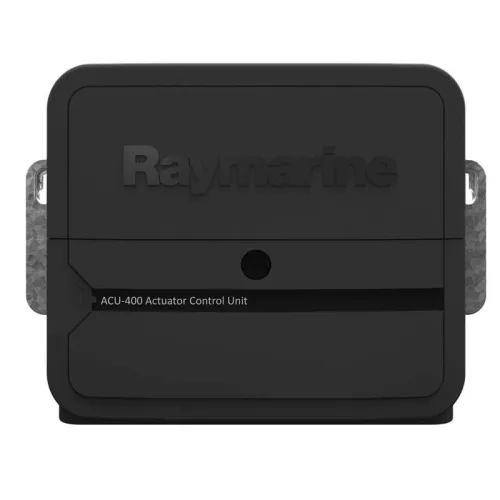

Raymarine ACU-400 Evolution Autopilot Actuator Control Unit

Experience unparalleled autopilot performance and unwavering command on the water with the Raymarine ACU-400 Evolution Actuator Control Unit. As the powerful core of the award-winning Evolution autopilot system, the ACU-400 is engineered to provide robust, reliable power and precise control for larger vessels with higher-capacity steering systems. Designed for the most demanding marine environments, this essential component translates the intelligent commands from the EV-1 sensor core into powerful, decisive action at the rudder, ensuring your vessel stays true to its course in any sea state.

The ACU-400 is one of the key modules in the Evolution ecosystem, serving as the muscular link between the system´s brain and the vessel´s steering mechanism. It delivers ample, consistent power to a wide range of Raymarine hydraulic, mechanical linear, and rotary drive units. This makes it the ideal choice for larger sailboats and motor yachts that require significant force to manage their steering systems effectively. Its rugged construction ensures long-lasting durability, giving you the confidence to navigate coastal waters or embark on long-distance offshore passages. The intelligent design of the ACU-400 integrates seamlessly into your boat´s network, providing a stable and highly responsive autopilot experience that feels like a seasoned helmsman is at the wheel.

Key Benefits
* Heavy-Duty Power: Delivers substantial and reliable power, making it perfectly suited for controlling Type 2 and Type 3 Raymarine drive units on larger vessels.
* Seamless Network Integration: Utilizes SeaTalkng networking for a simple, single-cable connection to the Evolution EV-1 sensor core and the rest of your Raymarine electronics, including chartplotters and instrument displays.
* Superior Reliability: Built to withstand the harsh marine environment, the ACU-400 provides consistent, dependable performance when you need it most, ensuring safety and peace of mind.
* Intelligent Rudder Control: Includes a connection for a rudder reference unit (sold separately), which provides critical data to the Evolution system for ultimate steering accuracy and performance.

Main Features
* Robust power output for Type 2 and Type 3 hydraulic, linear, and rotary mechanical drive units
* SeaTalkng connectivity for power and data connection to the Evolution system
* Dedicated power connection for the drive unit
* Rudder Reference Unit sensor input
* Sleep switch input for easy system deactivation
* Dedicated clutch connection
* Compatibility with 12-volt and 24-volt DC electrical systems

Technical Specifications
* Nominal Supply Voltage: 12 V / 24 V DC
* Operating Voltage Range: 10.8 V to 31.2 V DC
* Power Consumption (Standby): 300 mA (12 V / 24 V)
* Drive Clutch Output: Up to 4 A continuous at 12V/24V selectable
* Connections: Evolution sensor core, drive motor, drive clutch, rudder reference sensor, sleep switch, ground
* Data Connections: SeaTalkng
* Waterproofing Standard: Drip resistant
---

Choosing Your Evolution System

Evolution Autopilots can be purchased as a system pack with a drive unit, a system pack without a drive unit or as individual components. If you are unsure what you require, speak with your local dealer who will be able to offer advice and suggest the best package for your vessel.

Evolution System Packs with Drives

Picture above shows EV-100 Tiller pack. Select a part number to learn more about what is included in each Evolution System Pack
