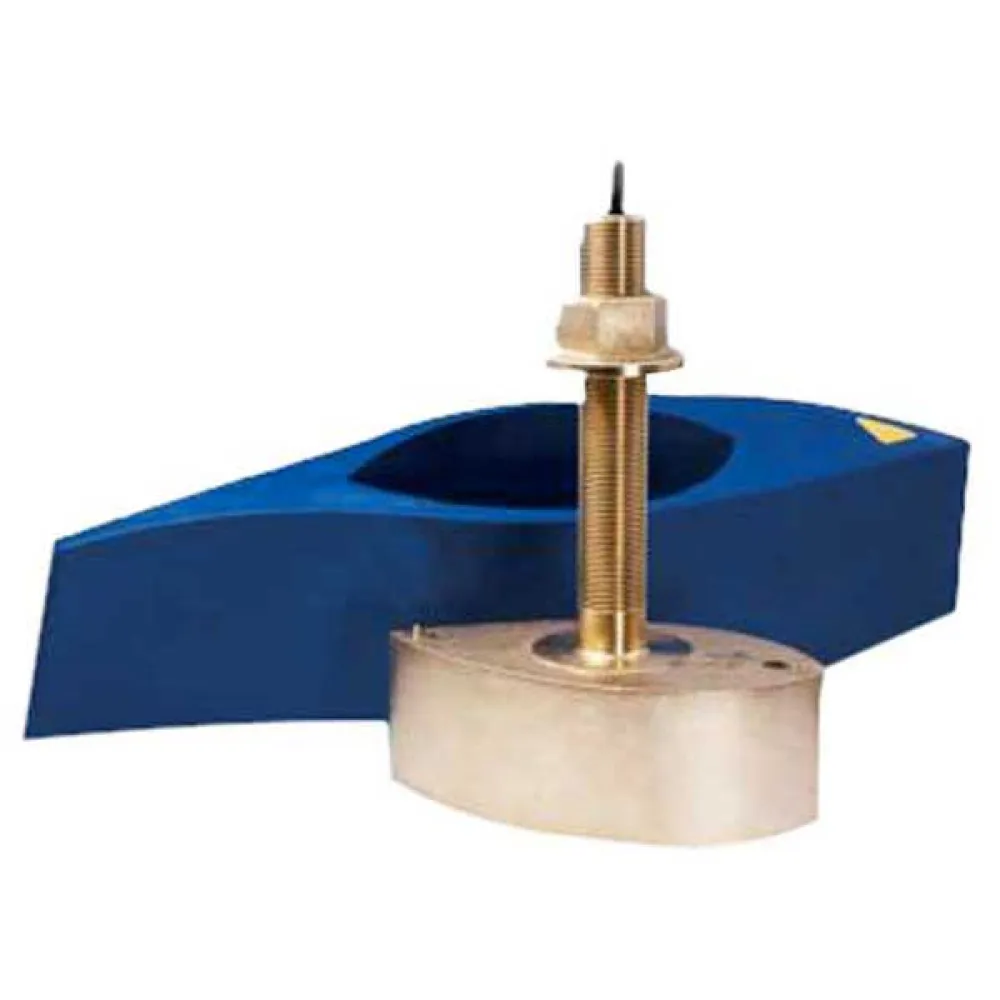

Raymarine B260 Transducer

Raymarine B260 1kW Bronze Thru-Hull Transducer

Unleash the full potential of your marine electronics with the Raymarine B260, a high-performance thru-hull transducer engineered for the serious offshore angler and discerning mariner. As a premier choice in Raymarine´s line of thru-hull transducers, which range from 0.61 kW to 2.9 kW, the 1kW B260 stands out for its exceptional depth capability and target definition. This professional-grade sensor is designed to transform your compatible sounder module into a powerful tool for exploring the depths, locating structure, and identifying fish with unparalleled clarity.

The B260 is the definitive upgrade for those who demand superior performance in deep water. Its robust construction and advanced internal elements provide clean, crisp returns, allowing you to distinguish between bait balls and game fish, and to precisely map bottom contours. Whether you are trolling the canyons for pelagic species or searching for wrecks and reefs, the B260 delivers the detailed information you need to increase your success on the water.

Key Benefits:

Experience a new level of underwater intelligence with the Raymarine B260. Its powerful 1000-watt output penetrates deep water with ease, revealing fish and bottom structure that lower-power transducers simply cannot see. The dual-frequency capability offers unmatched versatility, providing broad coverage for searching deep water and high-resolution detail for pinpointing targets in shallower zones. Built for durability and optimal hydrodynamic performance, this transducer ensures you receive clear, reliable data even when cruising at speed.

Main Features:

* High-Performance Thru-Hull Design: Engineered for permanent installation, the thru-hull mounting provides direct, unobstructed contact with the water, resulting in the cleanest possible signal and most accurate readings.
* Dual-Frequency 50/200 kHz Operation: Gain the ultimate advantage with two frequencies in one unit. The 50 kHz frequency uses a wide beam for exceptional deep-water penetration and broad area searching, while the 200 kHz frequency offers a narrower beam for crisp, high-resolution images of fish and structure in shallower water.
* Powerful 1000-Watt Output: With 1 kW of power, the B260 is a true deep-water performer, capable of reaching extreme depths and providing clear target separation for serious sportfishing applications.
* Includes High-Performance Fairing Block (E66034): The included fairing block is essential for performance. It smooths the water flow over the transducer´s face, reducing turbulence and drag. This ensures clear, interference-free readings at higher speeds and optimizes the transducer´s performance in all conditions.

Technical Specifications
* Product: RAYMARINE B260 Transducer
* Installation Type: Thru-hull
* Material: Bronze Housing
* Power Rating: 1000 Watts (1 kW)
* Frequency: 50 kHz / 200 kHz
* Data Provided: Depth and Temperature
* Included Components: High-Performance Fairing Block (Raymarine Part E66034)
* Primary Compatibility: Engineered for optimal performance with the Raymarine DSM300 sounder module and other compatible 1kW Raymarine fishfinders and sounder systems
