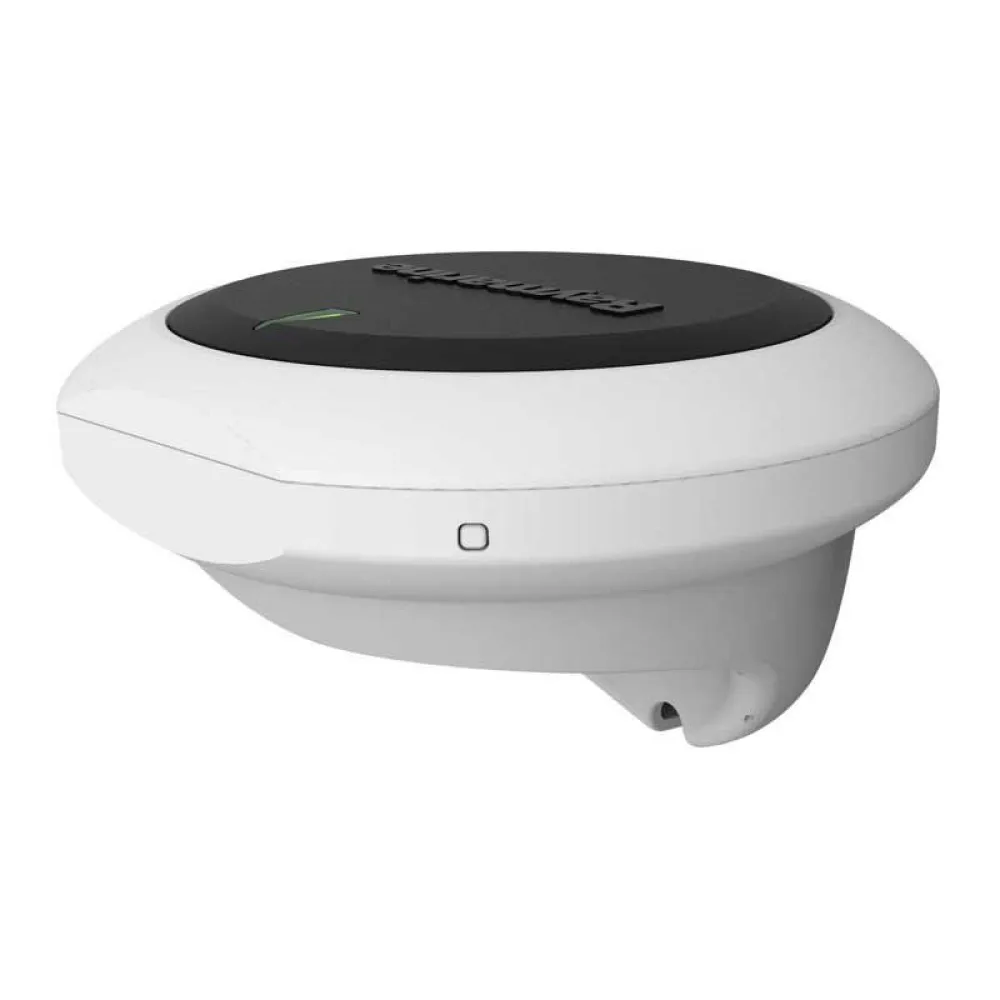

Raymarine Evolution EV2 Modules

No fuss, easy to install and robust - the Evolution autopilot combines Raymarines autopilot expertise, FLIR Systems R&D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.


Features:

- Automagic - No lengthy calibration procedures to perform. No compass calibration required. Plug and play connections
- Easy to install - Freedom from the restrictions of conventional heading sensors. EV sensor core can be installed above or below deck. Install upside-down or off the vessels centre line.
- Aerospace technology - 9-axis precision monitoring of pitch, roll, yaw and heading
- Fuel efficient - Evolution autopilots steer so accurately they will save fuel and get you to your destination faster


Specifications:

- Nominal supply voltage: 12 V (powered by SeaTalkng system)
- Operating voltage range: 10.8 V to 15.6 V dc
- Power consumption: 30 mA
- SeaTalkng LEN: 1
- Sensors: 3-axis digital accelerometer
- 3-axis digital compass: 3-axis gyro digital angular rate sensor
- Data connections: SeaTalkng
- NMEA 2000 DeviceNet (EV-2 only): Installation environmental
- Operating temperature: -20ºC to +55ºC (-4ºF to +131ºF)
- Storage temperature: -30ºC to +70ºC (-22ºF to +158ºF)
- Relative humidity: max 93%
- Waterproof rating: IPX 6
- Dimensions: Diameter: 140 mm (5.5 in) Depth (including mounting enclosure): 35 mm (1.4 in) Depth (including wall bracket): 95 mm (3.8 in)
- Weight : 0.29 kg (0.64 lbs)
- EMC compliance : Europe: 2004/108/EC
