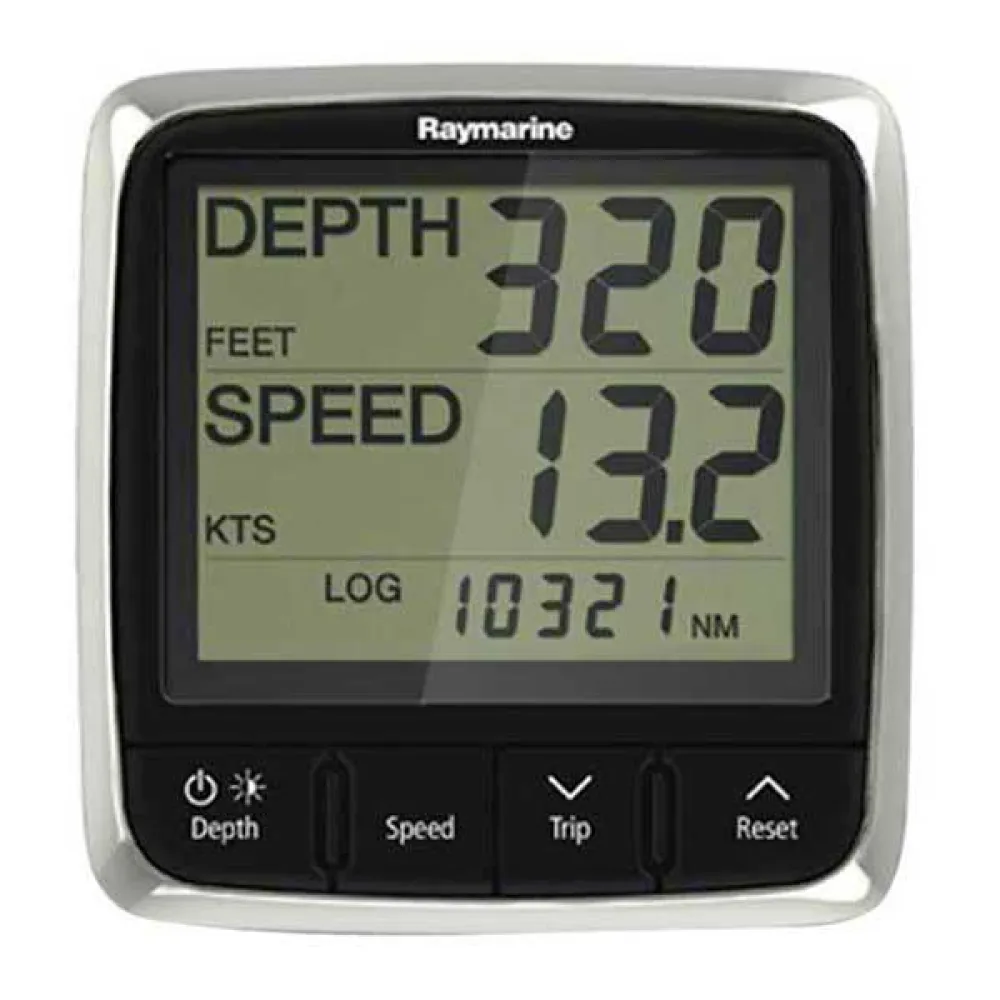

Raymarine I50 Tridata Digital Display

The Raymarine i50 Tridata gathers the functions of a slide and a depth gauge.

This provides data on depth in feet or meters, to define thresholds for shallow water alarm, depth alarm, anchor alarm both deepwater and deep.

It also provides data on both the current speed, maximum and mean and total and partial stroke in knots, miles per hour or kilometers per hour, plus water temperature (in degrees Celsius ° C or Fahrenheit ° F).

It has features and stopwatch functions.

Easy to see, easy to use All Raymarine i50 series emphasizes ease.

Is not only easy to use, it is also designed to be easy to see.

It has an excellent viewing angle from all conditions, day and night, all the data appears in the monochrome LCD screen with digits a good size, also has backlight for improved network visibility.

The push button i50 also makes it a very simple device to use and its large controls are designed for ease of use at sea.

Addition is easily mounted with its front design Compatible with e and c series The new i50 series is designed to be the perfect size for any of the MFPs series Raymarine E and C supplement.

The i50 series of three digital display the form, Depth, Speed ??and Tridata.

connectivity The Raymarine i50 can be connected to various products and systems to share information and improve the functionality of the system in general.

These connections can be made using different protocols is compatible with NMEA 2000 network connection and the SeaTalk ng (Next Generation ) network an extension of NMEA 2000, which allows the connection of nautical instruments and equipment that uses a simple node network to you can connect compatible devices using wrappers or branch network.

The i series Raymarine full range of the device i series i70 the cockpit repeaters multidato join the new series i50, i40 and i60.

four different product lines that share the same aesthetic line and the same modes with the idea that they are complementary to each other.

The i60 range to complement the i70 comes with its high-end repeater, the i50 are substitutes legendary Raymarine ST60 instruments and thinking small lengths Raymarine i40 range has, in this case replacement of the ST 40.

All these new MFPs not only can connect with each other and share their own information, they are also compatible with the series ey c.

SPECS:

- Nominal Voltage :

12V DC.

- Operating Voltage Range:

10.

- 16V DC.

- Power Consumption:

typically <1W (display only) and 2.4W maximum with transducer connected.

- Current Consumption:

45 to 65mA (display only) and 200mA maximum with transducer connected.

- Operating Temperature range:

- 20ºC to +55ºC.

- Storage Temperature:

- 30ºC to +70ºC.

- Relative Humidity:

up to 93%.

- Waterproofing standard:

IPX6.

- Connections:

2 x SeaTalkng and transducers.

- Compatible with marine industry CAN systems.

- Conformance:

Europe 2004/108/EC IN THE BOX.

- cable is not included (sold in separatly).

- i50 instrument.

- Front bezel.

- SeaTalk to SeaTalkng adaptor cable.

- SeaTalkng spur cable.

- Gasket.

- Sun cover.

- Documentation pack.

- SeaTalkng blanking plug.

- 4 x fixing screws.
