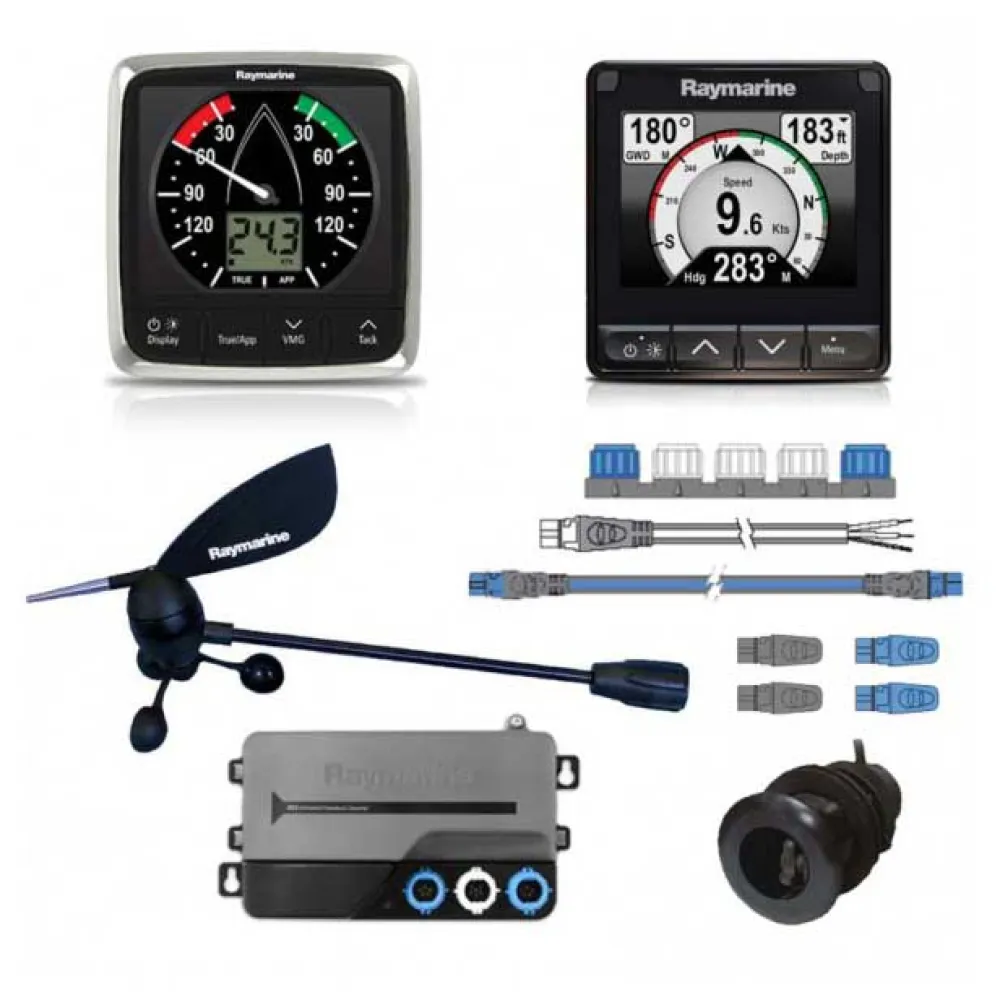

Raymarine I70s&i60 Kit Sensor

The i60 instruments are designed to complement the all new Raymarine multifunctional displays.

Designed specifically for sailboaters, these stylish, dedicated-function instruments cover wind and close-hauled wind options in analogue and digital formats.

Excellent viewing angles for both day and night conditions and simple, push-button controls make i60 instruments extremely easy to see and use.

They are also simple to install thanks to the front-mount design.

Features:

- Large numerals and digits.

- Red back lighting for enhanced night time visibility.

- SeaTalk and SeaTalkng interfaces.

- NMEA 2000 (compatible) interface.

- Built-in transducer interface.

- 110mm x 115mm footprint identical to older Raymarine ST60+ instrumentation.

- Low power consumption.

- Multiple data source support eliminates potential data conflicts.

- Front mounted design for simple installation.

Specifications:

- Nominal Voltage:

12V DC.

- Operating Voltage Range:

10.

- 16V DC.

- Power Consumption:

typically <1W (display only) and 2.4W maximum with transducer connected.

- Current Consumption:

45 to 65mA (display only) and 200mA maximum with transducer connected.

- Operating Temperature Range:

- 20ºC to +55ºC.

- Storage Temperature:

- 30ºC to +70ºC.

- Relative Humidity:

up to 93%.

- Waterproofing Standard:

IPX6.

- Connections:

2 x SeaTalkng and transducers.

- Compatible with marine industry CAN systems.

- Conformance:

Europe 2004/108/EC In the Box:

- i60 Instrument Display.

- Suncover (to match i70s, p70s, p70Rs, eS Series).

- Front bezel (to match i70s, p70s, p70Rs, eS Series).

- Gasket.

- Suncover (to match a, c, e Series).

- Front bezel (to match a, c, e Series).

- SeaTalkng spur cable.

- SeaTalkng blanking plug.

- 4 x fixing screws.

- Documentation.
