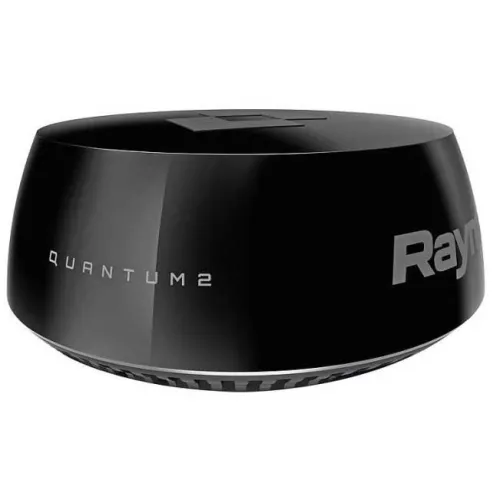

Raymarine Quantum Q24D Doppler Radar antenna

Quantum Q24D 18´´ CHIRP Radar, black, with Doppler technology to better distinguish moving objects from stationary ones. Maximum accuracy at long ranges and also at extremely short ranges.

Raymarine introduces the next generation of Quantum 2 marine radars, featuring CHIRP pulse compression for improved situational awareness at both long and extremely short ranges.

Using advanced Doppler processing, the system instantly highlights moving radar contacts and color-codes them to individually indicate whether they are approaching or receding objects. Quantum radar with Doppler makes it easier to distinguish potentially hazardous objects when navigating in busy traffic areas.

Features:

- Visualizing moving objects using Doppler allows for better perception of the situation at a glance
- Fully automatic ARPA object tracking, in addition to manual MARPA mode
- Adjustable TrueTrails object history shows the motion history of moving contacts
- CHIRP pulse compression detects contacts as close as 5.5 meters (18 feet) for navigation in low-visibility conditions
- 40 km (24 mile) range for early detection of naval traffic, navigation aids, land and weather information
- Instant perception: Quantum boots up and is ready to go in seconds
- Its exceptional interference rejection eliminates noise produced by other radars
- Simplified installation with Wi-Fi or wired connectivity
- Easy to upgrade: Quantum 2 uses the same mounting hardware as other Raymarine scanners
- Lightweight and easy to install: Quantum weighs 50% less than comparable magnetron radars
- Safe emissions: The Quantum radar can be installed in any position on board
- Low power consumption for longer battery life when sailing

Easy identification of dangerous objects:
- Raymarine´s Quantum 2 Doppler radar´s target processing easily identifies moving radar contacts, color-coding them for instant recognition and reducing the risk of collision.

Improved collision avoidance:
- The Quantum 2 radar´s MARPA system provides an easy way to track dangerous objects. Raymarine MARPA object tracking uses the same technology trusted by the U.S. Coast Guard.

How doppler radar works:
- Microwave energy is reflected off the distant object, just as with conventional radar.
- Moving objects return echoes whose frequencies are shifted up or down relative to the original transmission.
- For approaching objects, the frequency increases, since the front part of the returned echoes is received more frequently as the distance to the object decreases.
- For objects that move away, the frequency decreases, since the returned echoes become more distant in time as the distance from the object increases.
Doppler radars are designed to detect these tiny changes in wave frequency and use them to classify moving radar objects.

Object processing with doppler:
- Doppler radar is specifically tuned to detect changes in the frequency of the radar echo returned by moving objects versus objects at rest.
- The Quantum 2 then uses special color codes to mark moving objects to indicate whether they are moving closer or further away.
- Approaching objects are marked in red.
- Objects that are moving away are marked in green.
- Color-coding objects makes it easier to differentiate traffic from other fixed objects, such as navigational aids or stationary or anchored vessels.
- The Quantum 2 radar also includes fully automatic object detection and tracking. Set up custom safety or alert zones and be informed of new radar contacts entering the area. Quantum 2 can automatically begin tracking contacts, calculating their heading, speed, closest approach point, and much more. The system will alert you when a dangerous object is identified with audible alerts and easy-to-understand on-screen graphics.

Specifications:

- Radar range: Up to 24mn
- Compatible with: All Raymarine multifunction displays with LightHouse 3 operating system
- Radome diameter: 541 mm
- Dimensions: 541ø x 210 mm
- Weight: 5.60 kg
- Antenna power: 20 W
- Protection: IPX6
- Radar technology: Chirp Digital, Doppler
- Wi-Fi connectivity: Yes
- Radar antenna type: Closed
