Raymarine SeaTalk NG Network Starter Kit

RAYMARINE SeaTalk NG Network Starter Kit

Unlock the full potential of your marine electronics with the official RAYMARINE SeaTalk NG Network Starter Kit. This kit is the essential foundation for creating a reliable, robust, and expandable onboard network for your vessel. As the central nervous system for your Raymarine instruments, the SeaTalk NG system allows for the seamless sharing of critical navigation and sensor data between all your connected devices. Experience the power of a fully integrated helm, where data from your chartplotter, fishfinder, autopilot, wind instruments, and engine sensors is shared flawlessly, providing you with superior situational awareness and control.

Designed from the ground up for the demanding marine environment, the SeaTalk NG network architecture ensures dependable performance when you need it most. The plug-and-play nature of the color-coded connectors simplifies installation, reducing setup time and eliminating the guesswork often associated with complex marine electronics wiring. This starter kit provides the cornerstone for your boat´s data network, allowing you to begin with a single Raymarine product and easily expand the system in the future by simply adding more devices and cables. Achieve a clean, professional installation and the peace of mind that comes with using a system built to withstand the rigors of salt, moisture, and vibration. Whether you are building a new navigation suite around a Raymarine Axiom display or simply connecting an i70 instrument, this kit is the perfect starting point.

Features:
SeaTalkng is a robust cabling and connection system compatible with NMEA 2000, built specifically for the marine environment comprising a powered single backbone with two terminators, one at each end.

SeaTalkng Starter Kit
The SeaTalkng Starter Kit
The SeaTalkng Starter Kit is the perfect way to get started with your SeaTalkng compatible Raymarine product.

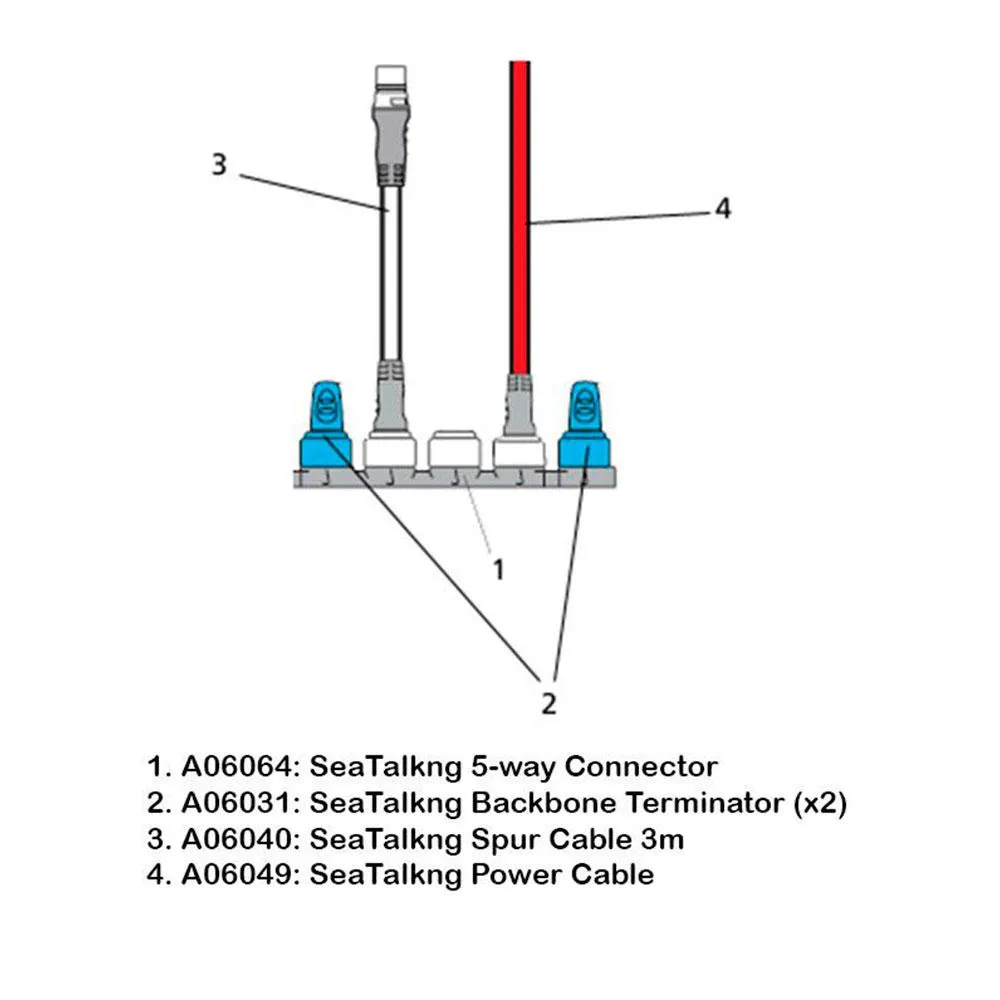

The 5-way connector forms the start of your SeaTalkng backbone and your SeaTalkng product is connected via a Spur Cable.

Starter Kit part number: T70134

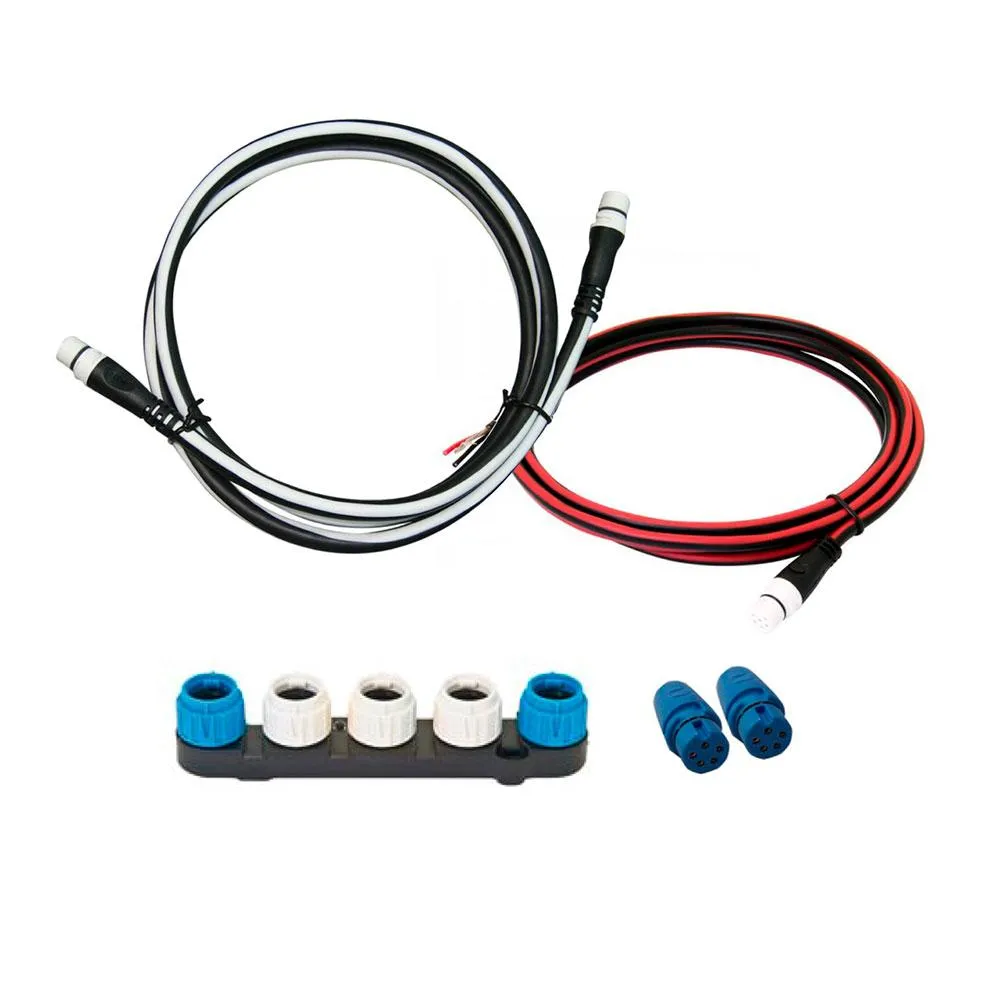

Whats in the kit?
A06064: SeaTalkng 5-way Connector
A06031: SeaTalkng Backbone Terminator (x2)
A06040: SeaTalkng Spur Cable 3m
A06049: SeaTalkng Power Cable

Cables

The SeaTalk NG system utilizes a simple yet powerful cabling hierarchy to ensure data integrity and system reliability. The primary data and power pathway is established by Backbone cables, which run the length of the network. Individual devices, such as instrument displays or sensors, are connected to this backbone using Spur cables. A dedicated Power cable is used to introduce 12V DC power to the network, energizing all connected devices through the backbone. The color-coded and keyed design of all cables ensures a secure, error-free connection every time.

Technical Specifications
* Network Protocol: Fully compliant with NMEA 2000 data standard
* System Architecture: CAN-based network technology
* Operating Voltage: 12V DC
* Durability: Marine-grade construction designed for high-vibration and high-moisture environments
* Compatibility: Seamlessly integrates with all Raymarine SeaTalk NG enabled products, including Axiom, eS-Series, and i-Series displays, autopilots, radar, and instruments
