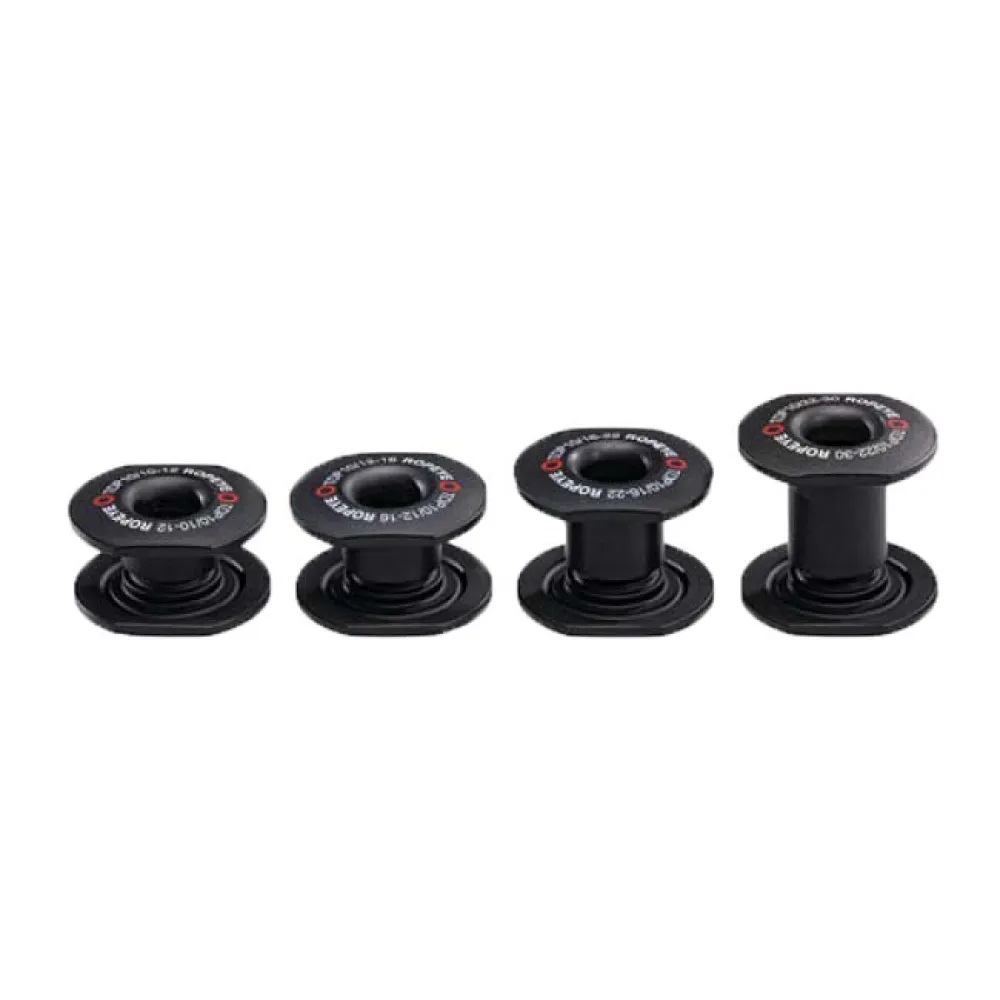

Ropeye 14/22-30 TDP bushing

ROPEYE 14/22-30 TDP Bushing | High-Strength Through-Deck Fitting

Upgrade your vessel with the revolutionary ROPEYE 14/22-30 TDP Bushing, a state-of-the-art fitting designed for the modern sailor who demands the highest standards of performance, safety, and reliability. This innovative through-deck pad-eye (TDP) solution replaces traditional, heavy metal hardware with a lightweight, incredibly strong, and completely corrosion-proof alternative. Ideal for a wide range of applications on both racing yachts and cruising boats, the ROPEYE TDP bushing is the ultimate choice for securing lines, blocks, and stays where strength and weight-saving are paramount.

Key Benefits:

* Unmatched Strength-to-Weight Ratio: Experience a significant reduction in onboard weight without compromising on load-bearing capacity. This fitting provides exceptional strength, allowing you to optimize your boat´s performance, whether you are racing around the buoys or embarking on an offshore passage.
* Enhanced Onboard Safety: The smooth, low-profile design sits nearly flush with the deck, minimizing trip hazards and snag points. By eliminating hard metal edges, it creates a safer environment for the crew and protects sails and lines from chafe and damage.
* Absolute Durability and Watertight Integrity: Say goodbye to corrosion, leaks, and deck stains. The construction of the TDP bushing ensures it will never rust or degrade from exposure to saltwater and UV rays. When installed correctly with a suitable sealant, it provides a completely watertight seal, protecting your deck core from moisture intrusion.
* Silent and Versatile Operation: Enjoy a quieter sail. This fitting operates silently, ending the constant clanking associated with metal-on-metal hardware. Its design is perfectly optimized for use with modern soft shackles and rope loops, offering unparalleled versatility for applications such as barber haulers, preventers, tack lines, stays, and general tie-down points.

Main Features:

* Engineered as an integrated Through-Deck Pad-eye (TDP) system for superior load distribution.
* Features a smooth, low-friction internal finish, specifically designed for seamless integration with soft shackles and high-tech rope loops.
* A clean, ultra-low-profile deck finish that prevents lines and sails from snagging.
* Designed for a straightforward and secure installation process, creating a robust and reliable connection point.

Screws and Installation:

The ROPEYE 14/22-30 TDP bushing is designed for a secure, flush-mount installation. It requires three (3) countersunk M6 screws (not included) to fasten it firmly to the deck. The use of a high-quality marine-grade sealant is essential during installation to ensure a permanent, watertight bond that protects the integrity of your deck structure.

Technical Specifications:

* Model: ROPEYE 14/22-30 TDP
* Maximum Working Load (MWL): 1500 kg
* Breaking Load (BL): 3000 kg
* Recommended Deck Thickness: 22 mm to 30 mm
* Drill Hole Diameter: 14 mm
* Flange Diameter: 46 mm
* Screws Required: 3 x M6 Countersunk (not included)
* Product Weight: 28 g
