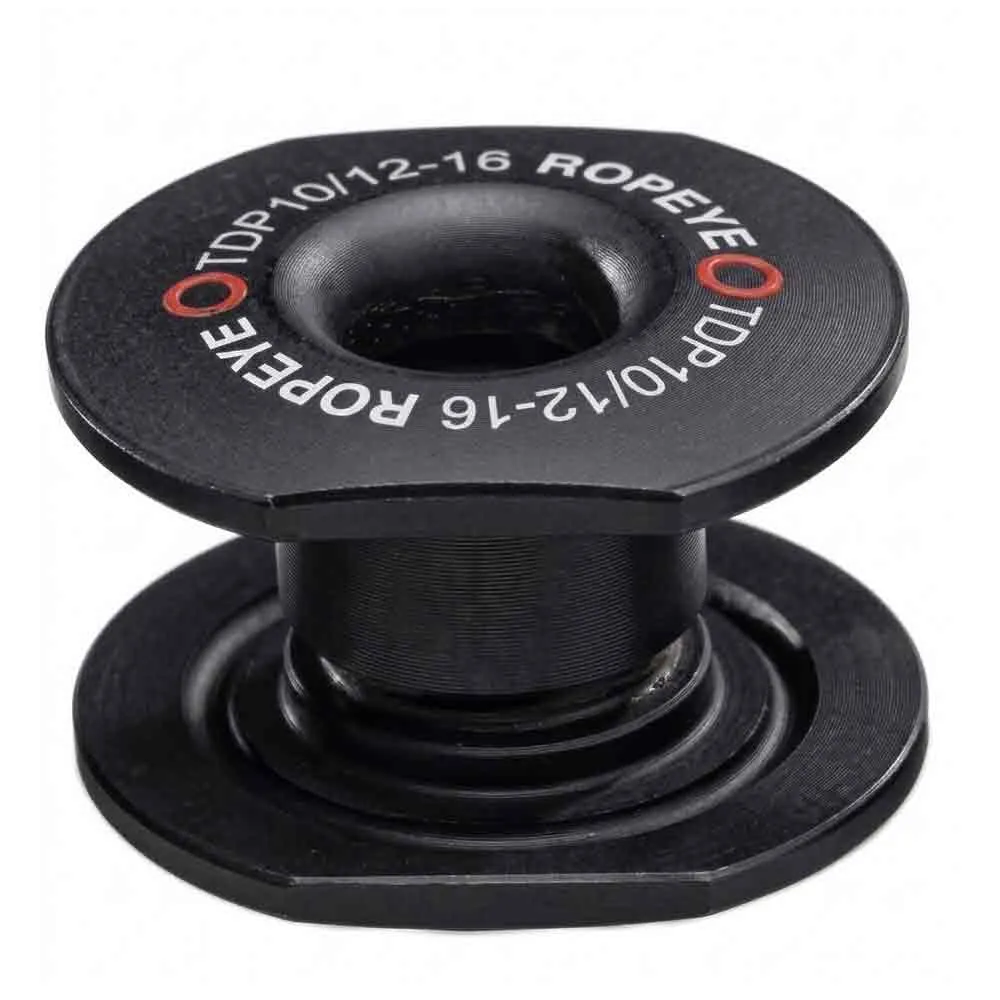

Ropeye TDP 10/12-16 through deck support

ROPEYE TDP 10/12-16 Through Deck Support | High-Strength, Lightweight Deck Fitting

Elevate your vessel´s performance and reliability with the ROPEYE TDP 10/12-16, a state-of-the-art through deck support designed for the modern sailor. This innovative deck fitting is the ultimate solution for securely routing and transferring high loads from your deck to the boat´s underlying structure. Engineered for both racing yachts and cruising vessels where strength-to-weight ratio is paramount, the TDP 10/12-16 provides a robust, clean, and exceptionally efficient anchor point for a variety of sailing applications. Its sophisticated design ensures a seamless integration with your deck, offering a low-profile and snag-free surface that maintains clean lines and enhances safety for the crew.

Experience a new standard in deck hardware. The primary benefit of the TDP 10/12-16 lies in its ability to distribute immense stress loads effectively, preventing deck damage and ensuring your rigging remains secure even under the most demanding conditions. The unique internal geometry is meticulously crafted to guide lines smoothly, minimizing friction and wear, which extends the life of your running rigging. Furthermore, its installation process is designed for absolute watertight integrity, providing peace of mind by creating a perfect seal that protects your boat´s core from water intrusion. Move beyond traditional, heavy metal fittings and embrace a lighter, stronger, and more elegant solution that contributes to your boat´s overall performance.

This through deck support is distinguished by its unique features. It is specifically engineered to function as a unified system with ROPEYE´s acclaimed Loop products, creating a powerful and lightweight connection. The TDP 10/12-16 Supports ROPEYE Loops with a 10 mm and 12-16 mm diameter, offering versatility for various load requirements. Its intelligent design acts as a secure ´through-deck funnel,´ perfectly guiding the loop and allowing it to be terminated below deck. This method ensures that the load is transferred directly to the structural components of the hull or internal framework, bypassing stress on the deck itself. The external finish is smooth and unobtrusive, reducing the risk of lines, sails, or crew getting caught, a critical safety feature during high-speed maneuvers.

Technical Specifications:

* Model: TDP 10/12-16
* Safe Working Load (SWL): 2500 kg
* Breaking Load (BL): 5000 kg
* Weight: 79 g
* Compatible Loop Diameter: 10 mm and 12-16 mm
* A (Top Flange Diameter): 60 mm
* B : 36 mm
* C (Hole Diameter): 30 mm
* D (Tube Outer Diameter): 29.5 mm
* E (Mounting Hole Diameter): 6.5 mm
* F (Mounting Hole Center-to-Center): 44 mm

Choose the ROPEYE TDP 10/12-16 for an uncompromising upgrade to your boat´s fitting system. It is the ideal choice for applications such as barber haulers, tack lines, tweakers, lazy jacks, and other control line systems where superior strength and minimal weight are non-negotiable
