Samlex IDC-360A-24 Converter 15A

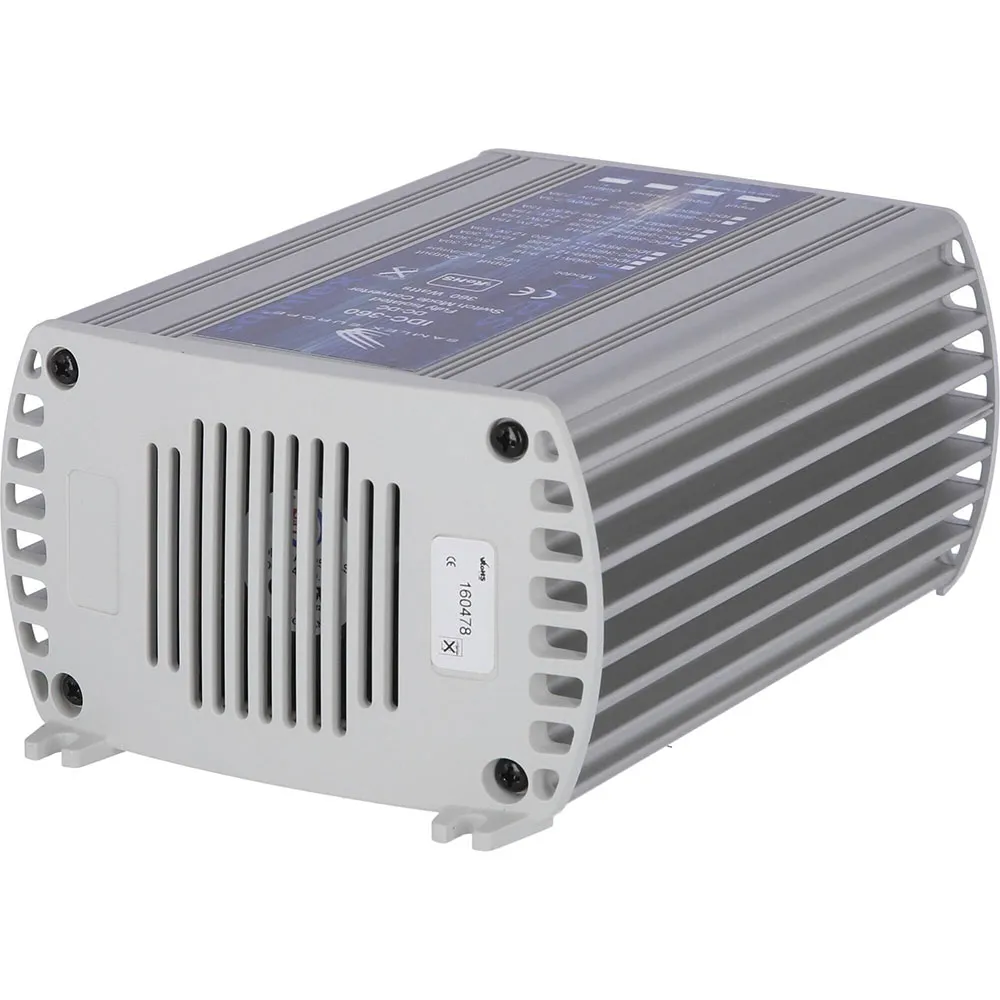

SAMLEX IDC-360A-24 Isolated 24V to 12V DC-DC Converter | 15A

Effortlessly and safely power your 12 Volt electronics from a 24 Volt power system with the SAMLEX IDC-360A-24 Isolated DC-DC Converter. Expertly engineered for reliability in the most demanding environments, this step-down converter is the definitive solution for commercial trucks, heavy equipment, recreational vehicles (RVs), marine vessels, and transit buses. When you need clean, stable, and protected 12V power for sensitive equipment like GPS units, communication radios, stereos, refrigerators, or lighting, the IDC-360A-24 delivers unparalleled performance and peace of mind.

Built upon Samlex’s legacy of robust power conversion technology, this unit stands apart with its advanced design. The primary benefit lies in its complete galvanic isolation, which electrically separates the 24V input from the 12V output. This critical feature prevents dangerous ground loops, protects sensitive connected electronics from voltage spikes and interference, and significantly enhances overall system safety, especially in marine and mobile applications.

The IDC-360A-24 utilizes advanced switch-mode technology, making it remarkably efficient, compact, and lightweight compared to older, bulkier linear converters. This high efficiency translates to less wasted energy and minimal heat generation. Its fanless, convection-cooled design ensures completely silent operation, eliminating the distracting hum of a cooling fan—a crucial advantage for cabins, living quarters, and quiet-work environments. This converter is designed for continuous duty, providing a steady 15 Amps of current to reliably run your devices, with the capacity to handle intermittent peak loads up to 18 Amps.

Key Features:

* Stable Power Conversion: Accepts a wide input voltage range of 20 to 35 VDC and provides a clean, regulated 13.8 VDC output, ideal for all standard 12V nominal equipment.
* High Current Capacity: Delivers a powerful 15 Amps of continuous output current and a peak output of 18 Amps to handle device start-up surges.
* Galvanic Isolation: Input and output are fully isolated to ensure safety, prevent ground loops, and protect sensitive loads from input-side electrical noise and faults.
* Comprehensive Protection Suite: Features a robust set of safety circuits, including protection against short circuits, overheating, and over-voltage, safeguarding the converter and your valuable connected electronics.
* Advanced Switch-Mode Design: Ensures high efficiency (typically >85%), reducing heat and energy consumption for optimal performance.
* Silent Fanless Operation: Employs passive convection cooling, resulting in zero noise and increased reliability with no moving parts to fail.
* Compact and Durable: A lightweight, small-footprint design combined with a rugged casing makes it easy to install in tight spaces and resilient enough for mobile environments.
* Certified and Reliable: Engineered to meet rigorous safety and performance standards, including the CE mark for quality assurance.

Choose the SAMLEX IDC-360A-24 when failure is not an option. It is more than just a converter; it is an investment in the stability, safety, and longevity of your entire 24V mobile electrical system. Power your essential 12V devices with the confidence that comes from a trusted, world-class brand in power conversion
