Samlex Voltage amplifier 20A 12-24V

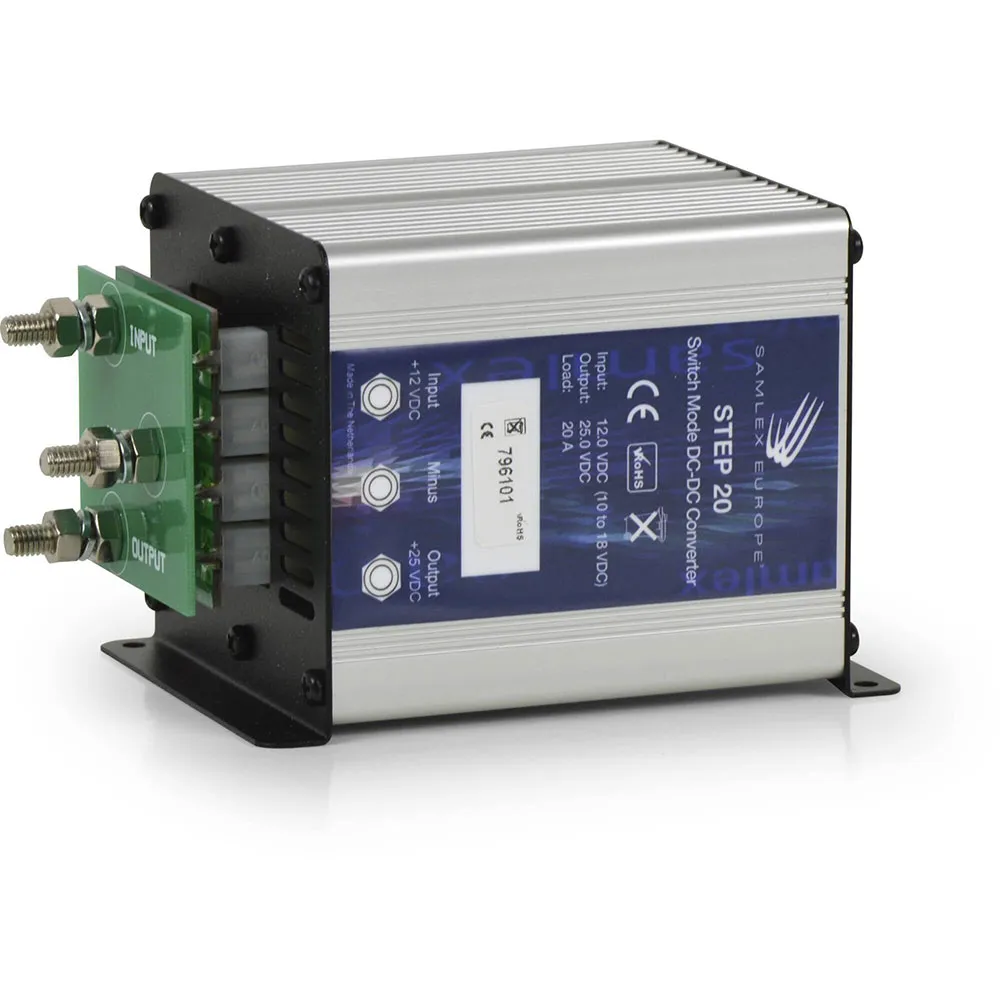

SAMLEX SDC-20 Step-Up DC-DC Converter 20A | 12V to 24V Voltage Amplifier

Power your high-demand 24VDC electronics from a standard 12VDC system with the unparalleled reliability of the SAMLEX SDC-20 Step-Up Voltage Converter. Engineered for performance and durability, this device is the ultimate solution for commercial, industrial, and recreational applications where stable and efficient power conversion is critical. Whether you´re outfitting a heavy-duty truck, a marine vessel, an RV, or a bus, the SDC-20 ensures that your 24V equipment—such as communication radios, navigation systems, lighting, and audio equipment—receives clean, consistent power without compromising the integrity of your 12V source.

The SDC-20 stands out in the field of DC-DC Amplifiers and converters by utilizing an advanced switch-mode design. This technology provides exceptionally high efficiency, translating to less energy wasted as heat and more power delivered to your devices. Its robust construction and comprehensive protection features offer complete peace of mind, safeguarding both the converter and your valuable electronics from common electrical issues. This compact and lightweight unit is designed for easy integration into any setup, providing a professional-grade power solution that you can set and forget. Choose SAMLEX for a seamless and dependable bridge between your 12V battery system and 24V appliances.

Key Benefits & Applications:

* Seamless Power Conversion: Effortlessly steps up a 10-15 VDC input to a stable 24.4 VDC output, making it ideal for running 24V equipment in vehicles and boats equipped with 12V batteries.
* Superior Efficiency: The advanced switch-mode circuit design ensures an efficiency rating of over 91%, minimizing energy loss and reducing heat generation for enhanced reliability and a longer service life.
* Comprehensive System Protection: Fully protected against short circuits, overloads, and reverse polarity on the input. This robust safety net prevents damage to both the converter and your connected devices.
* High-Current Capability: Delivers a powerful 10A of continuous output current, with the ability to handle intermittent loads up to 20A, providing ample power for demanding electronics and motors.
* Versatile and Robust: Designed for a wide range of applications including commercial trucks, buses, RVs, marine vessels, and remote telecommunications sites where dependable power conversion is essential.

Main Features:

* Advanced high-efficiency switch-mode design
* Reverse polarity input protection
* Short circuit and overload protection
* Over-voltage protection on the input
* Compact, lightweight, and high-performance
* Convection cooled for silent, reliable operation
* CE and UKCA certified for safety and quality assurance

Technical Specifications:

* Model: SDC-20
* Input Voltage: 10 - 15 VDC
* Output Voltage: 24.4 VDC
* Input Current at No Load: < 30 mA
* Output Current (Continuous): 10 A
* Output Current (Intermittent, 2 min max): 20 A
* Efficiency: > 91%
* Line Regulation: 0.2%
* Load Regulation: 0.3%
* Protections: Reverse Polarity (Input), Short Circuit (Output), Overload, Over-Voltage (Input)
* Dimensions (L x W x H): 155x88 x 49 mm | 6.1" x 3.5" x 1.9"
* Weight: 0.52 kg | 1.15 lbs
