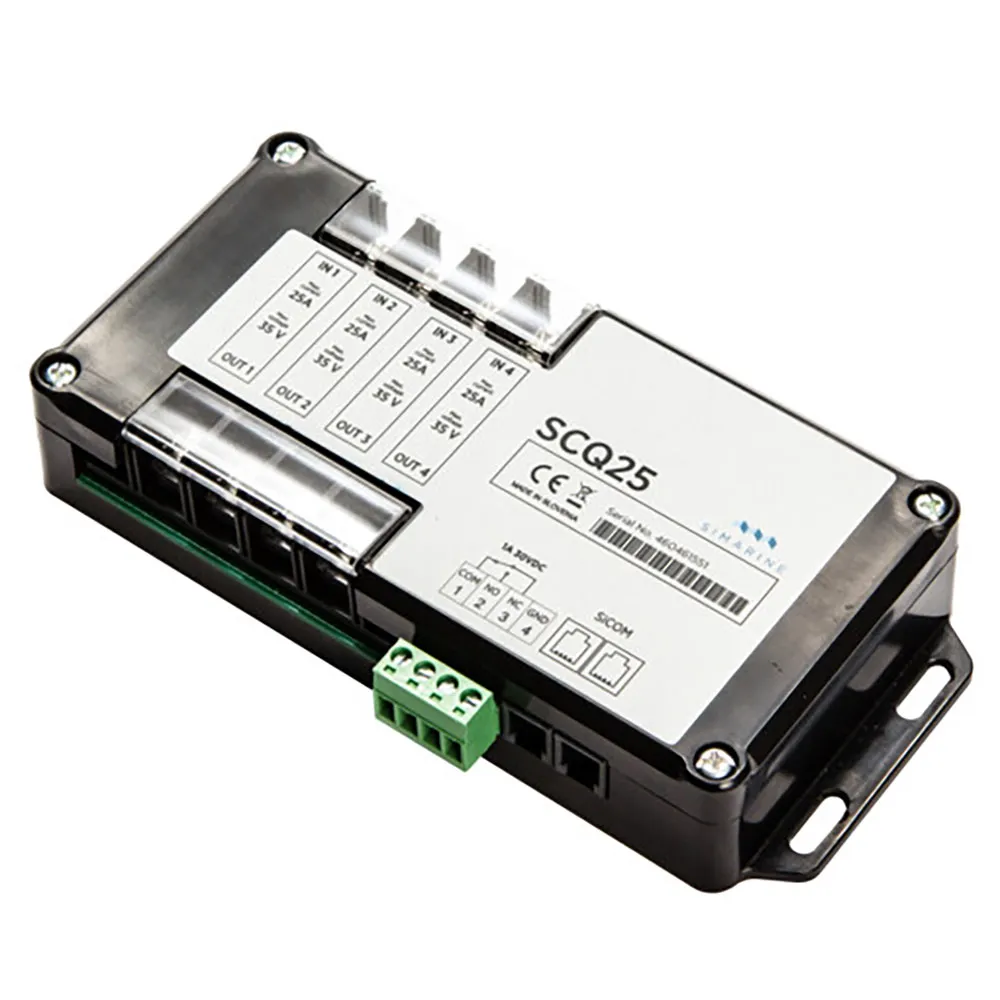

Simarine SCQ25 4x25A Shunt Module

SIMARINE SCQ25 4x25A Digital Shunt Module | Precision Current Monitoring

Gain an unparalleled level of control and a crystal-clear overview of your 12V or 24V electrical system with the SIMARINE SCQ25 Digital Shunt Module. As a crucial component in the category of Electronics and subcategory of Electrical Connections, this advanced device moves beyond simple battery monitoring to provide detailed, real-time data on individual power consumers and generators. It is engineered for boat owners, RV enthusiasts, and anyone managing a sophisticated off-grid power system who demands accuracy and comprehensive insight.

The SCQ25 is an innovative shunt module designed with four independent inputs, allowing for the precise monitoring of individual consumers and generators. Each of the four current sensors can measure continuous currents up to 25A (with a 35A peak) on both 12V and 24V systems. This capability is exceptionally convenient for tracking the power consumption of smaller yet vital appliances like a refrigerator, freezer, or navigation electronics. Simultaneously, it can monitor the real-time output from various charging sources, including solar panels, wind turbines, hydro generators, or a shore power connection. With the SCQ25, you can stop guessing and start knowing exactly where every amp of your power is going and coming from, enabling smarter energy management and troubleshooting.

For applications that demand the monitoring of higher-power devices, the SIMARINE SCQ25 offers outstanding flexibility. The current channels can be combined to handle larger loads, meaning the continuous currents on the combined channels can be monitored up to 50A (with a 70A peak) on both 12V and 24V systems. This adaptability ensures the module can grow and conform to the evolving demands of your electrical system.

Installation and integration are significantly streamlined thanks to the SCQ25’s innovative protected architecture. This unique design allows for wiring on either the negative (low) or positive (high) side of your DC circuit. This feature provides greater installation flexibility, simplifies the wiring process, and makes it easier to integrate into both new and pre-existing electrical setups.

Modules

As a core element of the expansive SIMARINE PICO Battery Monitor ecosystem, the SCQ25 is designed for complete modularity and scalability. Its true power is unleashed when connected to a PICO display, feeding it granular data for a complete system overview. To build a truly comprehensive monitoring solution, up to five SCQ25 modules can be connected simultaneously to a single PICO Battery Monitor. This allows for the detailed and individual monitoring of up to 20 different current channels, giving you a total command center for your entire vessel or vehicle´s power grid. This modular approach ensures your monitoring system is not only powerful but also future-proof.

Technical Specifications:

* System Voltage: 12V and 24V compatible
* Current Monitoring (per channel): Up to 25A continuous, 35A peak
* Current Monitoring (channels combined): Up to 50A continuous, 70A peak
* Number of Inputs: 4
* Weight: 0.3 kg
* Dimensions: 10 × 5 × 3 cm
